Ecolab EcoAdd

13.7 Dimensions
13.7.1
Mounting plate

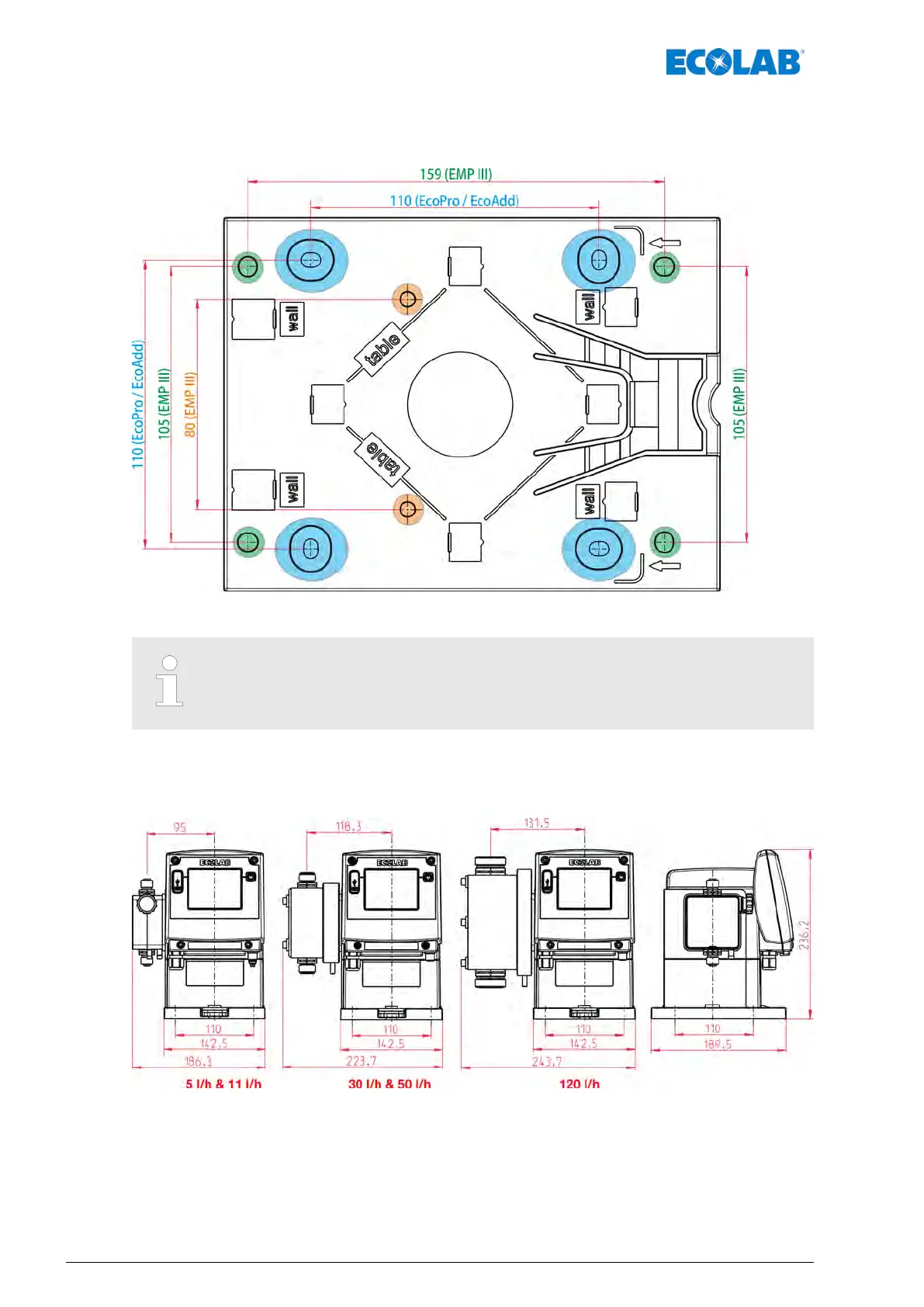

Fig. 123: Dimensions ‘Mounting plate’
As the dimensioned diagram shows, the mounting plate shown can be used for
both the ‘EcoPro’ and ‘EcoAdd’, as well as for the pumps in the ‘EMP II’
and ‘EMP III’ series.
13.7.2 Metering pump EcoPro
Fig. 124: Dimensions ‘EcoPro’
Technical data
190Rev. 2-05.2018
