7.8.4 [Operating mode] [T
imer]
In the Timer operating mode, the runtime and standstill times of the pumps are determined
by the adjustable time spans. There are two different program types for selection here.
In the seven-day programme, up to seven metering times can be set per weekday.
Switch-on time, metering duration and metering capacity can be individual selected for
each metering time.
With the interval programme, the pump works with a continuously repeating sequence of
set switch-on duration and switch-off duration.
The following timer settings can be selected:
n ‘Seven-day programme’:
Ä
Chapter 7.8.4.1 ‘[Operating mode] - [Timer] [Seven-day programme]’ on page 80.
With the ‘Seven-day programme’, metering starts at selected metering times.
Y
ou can select seven metering times per weekday, and the metering duration
and metering capacity for each metering operation separately.
n ‘Interval programme’:
Ä
Chapter 7.8.4.2 ‘[Operating mode] [Timer] [Select interval programme]’
on page 82.
With the ‘Interval programme’, the pump runs and pauses for the set pulse
duty factor and interruption durations.
The pump repeats the process continually and you can select the switch-on
time, switch-off time and metering capacity
.
7.8.4.1 [Operating mode] - [T
imer] [Seven-day programme]

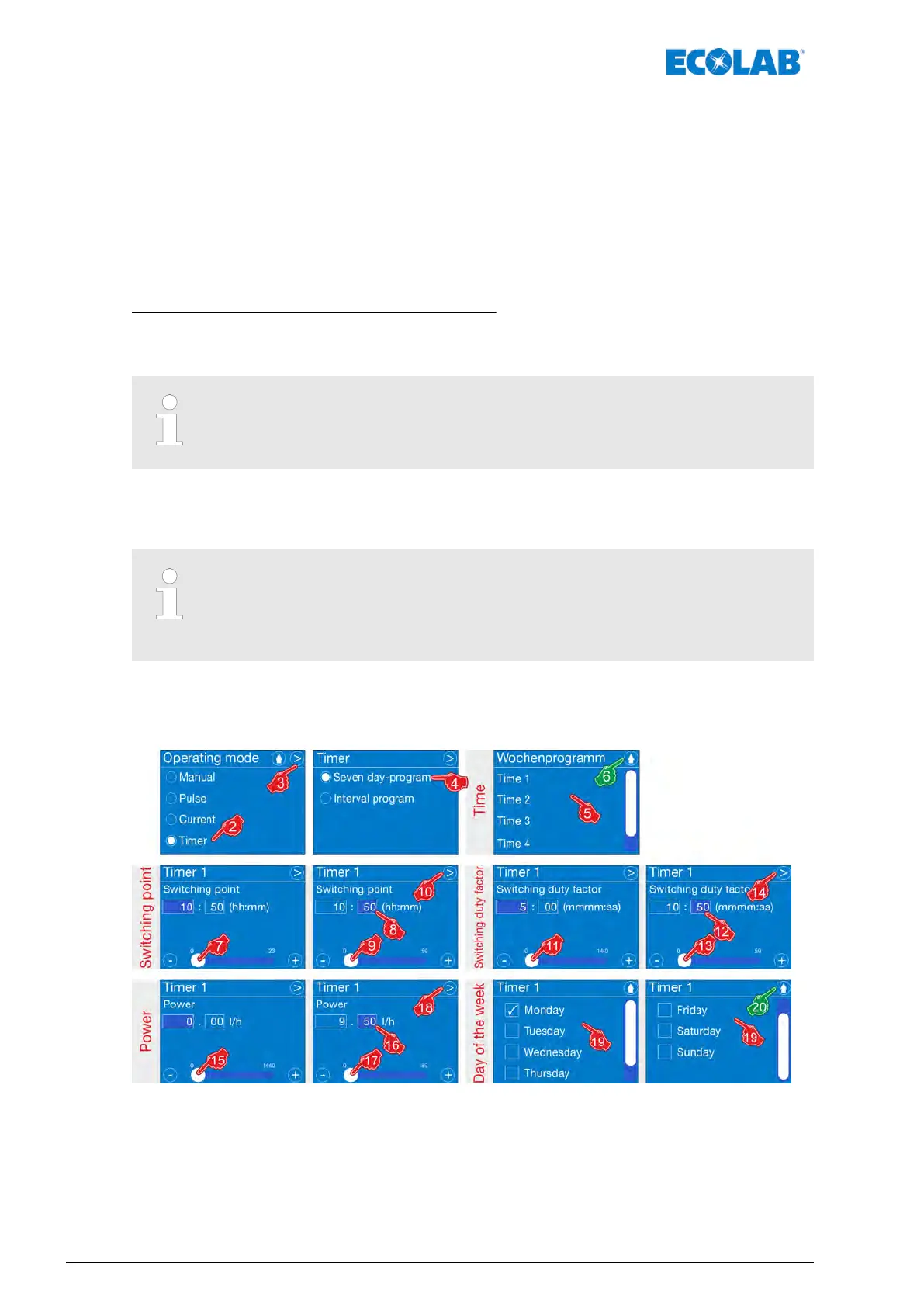

Fig. 41: [Timer] [Seven-day programme]
Control / software
80Rev. 2-05.2018
