6.3.4 Electrical installation
Personnel:
n
Qualified electrician
DANGER!
Risk of electric shock
Pay attention to disconnect the power supply immediately and to secure
against accidental switch-on!

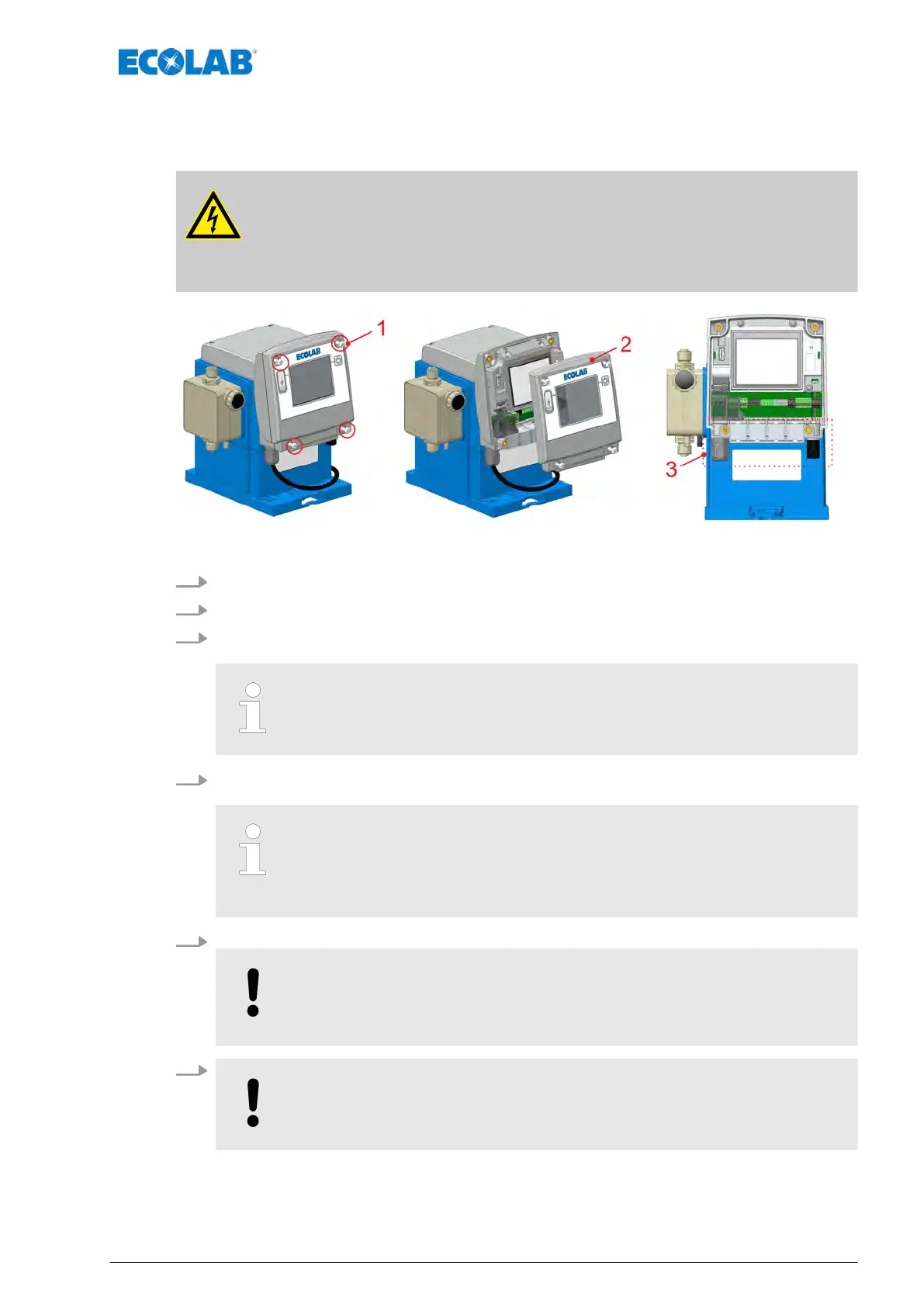

Fig. 16: Electrical installation ‘EcoAdd’
1. Remove all four housing screws.
2. Remove the front cover
.
3. T
o connect additional external enable signals, route the connector lines through the
clamping cube.
The mains cable is already installed at the factory.
4. Complete electrical installation
Ä
Chapter 6.3.4.1 ‘Terminal assignment’ on page 52.
Permissible external cable diameters for connecting the inputs/outputs:
AD Ø = 5.1-5.7 mm. LIYY 4 x 0.5; LIYY 5 x 0.34; L
YCY 2 x 0.34
Permissible cables: Ölflex 4 x 0.5
The IP65 is applicable only when the specified cable is being used.
5. After electrical installation has been completed, fit the cover back onto the housing.
NOTICE!
Make sure that the seal is free of dirt to ensure that it seals the system
properly
.
6.
NOTICE!
Tighten all four housing screws (Pos. 1) "by hand".
Assembly, installation, modification and upgrades
51 Rev. 2-05.2018
