Step 2: [Operating Mode] - [Power] :

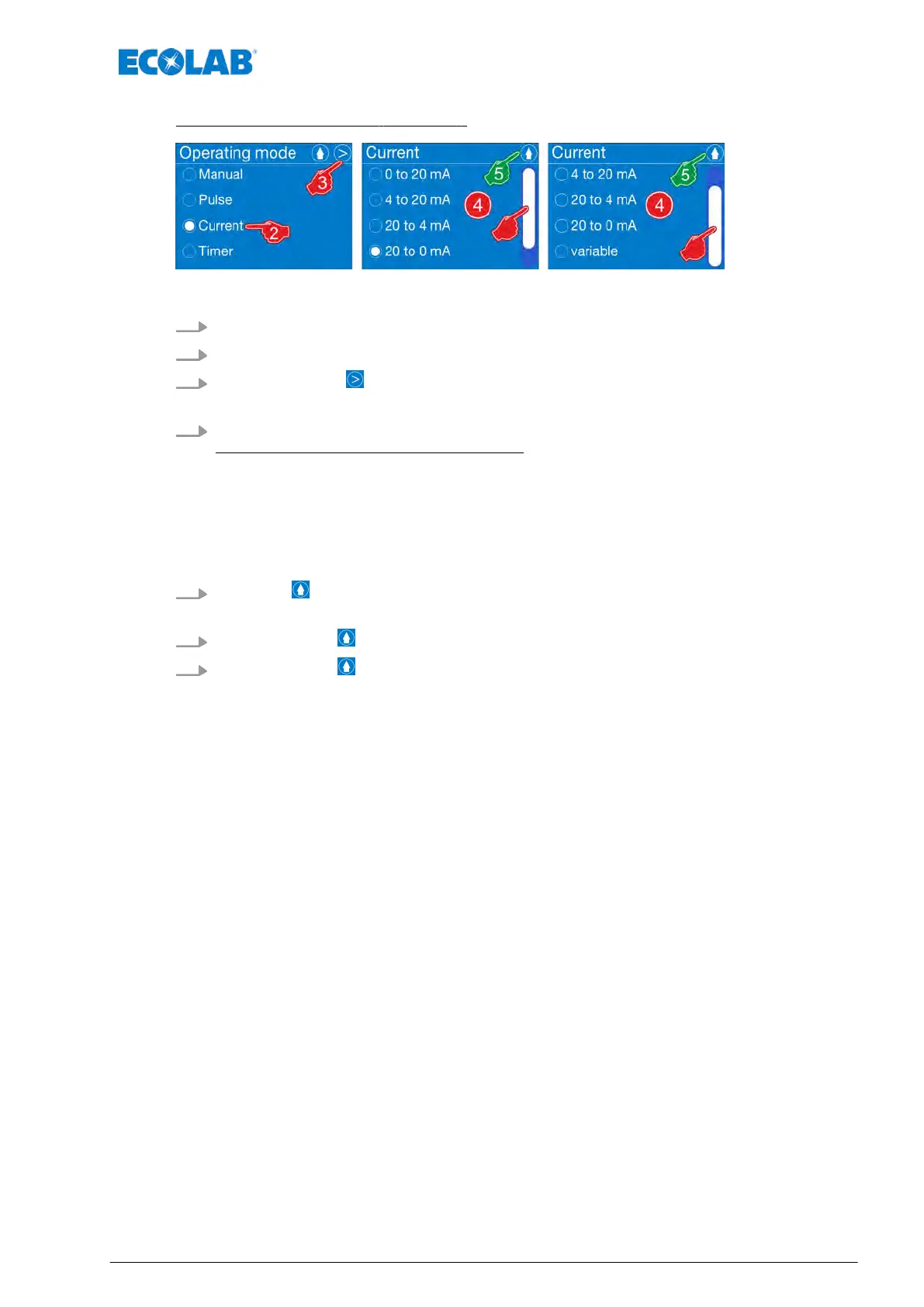

Fig. 87: Operating Mode: Power
1.
[Call up Main menu] :
Ä
Chapter 7.6 ‘Main menu’ on page 66
2. [Select Operating Mode] - [Power] .
3.
[ Press the Next] button.
ð
Screen change for the current setting:
4. ‘Select the current range’ :
The following ranges can be selected:
n 0 to 20 mA
n 4 to 20 mA
n 20 to 4 mA
n 20 to 0 mA
n variable
Ä
Chapter 8.3.1 ‘[Operating mode] [Power] [variable]’ on page 132
5.
Press the button.
ð
Settings are saved, and the screen returns to the overview: [Operating Mode].
6.
By pressing the button, you can return to the [Main menu].
7.
By pressing the button, you can return to the [operating display].
Commissioning
131 Rev. 2-05.2018
To Next Page
