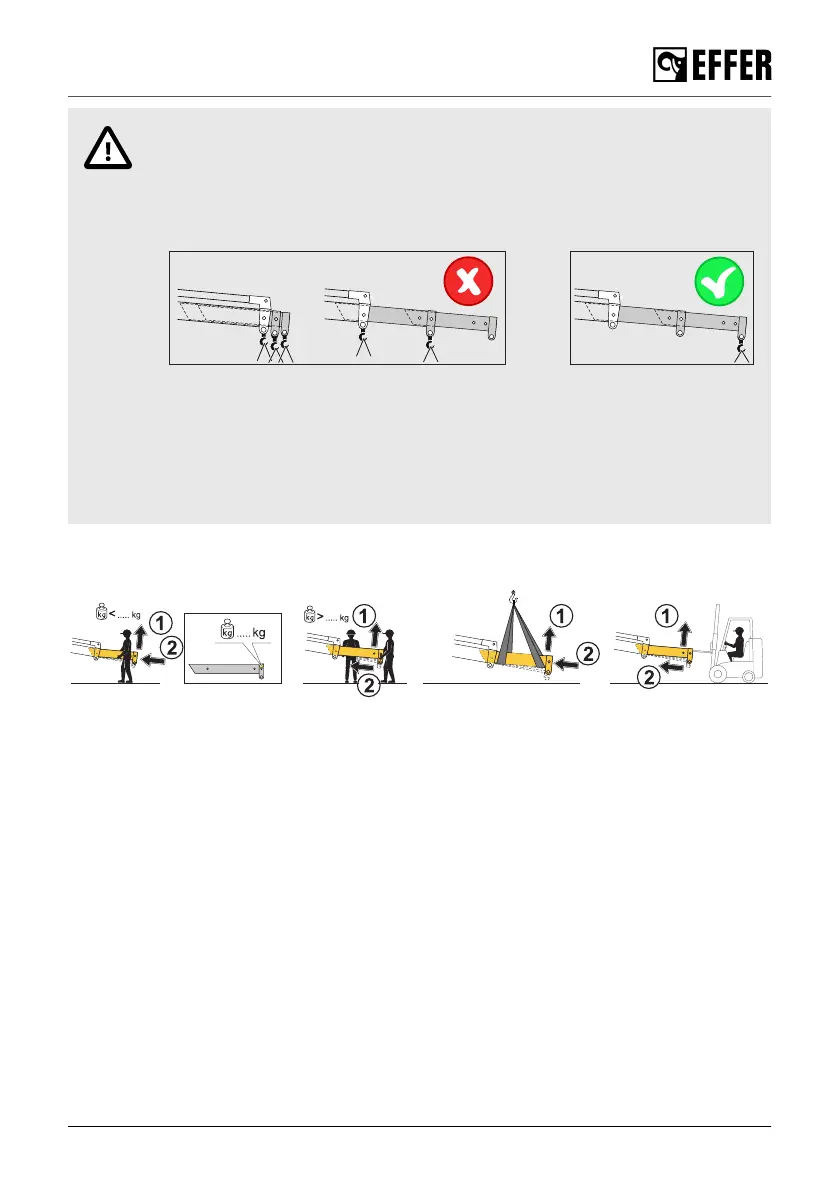

CAUTION
To prevent a safety risk and to get the maximum performance on the crane:
• You must always attach the load to the last extension.
• Never attach the load to an extension which has other extensions included
inside it.
How to assemble and disassemble the manual extensions:
Select the correct lifting device according to the weight of the extension.
Assembly procedure:
1. Operate the hydraulic extension a small distance below the horizontal.
2. Slightly incline the manual extension (1) and insert it (2).
3. Align the holes in both extensions and lock the extensions with the locking pins and the locking
shafts (A).
4. Repeat the same operation if you have more than one manual extension.
During operation
EFFER 265-315-395-525 Progress 2.0 CE 117
