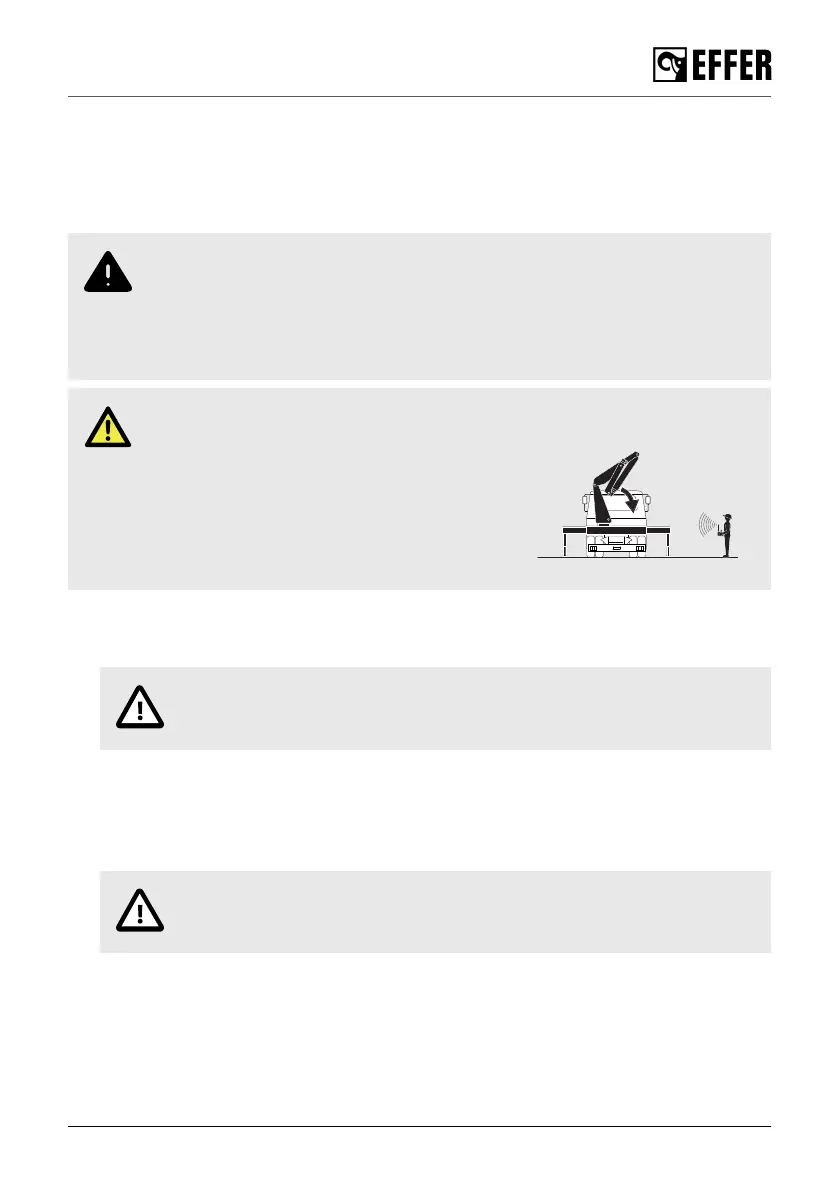

7. Ending crane operation
7.1. Operate the boom system into transport position
WARNING
• A crane with add-on equipment can differ from the operations described in this
section.
• For this reason, study the operating instructions for any add-on equipment
carefully.
DANGER
• With remote controlled cranes, stay in a
safety area while the boom system is
moving.
• We recommend that you do these
operations slowly or use the option for
reduced speed.
7.1.1. Operate the boom system
1. Retract the extensions completely (1).
CAUTION
The extensions might not retract in sequence.
2. Raise the 1st boom (2) until the boom deployment assistance allows you to fold the 2nd boom
or β>45º.
3. Slew the crane to the parking position. Verify that the yellow arrows signs (A) on the column
and on the base are aligned.
4. Operate the 2nd boom against the 1st boom (3) .
CAUTION
Be very careful not to cause damage to the slewing motors.
Ending crane operation
EFFER 265-315-395-525 Progress 2.0 CE 123
