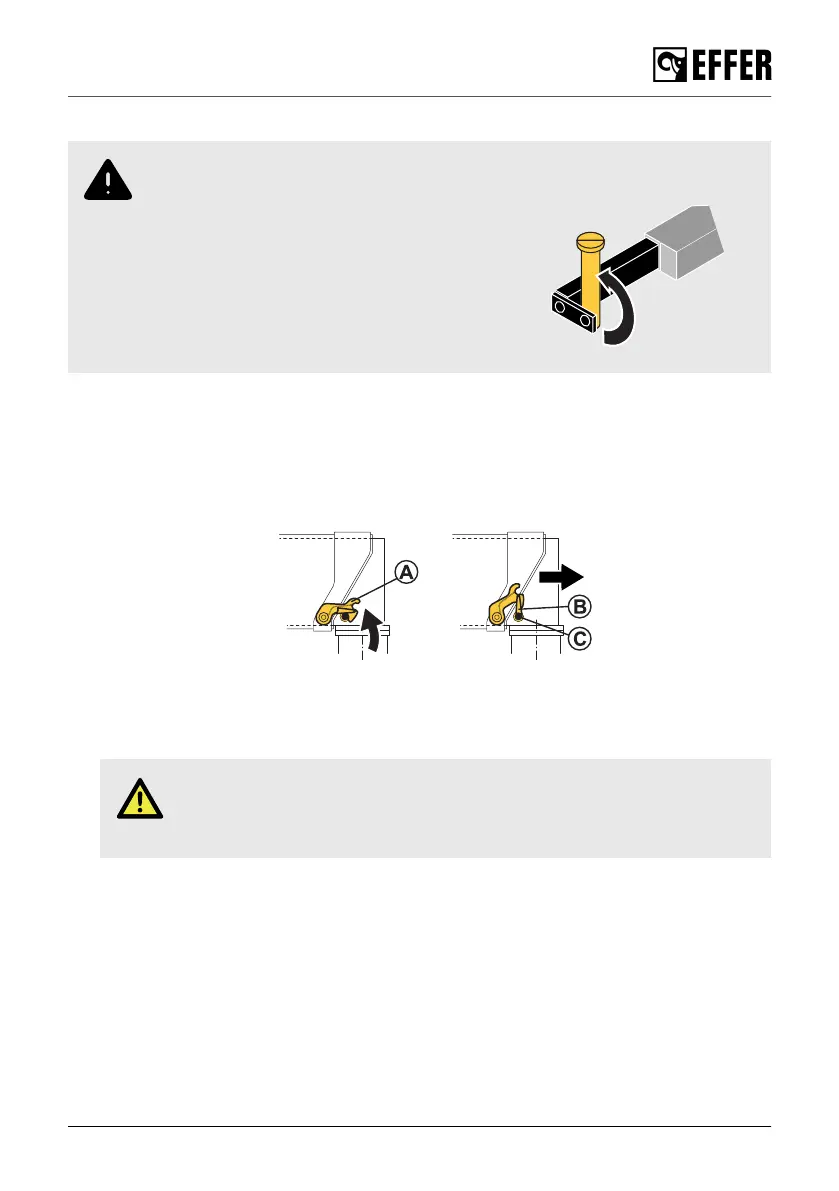

5.2.3. Extend the stabiliser extensions
WARNING
If your crane has tiltable stabiliser legs,
always operate the tiltable stabiliser leg
against the stabiliser extension before
extending the stabiliser extension.
The procedure of setting the crane and auxiliary [option] stabiliser extensions differs depending on
the type of stabiliser extensions. Repeat the instructions for the stabiliser extension(s) on the other
side of the vehicle.
Hydraulically controlled stabiliser extensions
1. Move the stabiliser locking device (A) up, put reference (B) on pin (C) as shown in the picture.
(If fitted)
2. Lift up and move the selector (V) to 'STAB' mode on the controller.
3. Push the timed button that is on the same side.
4. Extend the stabiliser extensions with the levers on the controller depending on your crane
configuration.
DANGER
Do not stand in front of the hydraulically operated stabiliser extensions when
you are operating them!
5. For a complete extraction, stop when you see the coloured strip on the extension.
Starting crane operation
EFFER 265-315-395-525 Progress 2.0 CE 87
