6. During operation
6.1. Features
The control system provides a large number of features. Certain features are standard, others are
options.

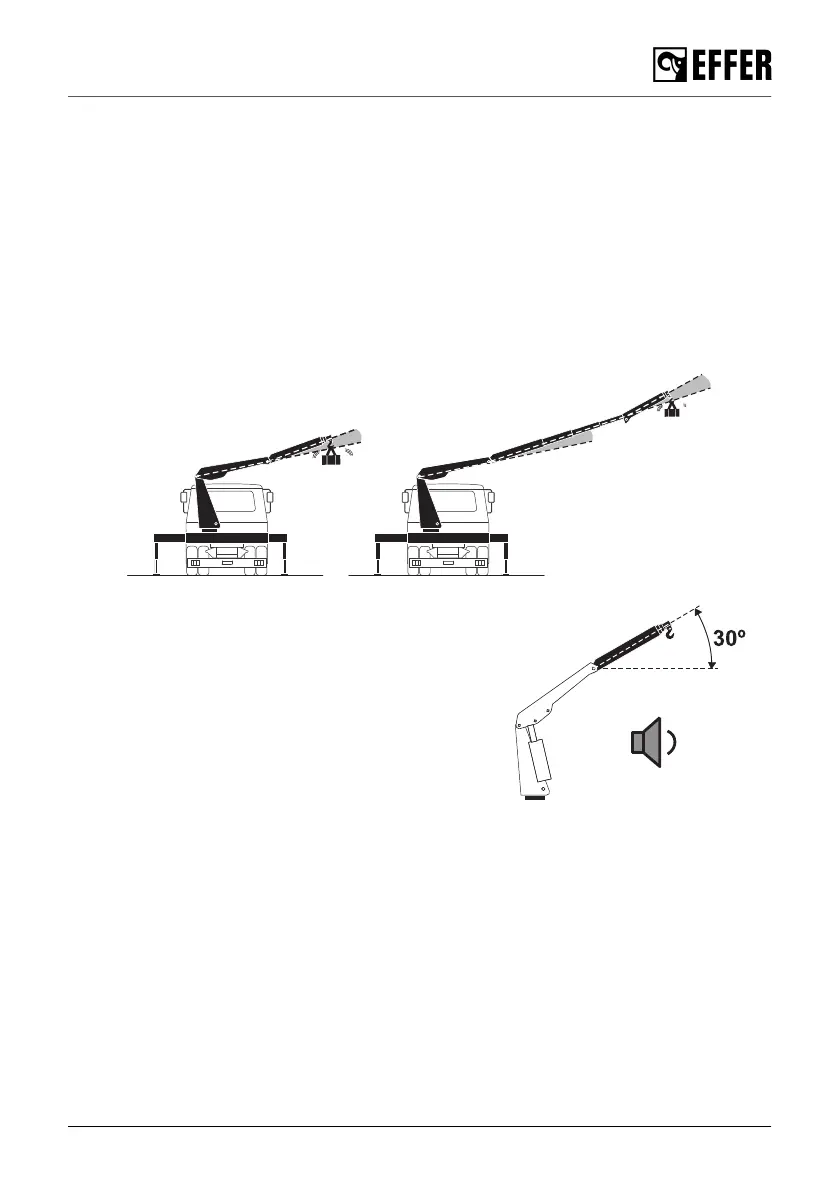

6.1.1. MAX boom elevation (tipping)
This feature allows the 2nd boom and the JIB to reach a greater alignment in relation to the
previous boom or extension.
• 2nd boom tipping check
The 2nd boom can tip in relation to the 1st boom.
When the 2nd boom goes beyond a 30° angle, the
system emits a single sound. The movements blocked
by the load limiter vary according to the 2nd boom
angle.
If the 1st boom is moved to the max vertical
position when the 2nd boom is in tipping position,
the system blocks the lifting movement when the 2nd
boom reaches a verticality of approximately 80° (max
verticality).
