2.6. Operating system - hydraulic components

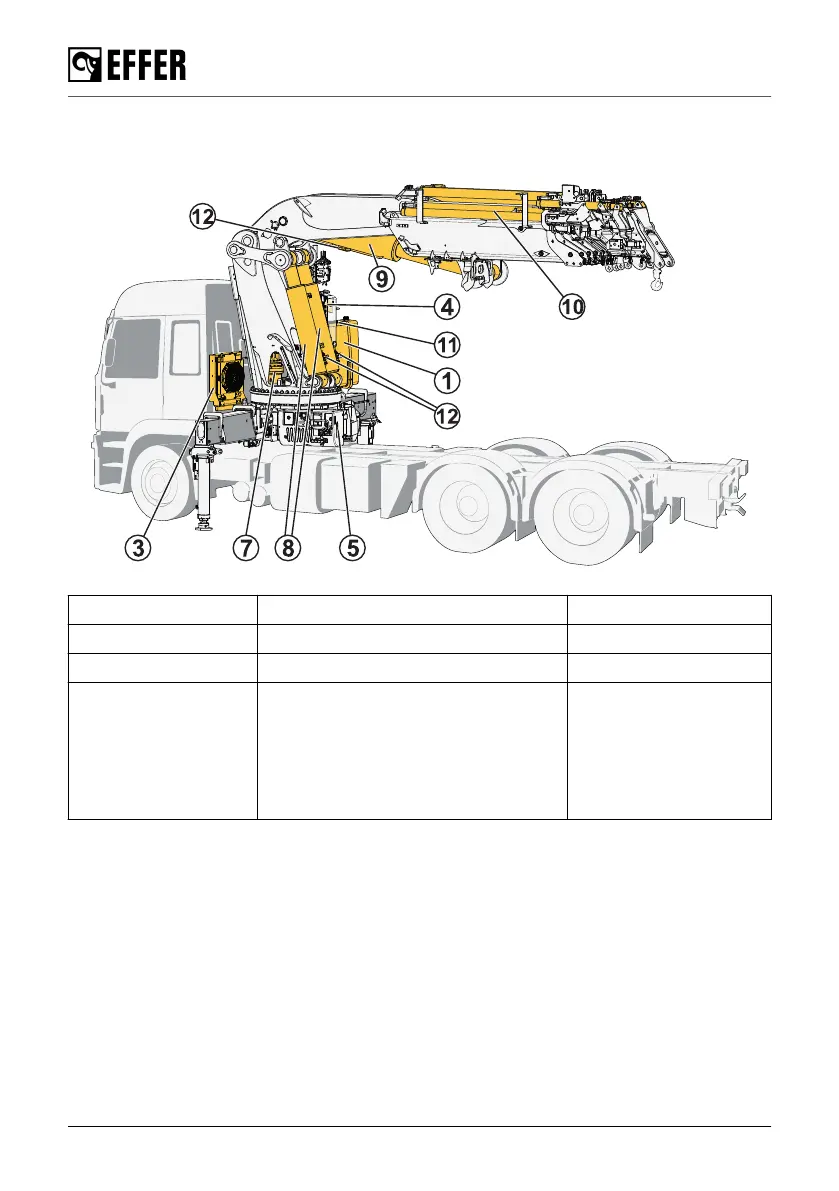

The operating system consists of the following hydraulic components:
(1) Oil tank (5) Stabiliser control valve (11) Return filter
Hydraulic pump Hydraulic hoses and lines (12) Load holding valve
(3) Oil cooler (7) Slewing cylinders / Slewing motors Pressure filter
(4) Main control valve Actuators:
(8) 1st boom cylinder
(9) 2nd boom cylinder
(10) Extension cylinder/s
Structure and parts of the crane
16 EFFER 265-315-395-525 Progress 2.0 CE
