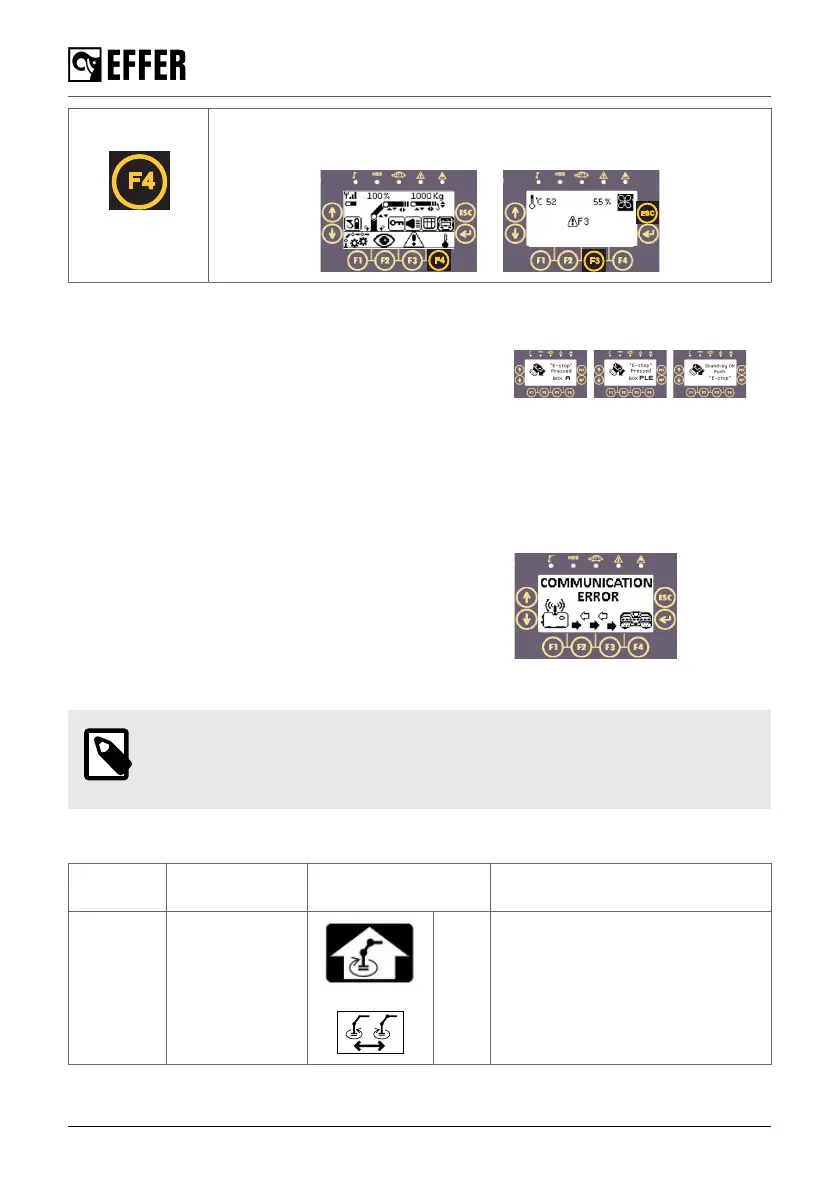

F4: DLC-S View the oil temperature and fan(s) speed. Push [F3] to go directly to the
warning/alarms display.
Display when an emergency button is pushed
If you push an emergency stop button, the display will show
an appropriate message.
If you push the emergency stop button on the controller, the
controller display will turn off.
Depending on the control station where you push the button, you will see a different image on the
display (Box A (main panel), MEWP). If the crane is on stand-by, push and release one of the
emergency stop buttons for operation.
Communication error
During the crane operation, this page may be displayed
to indicate the loss of radio communication between the
transmitter and the receiver of the controller
4.12.3. Standard functions and symbols
NOTE
The function corresponding to each lever depends on the configuration of the
specific crane. The following tables are examples.
Crane
Lever/
Joystick
Component
Lever/Joystick
position
Movement
(A) Slewing
1
2
clockwise slewing
counterclockwise slewing
The control system
70 EFFER 265-315-395-525 Progress 2.0 CE
