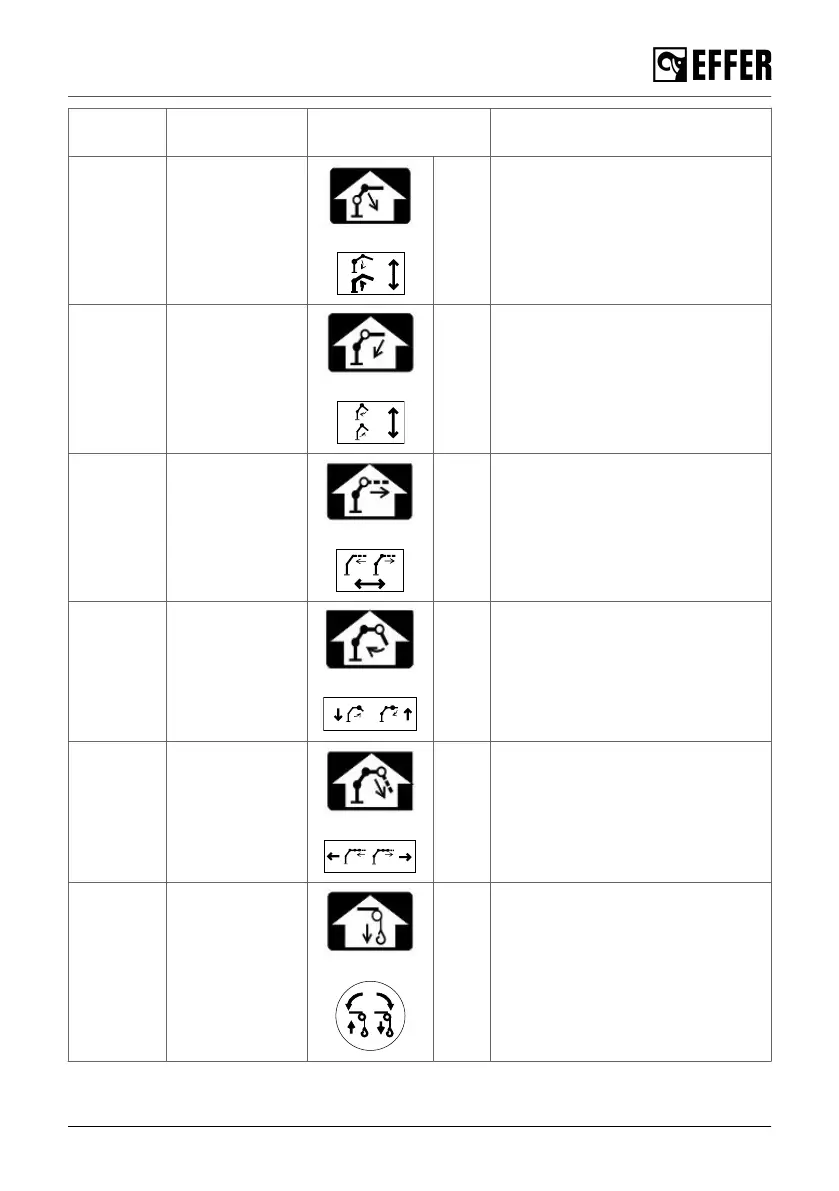

Effer 265 - Page 71

Lever/
Joystick
Component
Lever/Joystick
position
Movement
(B) 1st boom
1
2
down (folding)
up (unfolding)
(C) 2nd boom
1
2
down (folding)
up (unfolding)
(D)
Hydraulic
extensions
1
2
out (extracting boom extensions)
in (retracting boom extensions)
(E)
JIB cylinder
[option]
1
2
down (folding)
up (unfolding)
(F)
JIB extensions
[option]
1
2
out (extracting JIB extensions)
in (retracting JIB extensions)
(G)
Hoist [option]
1
2
rope down
rope up
The control system
EFFER 265-315-395-525 Progress 2.0 CE 71
