2. Structure and parts of the crane
2.1. Main groups

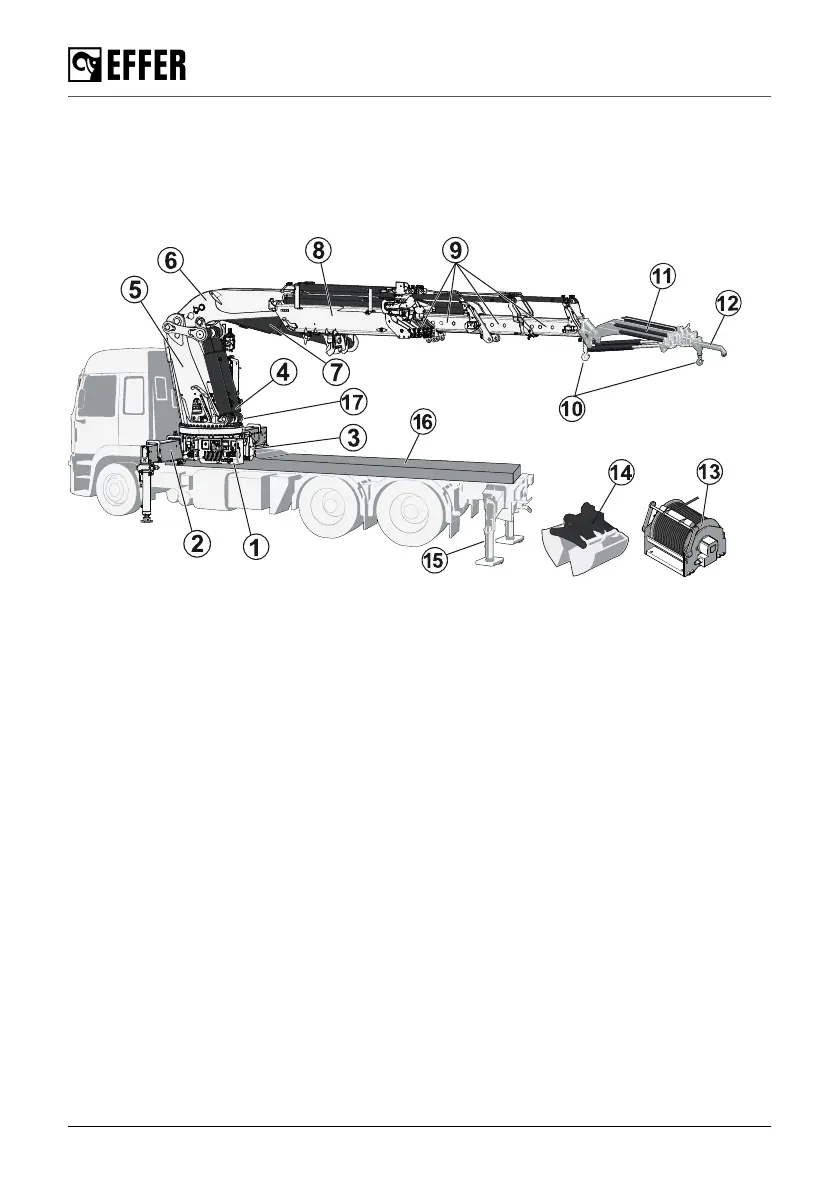

This crane consists of the following main groups:
(1) Control station (7) 2nd boom cylinder (13) Hoist
(2) Stabiliser system (8) 2nd boom (14) Accessories
(3) Base / Three-point
bridge
(9) Boom extensions (15) Auxiliary stabilisers (incl. front)
(4) 1st boom cylinder (10) Hook (16) Subframe
(5) Column (11) JIB (17) Oil tank
(6) 1st boom (12) Manual extension
Some accessories can be attached depending on your crane configuration:
• Manual extensions [option]
• 9
th
extension [option]
• Hoist [option]
• JIB [option]
• Add-on lifting accessories [option]
• Hooks [option]
• Separate lifting accessories [option]
