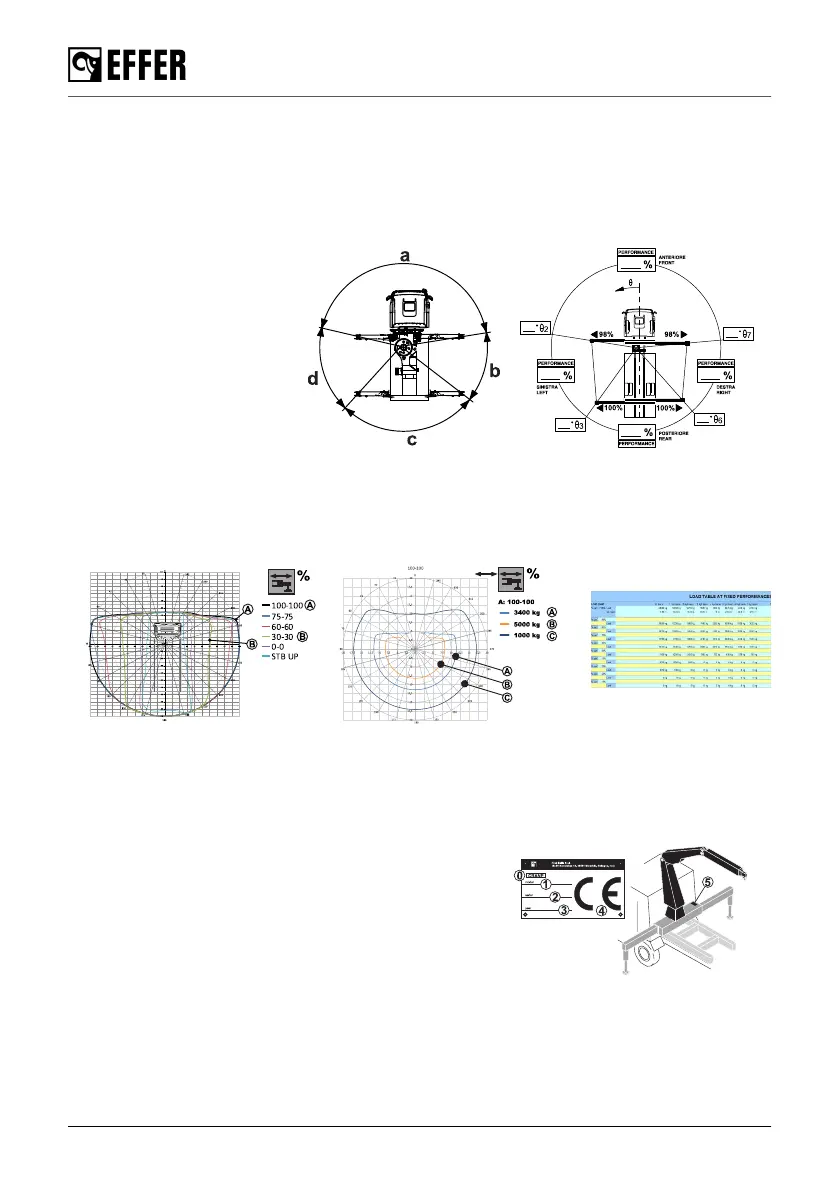

Stability diagrams
The Installer must deliver the stability diagrams to the operator for cranes with Progress or SENSE
feature.
• Cranes with Progress: the installer deliver the stability diagram represented with 4 working
areas and different positions of the stabiliser extensions.
a. front
b. right side
c. rear
d. left side
• Cranes with SENSE: the installer deliver the stability diagram represented with 360 working
areas, one for each degree of the crane slewing area, and different positions of the stabiliser
extensions. They can also supply different lifting capacity diagrams/tables according to the
operator's needs.
10.2. Identification of the loader crane
The information below is to be filled in by the installer. The same information will be found on the
serial number plate on the crane:
Mark: EFFER
(0) Machine Type: CRANE
(1) Model: ..........................................
(2) Serial number: .............................
(3) Manufact. year: ............................
(4) CE mark
(5) Serial number marked on the crane base
Technical Data
164 EFFER 265-315-395-525 Progress 2.0 CE
