Effer 265 - Multi-Connection Hydraulic Quick Couplings (Quickfaster) [Option]

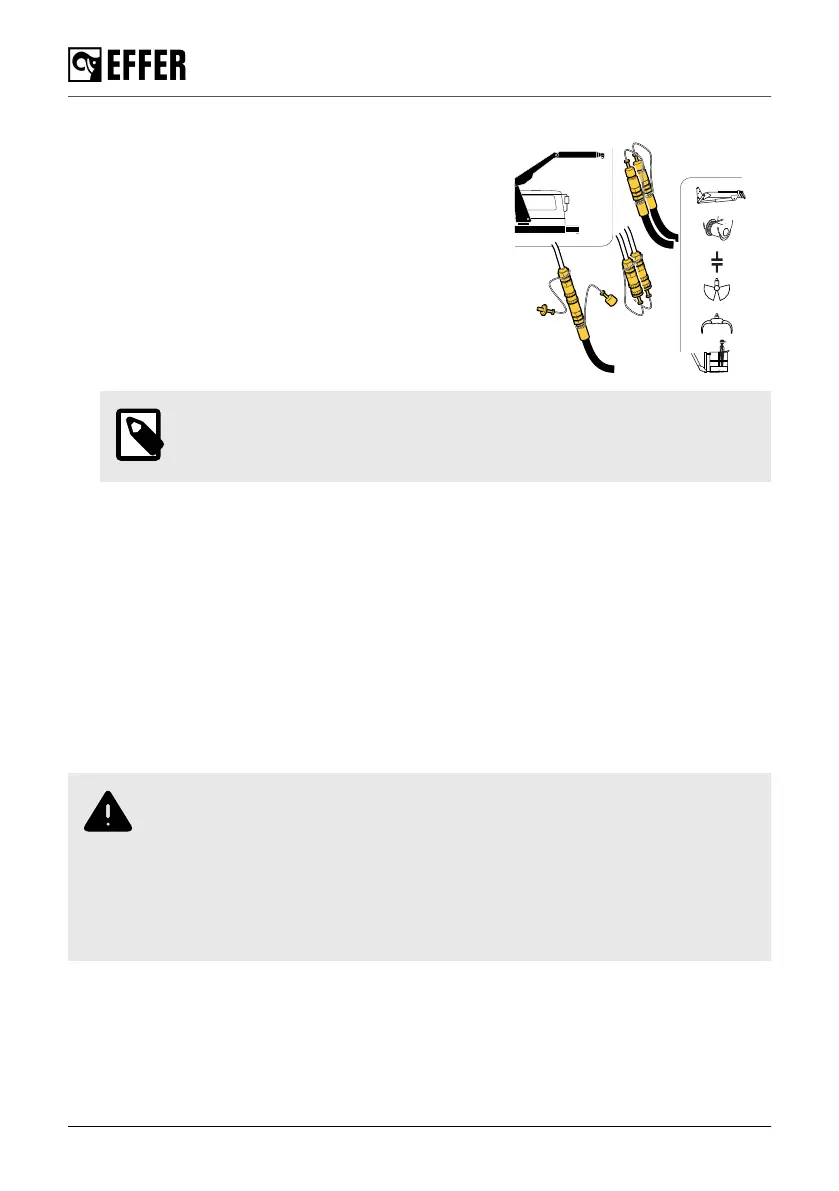

To connect the hydraulic couplings you must:
1. Switch off the control system.
2. Disengage the PTO.
3. Connect the respective hydraulic couplings taking care
with the corresponding identification:
• 1 red collar = JIB cylinder unfolding
• 2 red collars = JIB cylinder folding
• 1 green collar = JIB extension cylinder extension
• 2 green collars = JIB extension cylinder retraction
• 1 blue collar = hoist rope up
• 2 blue collars = hoist rope down
NOTE
To prevent damage, do not change the hydraulic couplings position.
4. Reconnect the PTO and switch on the system, if needed.
5. Do a functional test of all movements of the accessories to verify that there are no mistakes in
the connections.
To disconnect the hydraulic couplings you must:
1. Switch off the control system.
2. Disengage the PTO.
3. Disconnect the hydraulic couplings, and protect them with protective caps.
4. Reconnect the PTO and switch on the system, if needed.
5. Operate the crane to verify that all functions work correctly.
6.5.2. Multi-connection hydraulic quick couplings (quickfaster) [option]
Hydraulic quick couplings allow the connection of several hydraulic lines at the same time.
WARNING
• Switch off the control system and the PTO before connecting or disconnecting
the connectors.
• Always remove/attach first the electrical connection before the hydraulic
connection.
• Keep the electrical and hydraulic protection caps and bypass in good conditions
and store them in a safe place.
During operation
