To connect the accessory electrically you must obey
the following procedures:

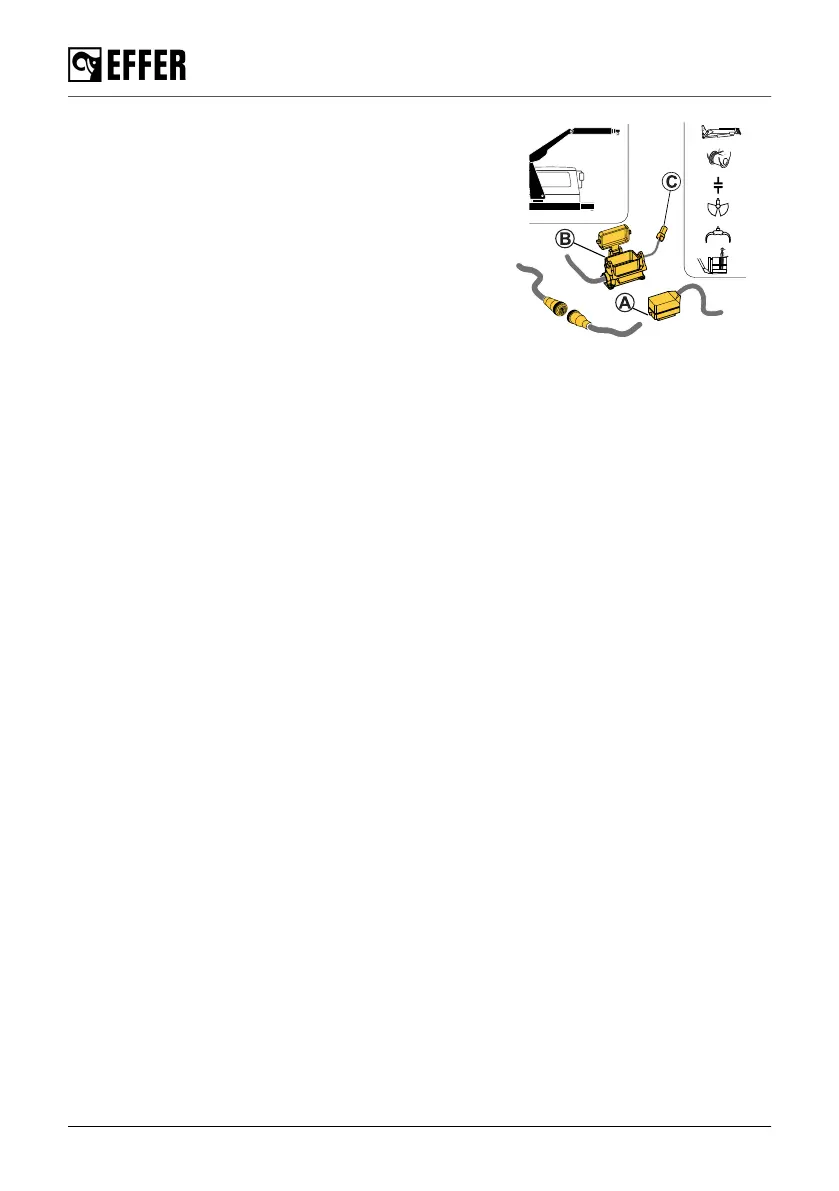

• With the JIB, lifting platform and hoist on the JIB, connect
the plug (A) mounted on the JIB to the box (B) mounted
at the end of the crane hydraulic extensions.
• With the rotator and the grab, connect the connector (A)
directly to the box (B).
• With the hoist on the crane, plug the hoist connector into
the pin (C).
To disconnect the accessory electrically you must:
• Disconnect electrical connector plug (A) of the accessory
from the socket (B) on the crane.
• With a hoist (with pulley on the crane), disconnect the connector and connect the electrical
bypass on the cable (C) located on the crane.
• Insert the protection cap in the accessory electrical plug.
During operation
122 EFFER 265-315-395-525 Progress 2.0 CE
