(*3) The same plates for crane stabiliser legs must be provided for auxiliary stabiliser legs.

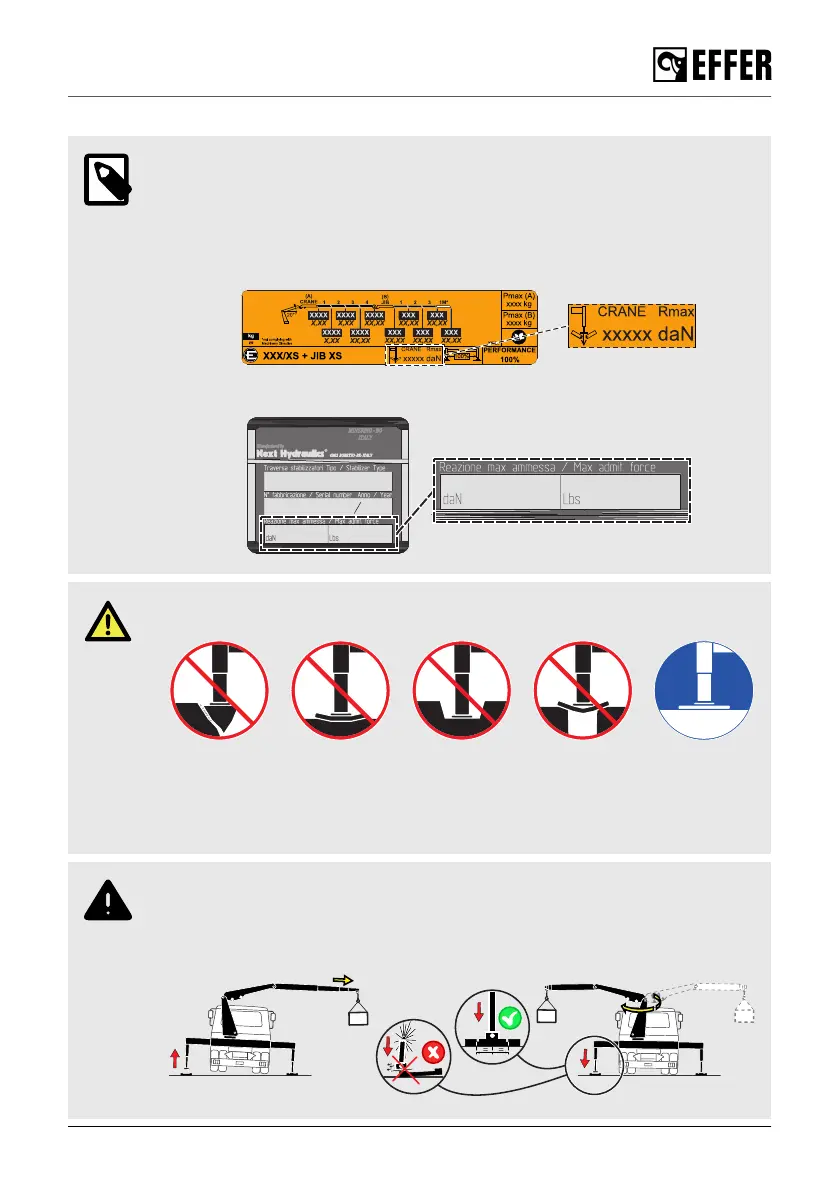

NOTE
• For crane models which the pressure applied on the ground by the stabiliser leg
plates is more than 4Mpa (40kg/cm2), extra support plates (only CE cranes) are
provided as standard.
• The load plate shows the maximum force that the stabiliser legs can apply to the
ground.
• There is a plate on the auxiliary stabiliser legs which shows the maximum force
that the stabiliser legs can apply to the ground.
DANGER
Verify that the extra support plates do not bend or sink into the ground.
Do not lower the stabiliser legs on the edge of an embankment, soft ground,
hollows, etc… Lower the stabiliser legs only onto a flat, firm, and stable surface.
WARNING
If a stabiliser leg detaches from the extra support plate during operation, you must
verify that the leg goes back correctly to the centre of the support plate. If not,
there is a risk of tilting the vehicle or damaging the stabiliser legs.
