DANGER
Do a check that the support plates do not bend or sink into the ground!

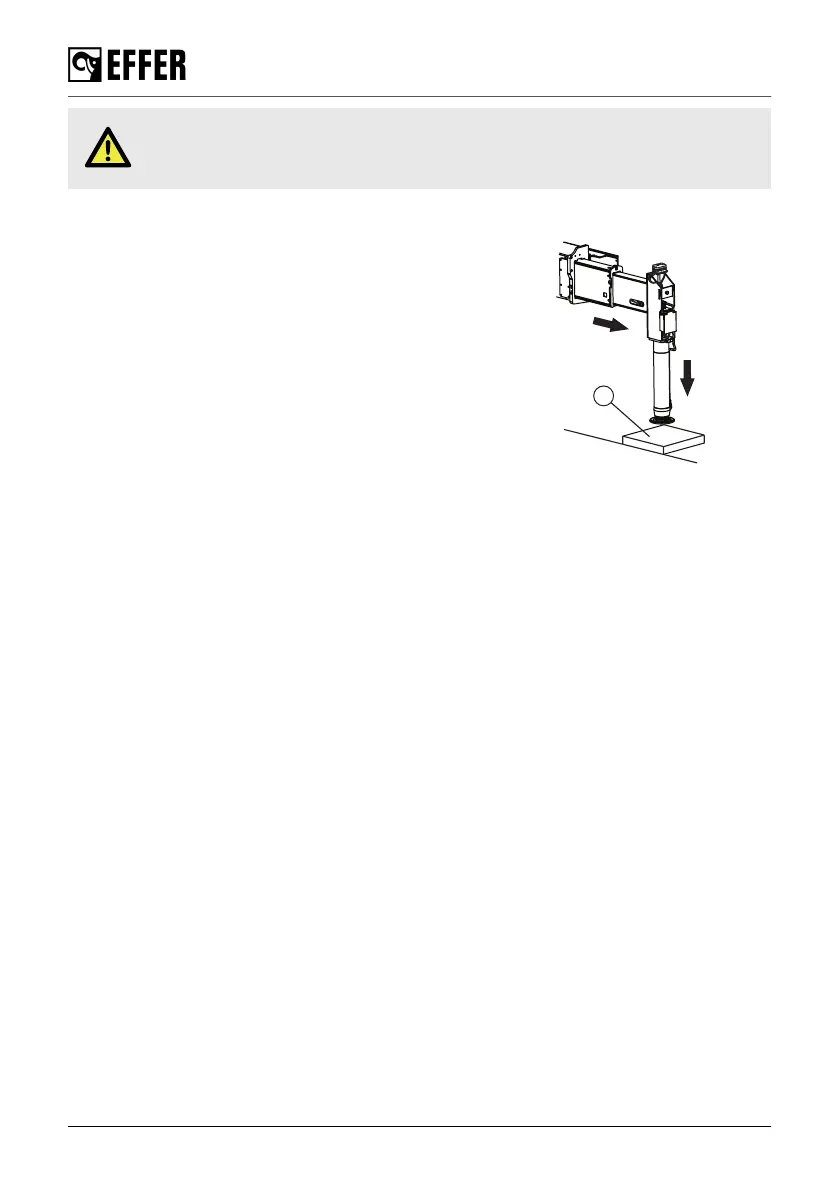

Non-tiltable stabiliser legs
1. Make sure that the stabiliser extensions are extended.
2. Put the extra support plate (1) onto the ground (if
necessary).
3. Operate the stabiliser leg downwards until it is set to
the ground.
Hydraulically-controlled tiltable stabiliser legs (180º-157º)
Transport position
The stabiliser legs are provided with a know (G). It has a locking pin (D) and two positioning pins
(C) to keep the stabiliser legs in the transport position.
There are two different transport positions for the stabiliser legs depending on the installation on
the truck:
• Position (1): 180º. The two positioning pins (C) should be placed in the holes (E).
• Position (2): 157º. The two positioning pins (C) should be placed in the holes (F).
Starting crane operation
90 EFFER 265-315-395-525 Progress 2.0 CE
