Operation
DANGER
Stay away from the tilting area of the stabiliser leg.
When the leg turns, there is a risk of injury.
Always keep your hands away from the moving parts during this operation.
Make sure the tilting mechanism remains unlocked during the complete
tilting.

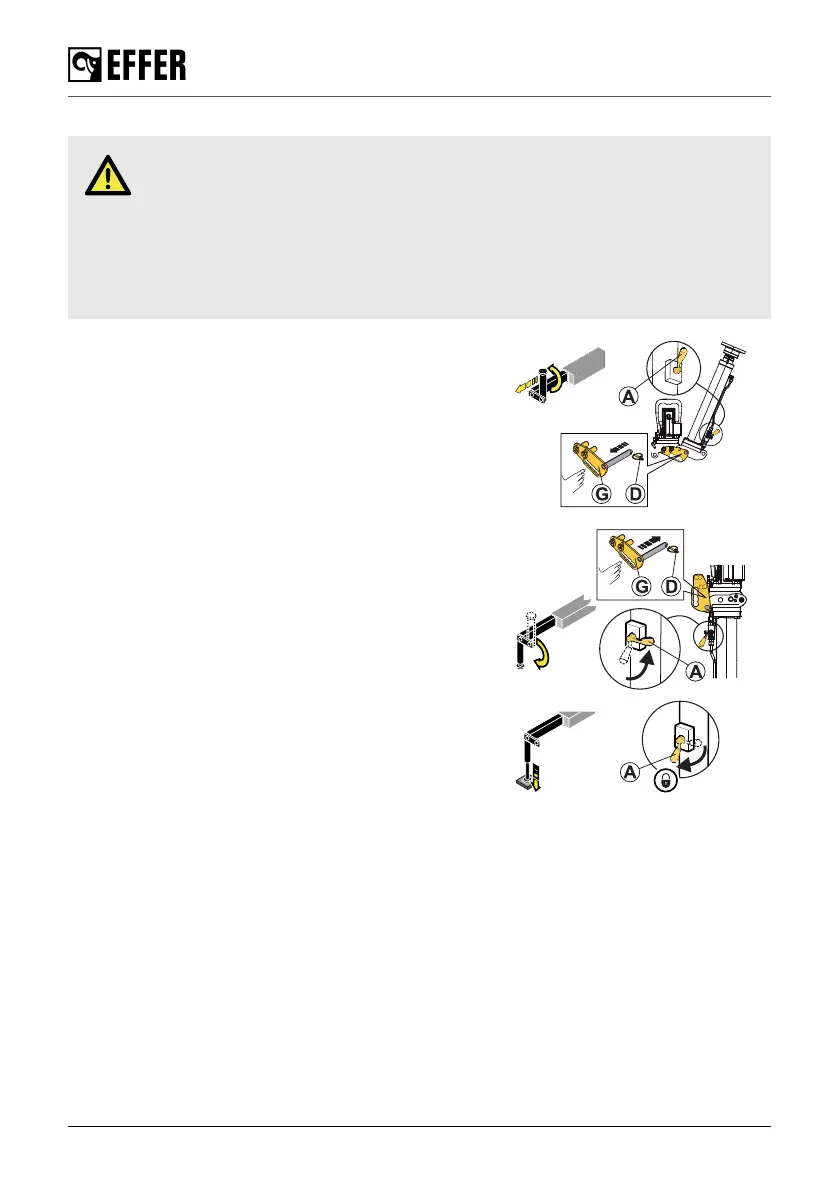

1. Make sure that the stabiliser extension is
extended and you can rotate the stabiliser leg
freely.
2. Tilt the stabiliser leg:
a. Turn the lever (A) vertically to activate the
tilting movement.
b. Operate the stabiliser leg against the stabiliser
extension.
c. Remove the cotter pin (D) and the knob (G).
3. Turn the leg from the controller. Make sure that
you have full control of the movement to avoid risk
of injury.
4. Insert the knob (G) again in the tilting mechanism
when reaching the working position. Lock the pin
with the cotter pin (D).
5. Move the lever (A) to the horizontal position.
6. Put the extra support plate (if necessary) onto the
ground.
7. Set the stabiliser leg on the ground.
8. Turn the lever (A) vertically.
Starting crane operation
92 EFFER 265-315-395-525 Progress 2.0 CE
