ELITE OPERATOR’S MANUAL
180

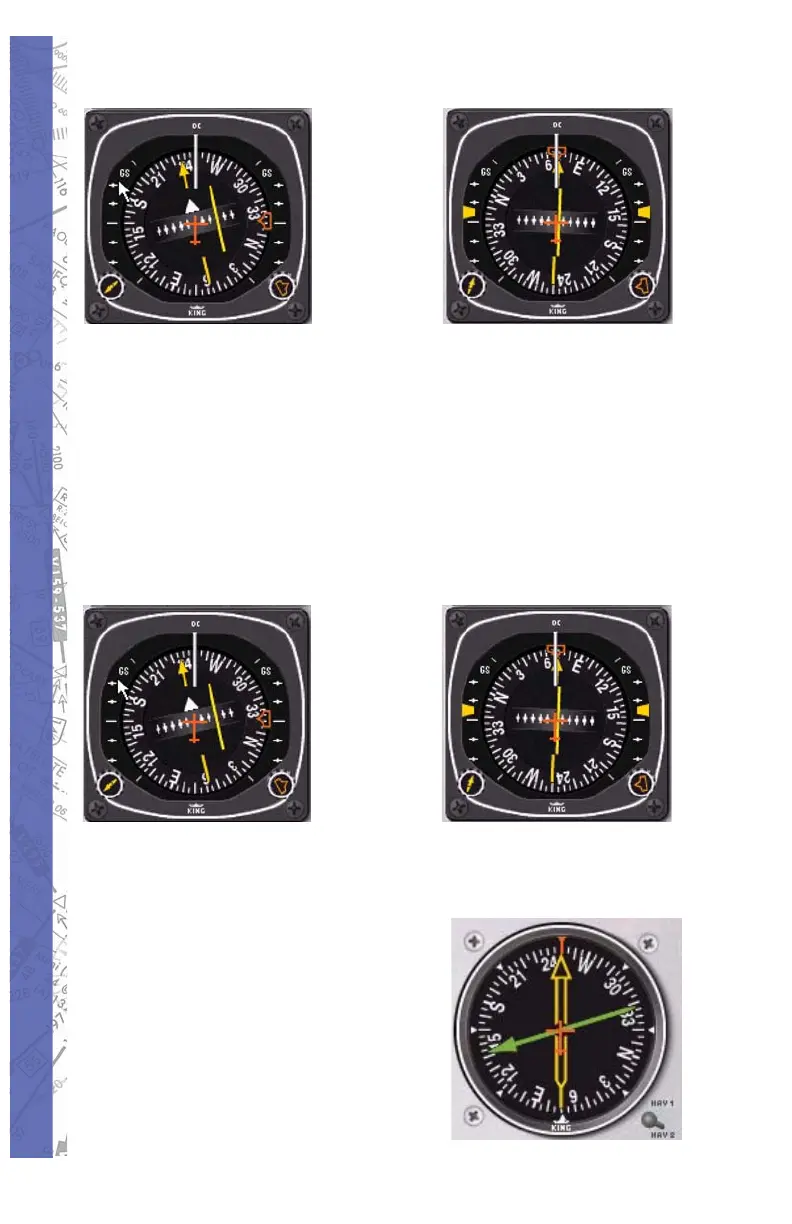

This HSI is set to a VOR
This HSI is set to an ILS
NOTE: A red HDG or NAV fl ag indicates absence of station
reception or malfunction of the receiver.
VOR/LOC/GLIDESLOPE INDICATOR
The VOR/LOC/Glideslope Indicator utilizes the conventional
crosspointer layout. It is connected to the NAV receivers
( NAV1 or NAV2). The compass card is rotated by the OBS
knob in the conventional manner.
Receiver is set to a VOR Receiver is set to an ILS
RADIO MAGNETIC INDICATOR
The Radio Magnetic Indicator
( RMI) incorporates a slaved (self-
rotating) compass card, a green
single pointer, and a yellow double
pointer. The green single pointer
may be switched between NAV1
receiver and NAV2 receiver. The
double-line pointer is pointing to
