PI-135 OPERATOR’S MANUAL
20
The station can serve as the controlling monitor and allow
the instructor to start the program, close the program and,
when in the ELITE program, use all pages of the ELITE
menu system independently of the main monitor (which will
only display the instrument screen). Your local computer
store can provide assistance in providing the necessary
graphic card(s) and confi guring Windows for multi
monitor use Because malfunctions can be evoked from
the keyboard independent of the simulation, a separate
instructor station monitor is not required for certifi cation
purposes...but because of the training value, it is highly
recommended.

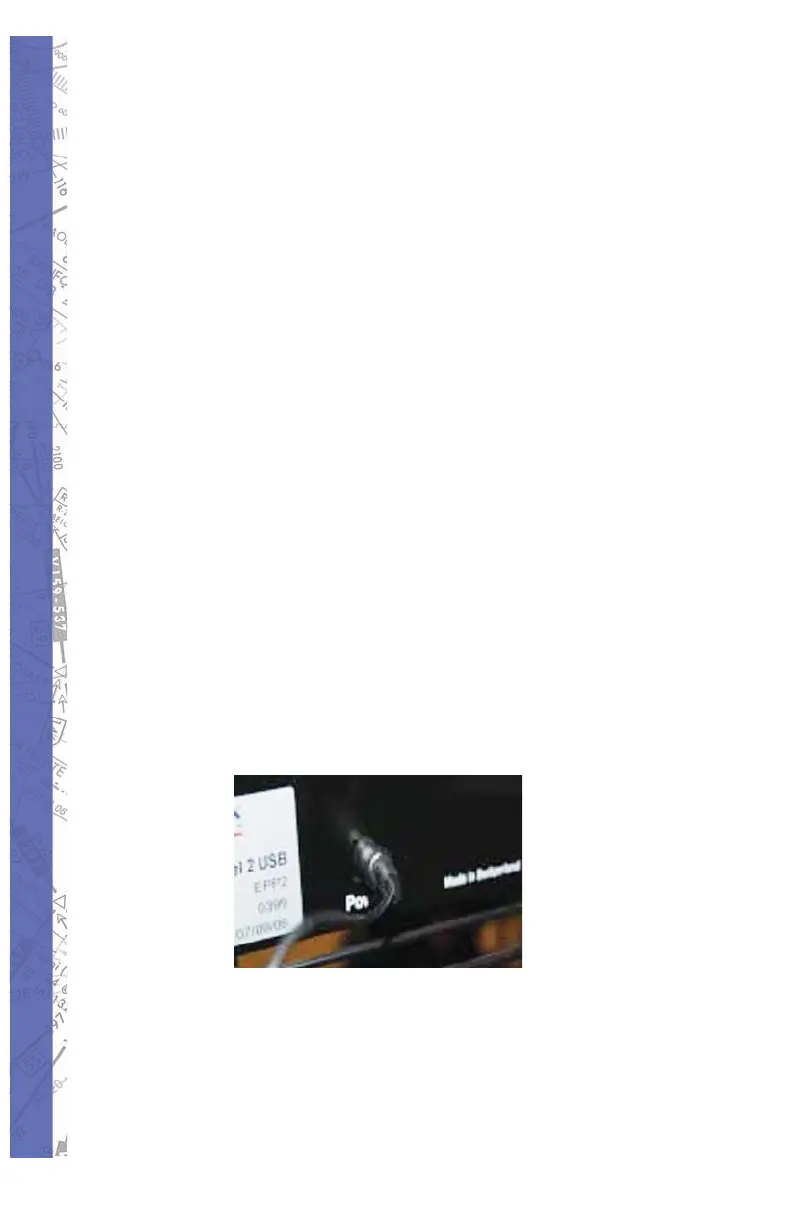

CONNECTING POWER
The PI-135 is powered by 2 AC Adapters. One is for the
AP3000 and the other is for the Pro Panel II Flight Console.
The AP3000 comes with a 9v DC, 1.2 amp (negative
center) power supply. It can also power the Pro Panel II
simultaneously with the “power splitter” adapter included
with the master key. The Pro Panel II comes with a 9v
DC 300 to 500 mA (negative center) power supply. It is
your choice whether to use one or both power supplies. A
surge protected is highly recommended!
