CHAPTER 5: AIRCRAFT
the ADF receiver. If any navigation set is not receiving a
valid signal from a station, the corresponding needle is
parked in the horizontal position.

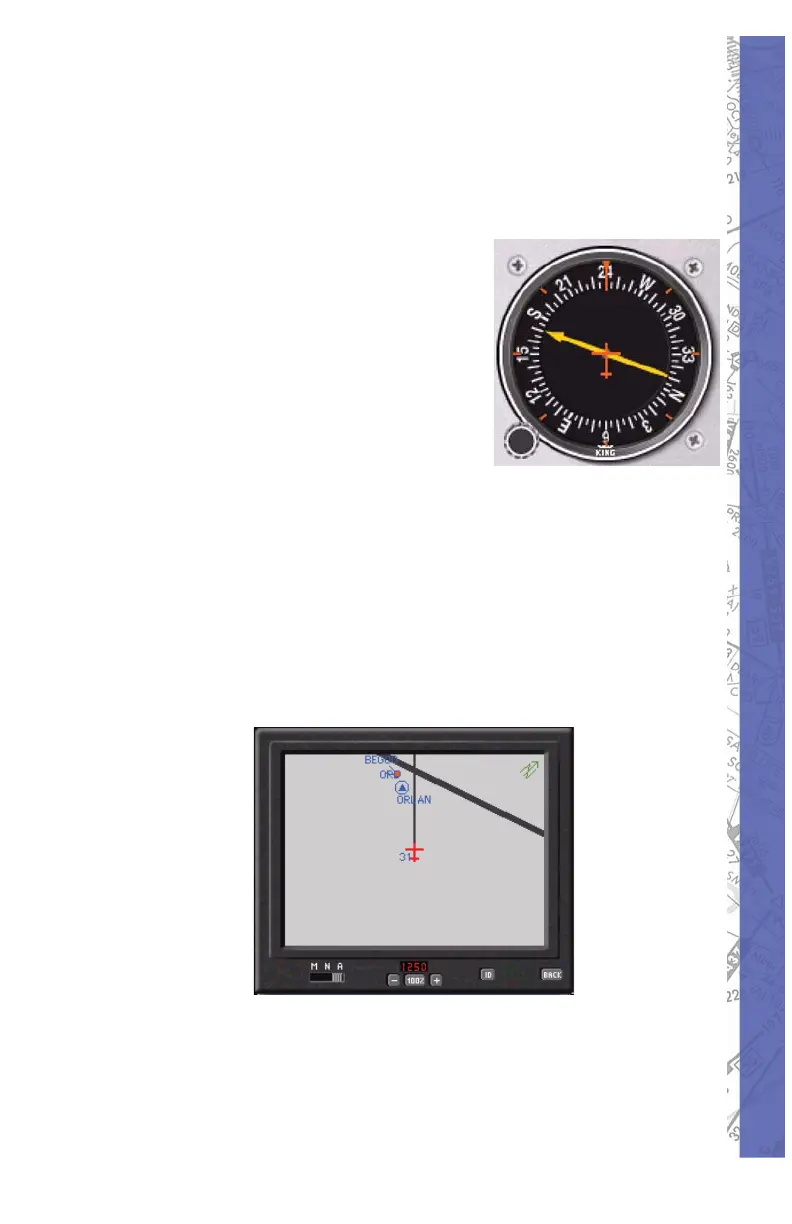

MOVING DIAL INDICATOR
The Moving Dial Indicator (MDI) is
connected to the ADF receiver. It
is an improved Relative Bearing
Indicator (RBI) which has a fi xed
360° compass card, where as the
compass card of the MDI can be
turned by the rotary dial. Bearing
Pointer indicates relative or
magnetic bearing to station as selected by HDG knob. If
the relative heading of north is manually selected under the
lubber line by the pilot, then the bearing pointer indicates
the relative bearing to the station. If the aircraft’s magnetic
heading is selected under the lubber line by the pilot, then
the bearing pointer indicates the magnetic bearing to the
station.
MOVING MAP
The Moving map feature is available in all ELITE photo-
realistic cockpits and is activated by pressing the King
Crown symbol on the DME instrument panel ( ADF on the
Baron & Bonanza models). The map can be displayed in
three modes:
