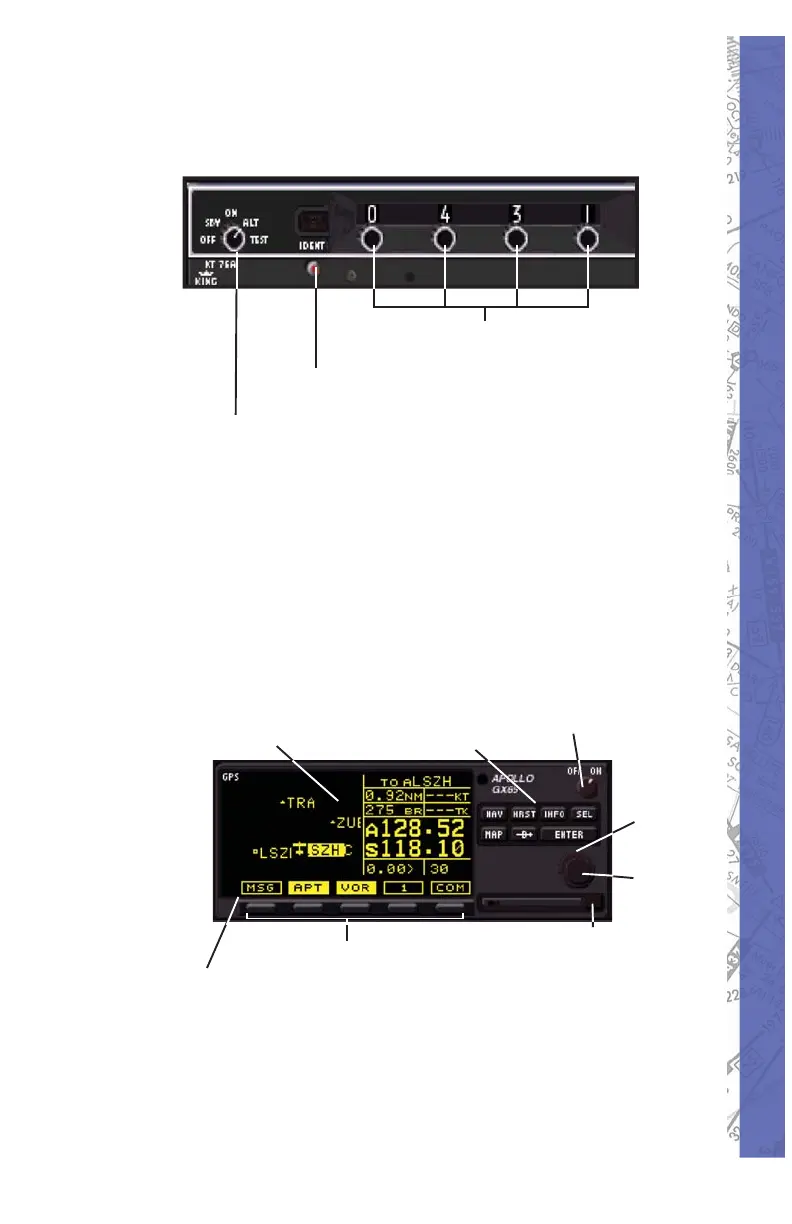

Transponder KN 67A
Change transponder code (Click
mouse on knob and drag left or
right to change number)
Push button to
IDENT
Change transponder mode (Click mouse on knob and drag
left or right to activate transponder features)
The Transponder is a radio transmitter and receiver which
operates on radar frequencies. Receiving ground radar
interrogations at 1030 MHz, it returns a coded response of
pulses to ground-based radar on frequency of 1090 MHz.
GPS RECEIVER
UPS Apollo GX Series GPS
Click on GPS data card Eject
button to change area coverage
(North America or In ter na tion al)
Power
Switch
Function Keys
Outer
Knob
Inner
Knob
Smart Keys
Information Dis play
Smart Key An nun ci a tor
The Apollo GX products are high performance GPS
products with a high resolution moving map display. The
Apollo GX’s use a powerful, accurate 8-channel GPS
engine designed specifi cally for high performance aviation
use.
