Electricalйconnection ProlineйPromagйHй100йEtherNet/IP
32 Endress+Hauser

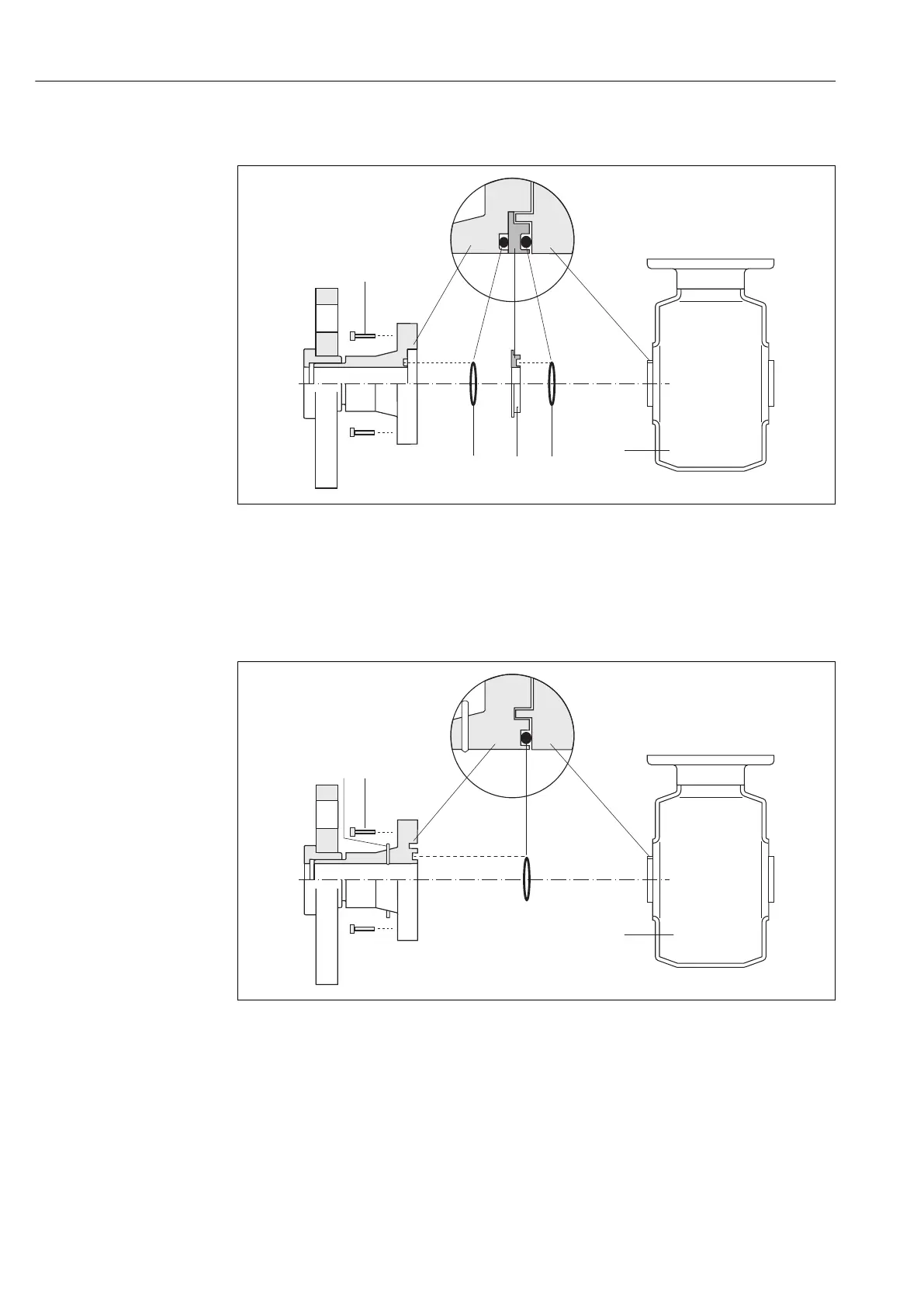

Potential equalization via additional grounding ring
1
3
2
4
2
ййA0002651
1 Hexagonal-headed bolts of process connection
2 O-ring seals
3 Plastic disk (spacer) or grounding ring
4 Sensor
Potential equalization via grounding electrodes on process connection
2
1
3
4
ййA0017293
1 Hexagonal-headed bolts of process connection
2 Integrated grounding electrodes
3 O-ring seal
4 Sensor
