User interface
6
5
32
1
Xxxxxx/…/…/
7
P
P
+
–
P
–
P
+
+
+
+
+
+
4
8 9
10
11
Xxxxxxx
GoodStatus:
Device tag:
Xxxxxxx
Device name:
Mass flow:
12.34
kg/h
Volume flow:
12.34
m /h³
Mass flow unit:
Volume flow unit:
kg/h
m /h³
Access status tooling
Operation
Setup
Xxxxxx
Mass flow unit
Volume flow unit
Select medium
Device tag
…
…
Advanced setup
Diagnostics
Expert
Maintenance
kg/h
m /h³
Xxxxxx
System units
ййA0021051-EN

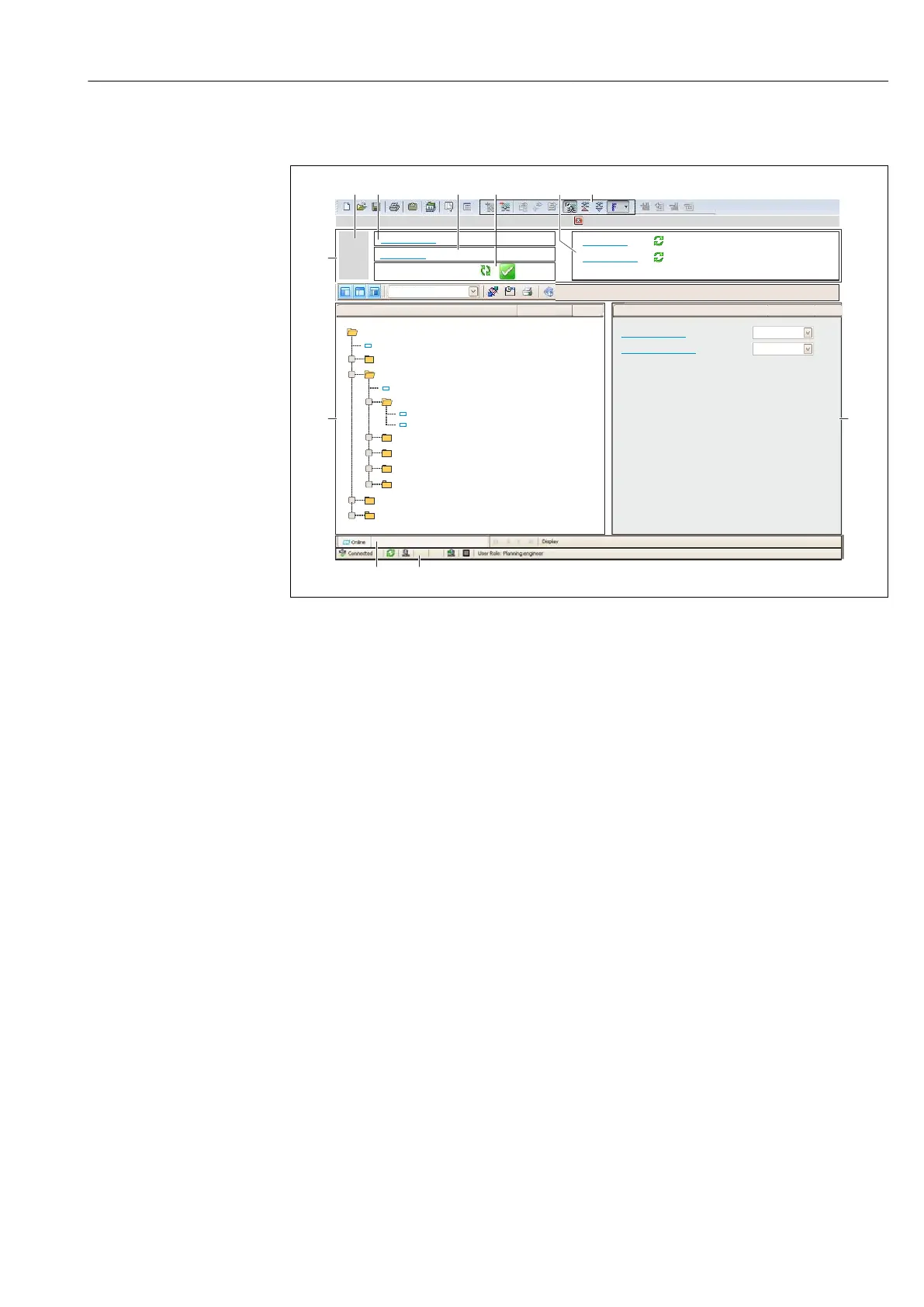

1 Header
2 Picture of device
3 Device name
4 Device tag (→  48)
5 Status area with status signal (→  69)
6 Display area for current measured values
7 Event list with additional functions such as save/load, events list and document creation
8 Navigation area with operating menu structure
9 Operating range
10 Range of action
11 Status area
