J22 TDLAS Gas Analyzer 4900002277
SpectraSensors, Inc. 115
2 Short text
3Service ID
4 Diagnostic behavior with diagnostic code
5 Operation time of occurrence
6 Remedial measures
The user is in the diagnostic message.
1. 1. Press ( symbol).
The Diagnostic list submenu opens.
2. Select the desired diagnostic event with or and press .
The message for the remedial measures for the selected diagnostic event
opens.
3. Press + simultaneously.
The message for the remedial measures closes.
The user is in the Diagnostics menu at an entry for a diagnostics event, e.g., in the
Diagnostic list submenu or Previous diagnostics parameter.
1. Press .
The message for the remedial measures for the selected diagnostic event
opens.
2. Press + simultaneously.
The message for the remedial measures closes.
Diagnostic Informa-
tion in the Web
Browser
Diagnostic options
Any faults detected by the measuring device are displayed in the Web browser on
the home page once the user has logged on.

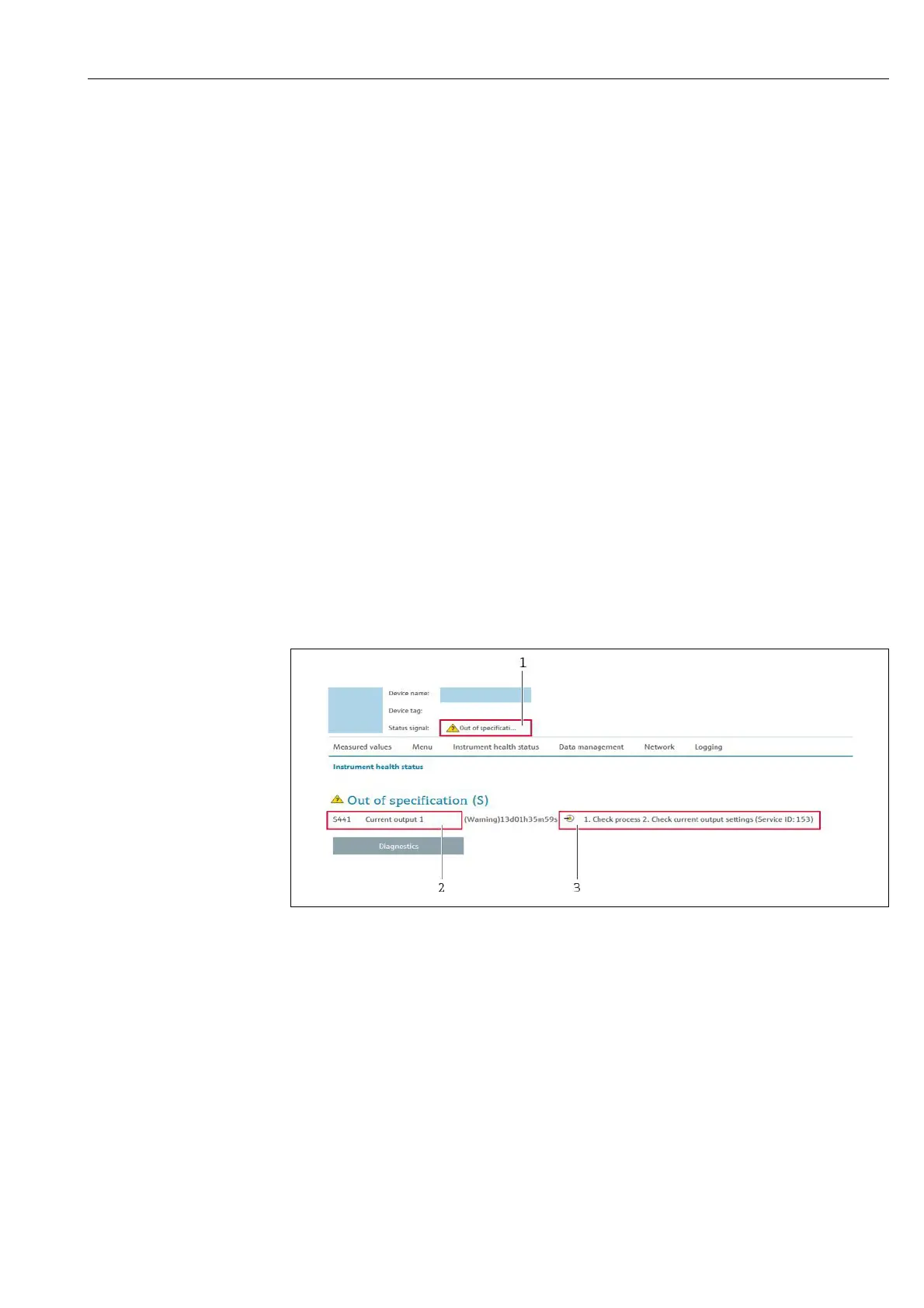

A0031056-SSI
1 Status area with status signal
2 Diagnostic information→ 123
3 Remedy information with Service ID
In addition, diagnostic events which have occurred can be shown in the
Diagnostics menu:
•Via parameter
•Via submenu → 123
