4900002277 J22 TDLAS Gas Analyzer
132 SpectraSensors, Inc.
If liquid or contaminants are detected on the filter:
3. Drain any liquids and clean with isopropyl alcohol.
4. Clean any liquids or contaminants from the base of the membrane separator.
5. Replace the filter and the O-ring.
6. Place the cap onto the membrane separator and tighten.
7. Check upstream of the membrane for liquid contamination and clean and dry
out before re-opening the sample supply valve.
Replacing the 7 micron filter
Tools
• 1 in. Open-ended wrench
• 1 in. Crow’s foot
• Torque wrench (capable of 650-in. lb [73.4 N-m])
Residual hazardous media may be left in the filter.
1. Close the sample supply valve.
2. Conduct a sample system purge if suspected hazardous elements are present
→ 134.
3. Stabilize the body with a wrench and loosen the bonnet.

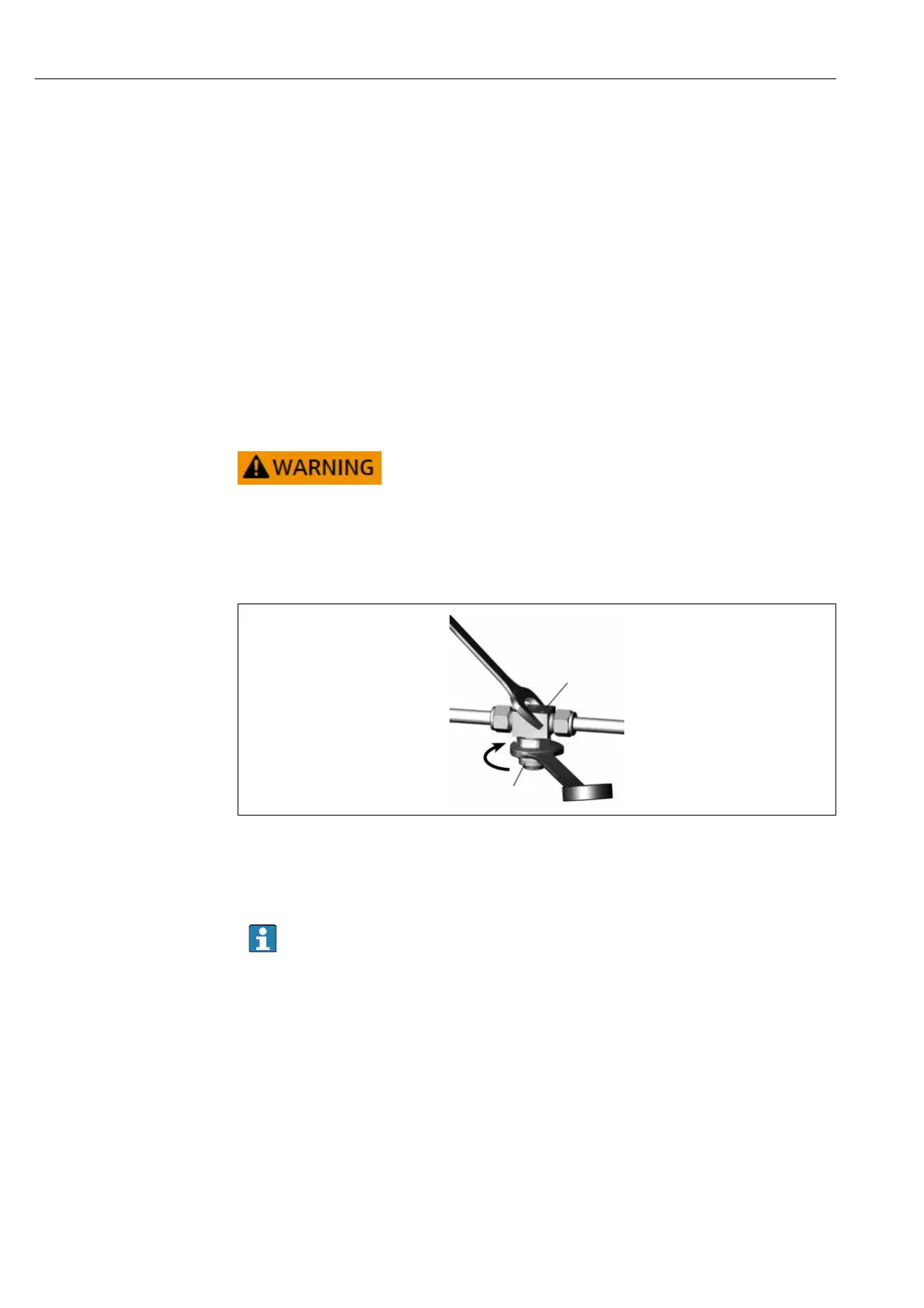

1: Loosen filter elements
1Filter body
2 Filter bonnet
4. Remove the bonnet, gasket and filter element → 2: on page 133.
• If replacing the gasket, discard the old gasket.
• If replacing the filter element, discard the old filter.
