4900002277 J22 TDLAS Gas Analyzer
26 SpectraSensors, Inc.
Structure and
Function of the
Operating Menu
Structure of the operating menu
For an overview of the operating menu for experts, refer to the "Description of
Device Parameters" document supplied with the J22 TDLAS Gas Analyzer→
page 2.

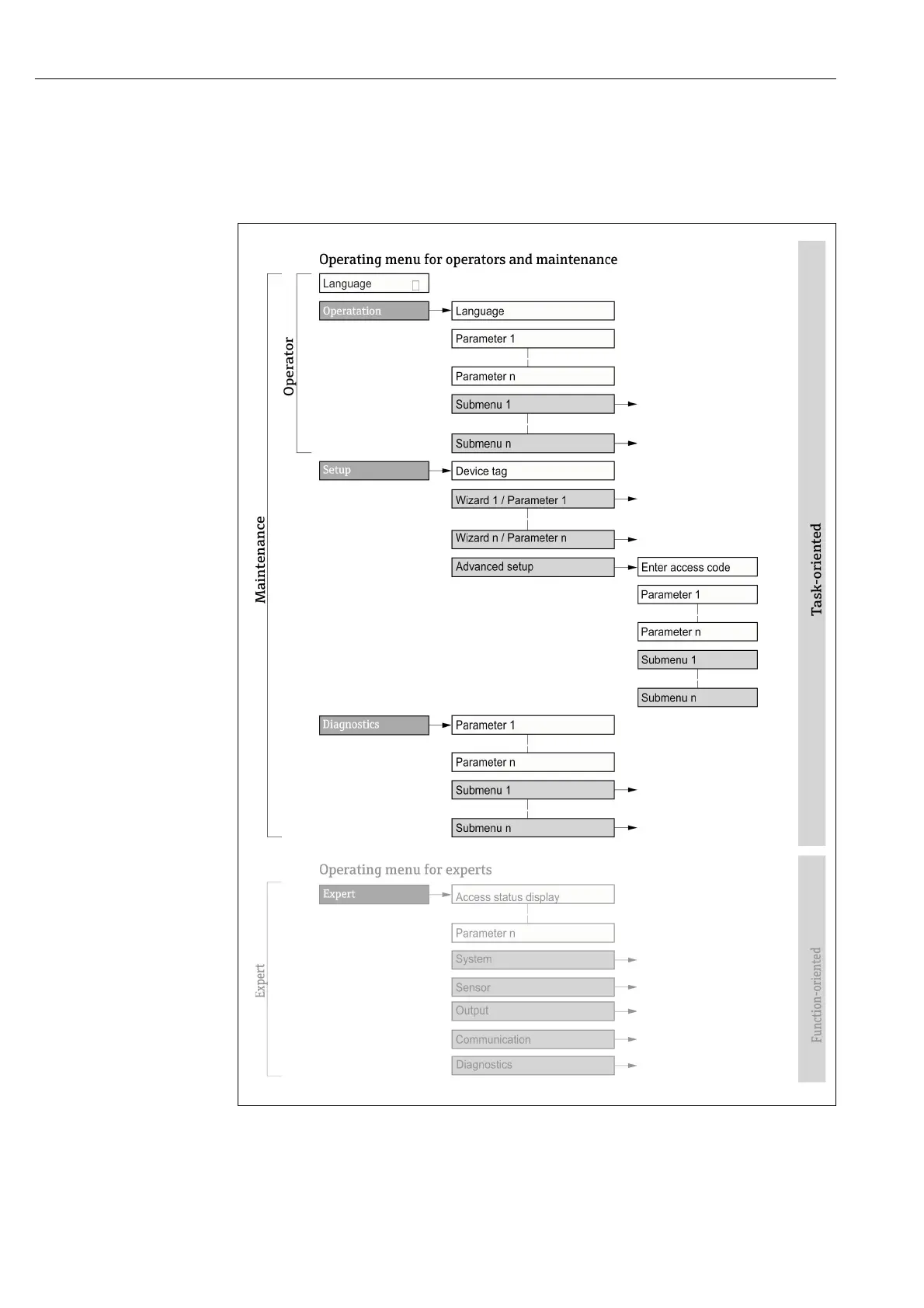

1: Schematic structure of the operating menu
Operating philosophy
The individual parts of the operating menu are assigned to certain user roles
(operator, maintenance, etc.). Each user role contains typical tasks within the
device lifecycle.
