4900002277 J22 TDLAS Gas Analyzer
12 SpectraSensors, Inc.

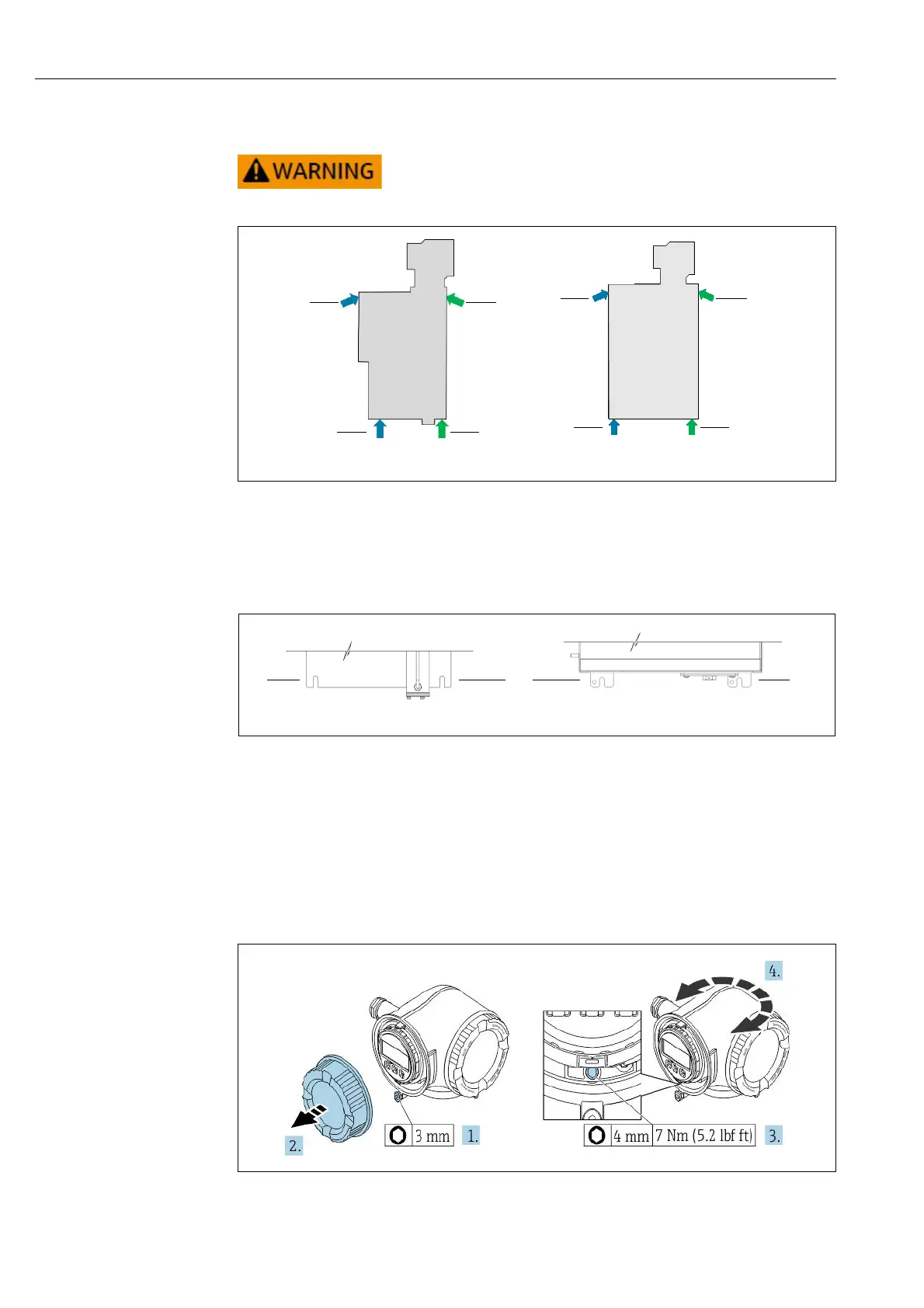

2. Lift the analyzer vertically at the points shown in the figure below.
Distribute the weight evenly among personnel to avoid injury.
1 Person one hand positions
2 Person two hand positions
3. Lift the analyzer onto the bottom bolts and slide the slotted bottom mounting
tabs over the bolts. Allow the two bottom bolts to take the weight of the ana-
lyzer while stabilizing in a vertical orientation.
1 Slotted tabs
4. Tilt the analyzer and push it towards the mounting frame or wall while align-
ing the two top bolts.
5. While one person exerts the necessary pressure to hold the analyzer to the
frame or wall, the second person secures the two top bolts.
6. Tighten all four bolts.
Turning the
Controller Housing
To provide easier access to the connection compartment or display module, the
controller housing can be turned.
A0029993
1
1
2
2
J22 on a Panel
J22 with Enclosure
1
1
2
2
1 1
Panel Mount Enclosure Mount
1
