4900002277 J22 TDLAS Gas Analyzer
28 SpectraSensors, Inc.
Access to the
Operating Menu via
the Local Display
Operational display
A0029348

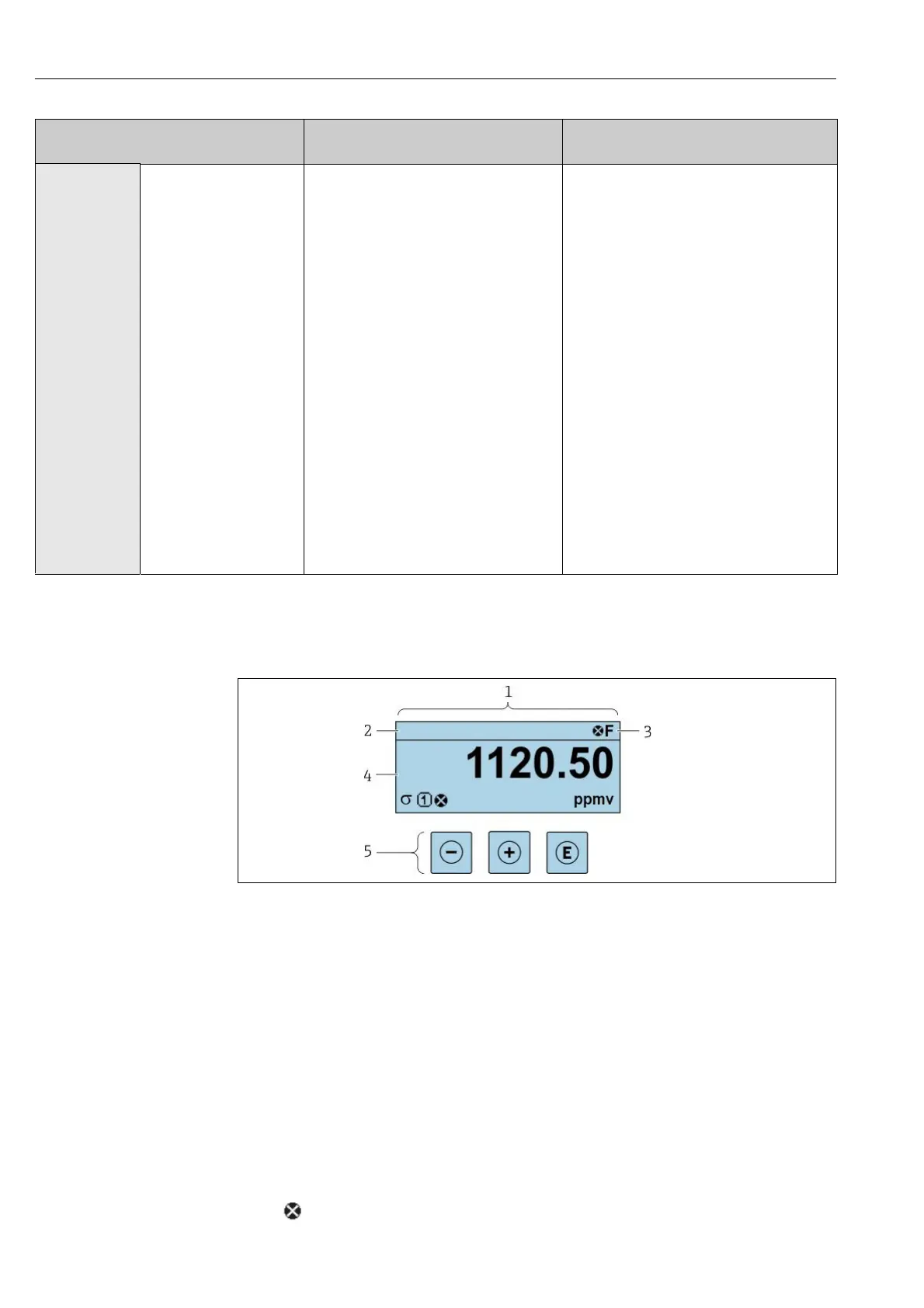

1 Operational display
2Device tag
3 Status area
4 Display area for measured values (4-line)
5 Operating elements→ 34
Status area
The following symbols appear in the status area of the operational display at the
top right:
• Status signals→ 113
-F: Failure
-C: Function check
- S: Out of specification
- M: Maintenance required
• Diagnostic behavior→ 113
- : Alarm
Expert Function-oriented Tasks that require detailed
knowledge of the function of the
device:
• Commissioning measure-
ments under difficult condi-
tions
• Optimal adaptation of the
measurement to difficult con-
ditions
• Error diagnostics in difficult
cases
Contains all the parameters of the
device. The structure of this menu is
based on the function blocks of the
device:
•System
Contains all higher-order device
parameters that do not concern
the measurement or the commu-
nication interface.
•Output
Configuring of the analog current
outputs as switch output.
• Communication
Configuration of the digital com-
munication interface and the
Web server.
• Diagnostics
Error detection and analysis of
process and device errors, and for
device simulation and Heartbeat
Technology.
Menu/Parameter User Role and Tasks Content/Meaning
To Next Page
