4900002277 J22 TDLAS Gas Analyzer
16 SpectraSensors, Inc.

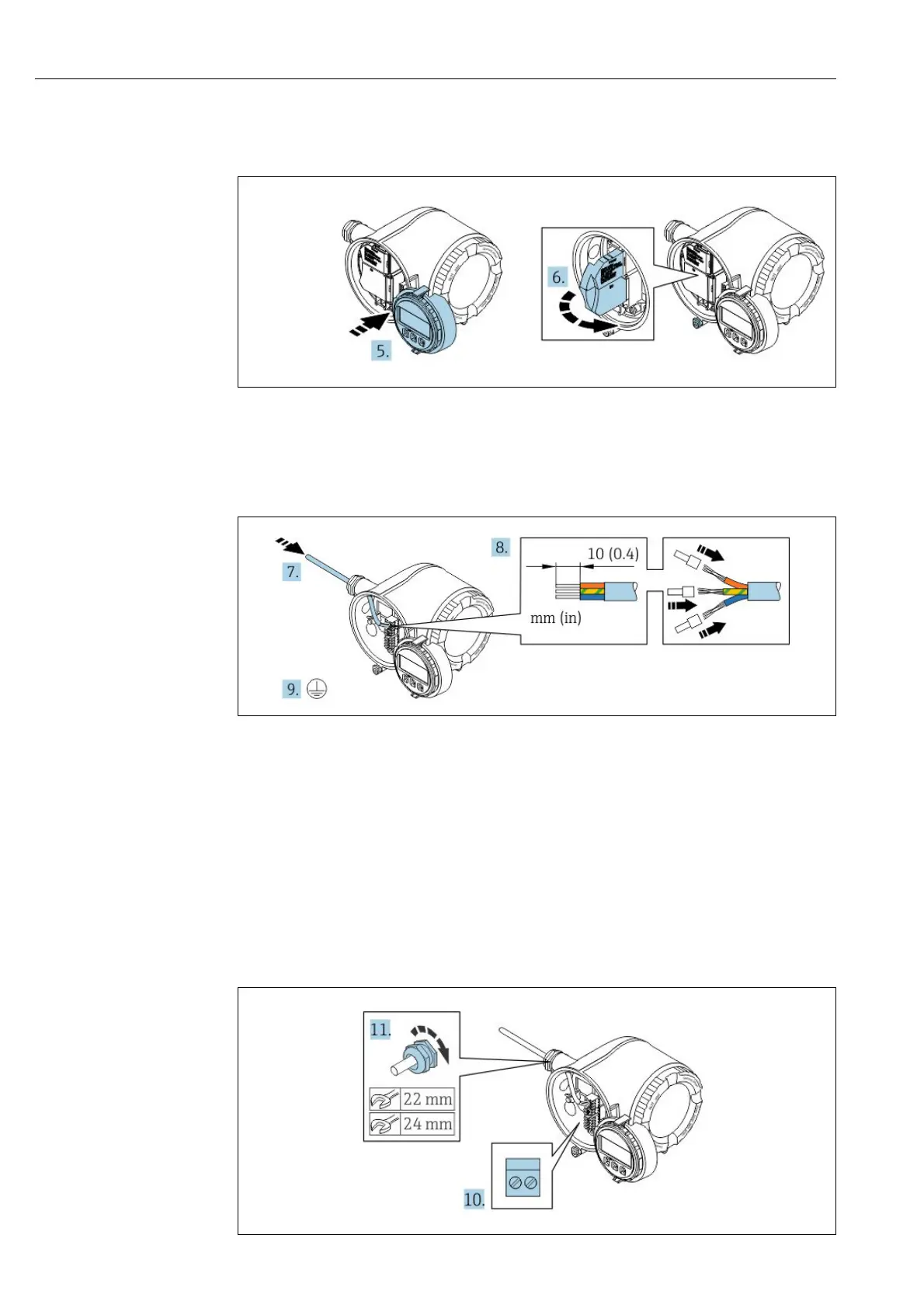

5. Attach the holder to the edge of the electronics compartment.
6. Open the terminal cover.
A0029814
7. Push the cable through the cable entry . To ensure tight sealing, do not
remove the sealing ring from the cable entry.
8. Strip the cable and cable ends. In the case of stranded cables, also fit ferrules.
9. Connect the protective ground.
A0029815
10. Connect the cable in accordance with the terminal assignment.
Signal cable terminal assignment: The device-specific terminal
assignment is documented on an adhesive label in the terminal cover.
Supply voltage terminal assignment: Adhesive label in the terminal cover
or → 34.
11. Firmly tighten the cable glands.
This concludes the cable connection process.
12. Close the terminal cover.
13. Fit the display module holder in the electronics compartment.
14. Screw on the connection compartment cover.
15. Secure the securing clamp of the connection compartment cover.
A0029816
