Remote Device (RD) Instruction
The RD1 though RD10 instructions are used to send commands to a remote Ethernet TCP device.
Each RD instruction can contain up to 16 command messages. Remote Devices and commands are
user-defined and are set up from the Remote Device Set up screen.
A general purpose timer can be used to delay the action of this instruction. If a timer is not selected
the ‘minutes’ and ‘seconds’ list boxes are disabled and no delay will occur.

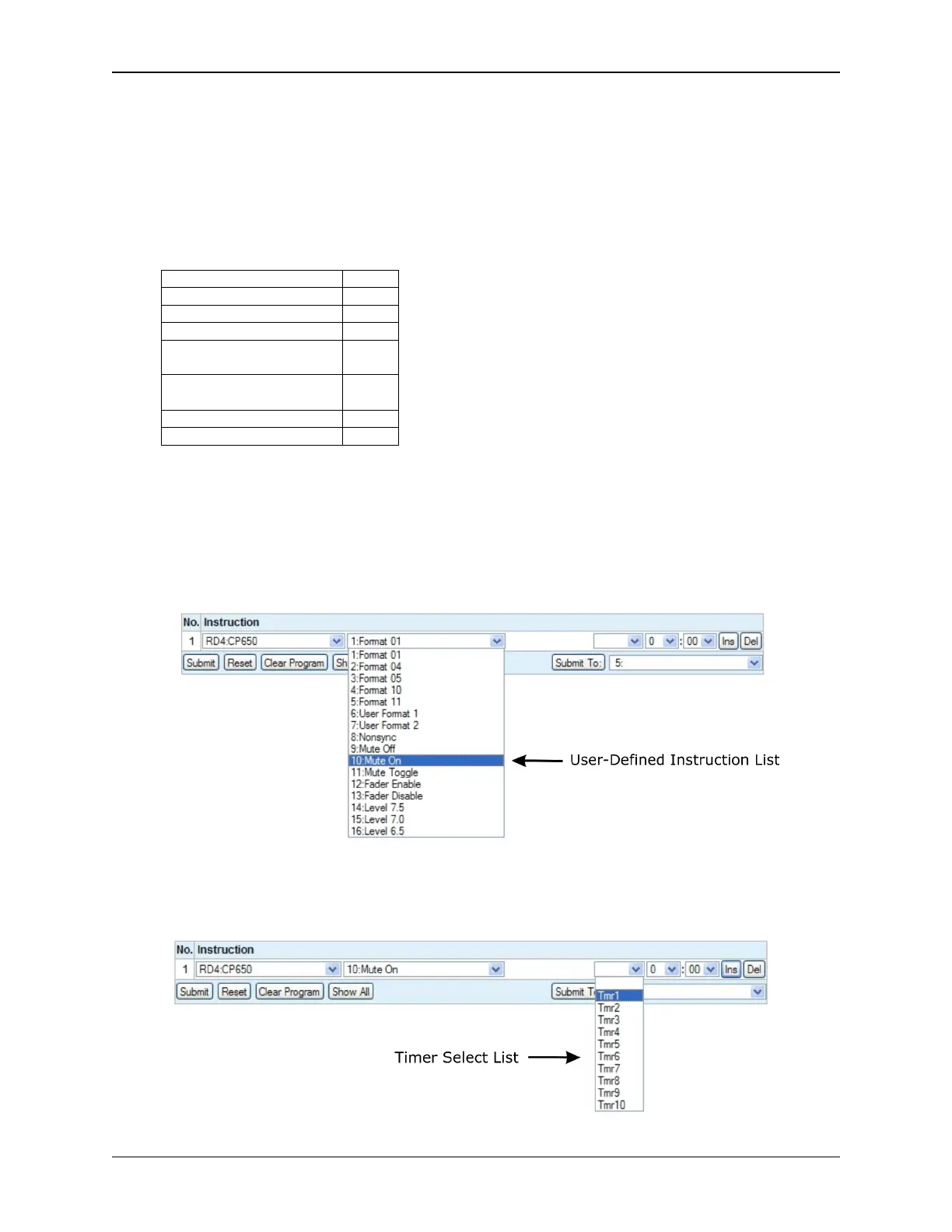

RD1: m1 d1: m2 m3 dd:dd
RD2: m1 d1: m2 m3 dd:dd
RD3: m1 d1: m2 m3 dd:dd
RD4: m1 d1: m2 m3 dd:dd
RD5: m1 d1: m2 m3 dd:dd
RD6: m1 d1: m2 m3 dd:dd
RD7: m1 d1: m2 m3 dd:dd
RD8: m1 d1: m2 m3 dd:dd
RD9: m1 d1: m2 m3 dd:dd
RD10: m1 d1: m2 m3 dd:dd
m1 = Remote Device Name
d1 = Message Number
m2 = Message Name
m3 = Tmr1 to Tmr15
dd:dd = 0:00 to 99:99 (minutes:seconds)
