Epson Aculaser c9100 - Page 209

Installing Options 209
6
6
6
6
6
6
6
6
6
6
6
6

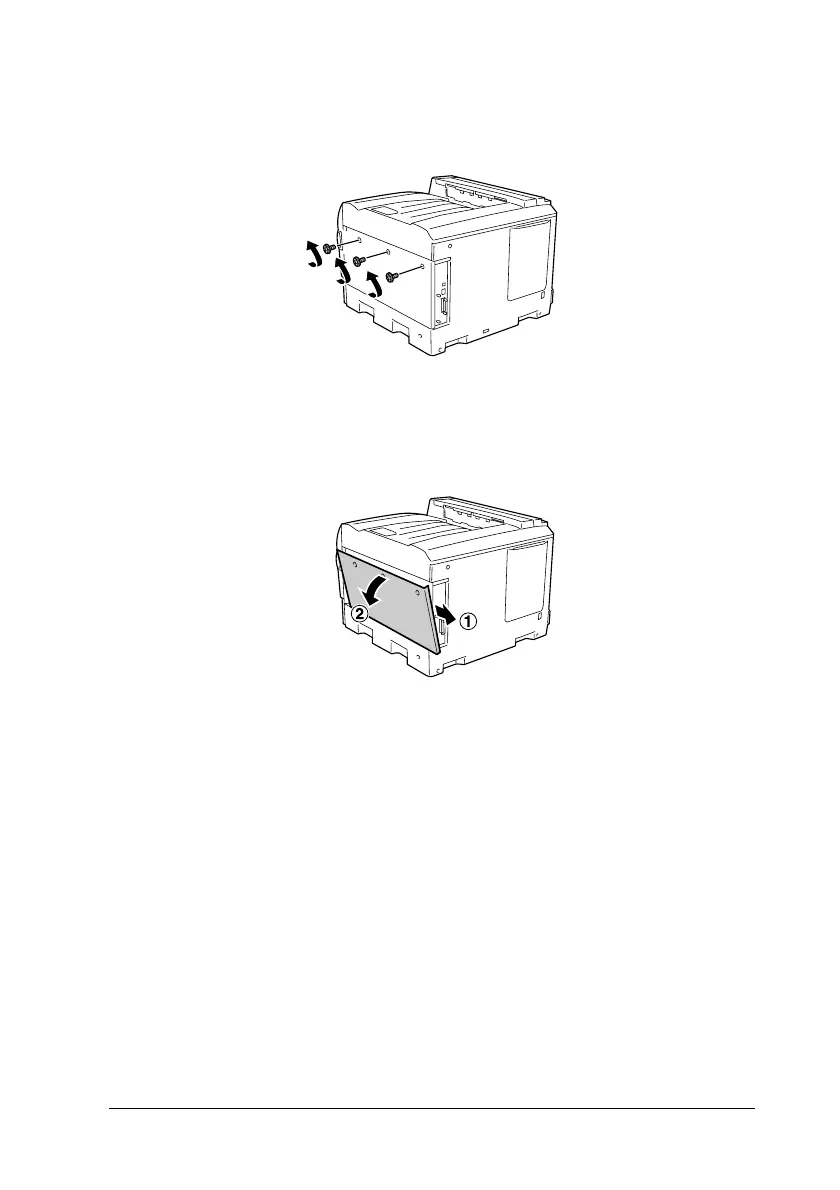

2. Remove the three screws from the cover on the right side of
the printer.
s
3. Slide the cover backward. Then tilt it toward you and remove
it.
w
Warning:
When you open the right side cover, be careful not to touch
the areas surrounding the caution label on the circuit board
since the areas may be very hot.
