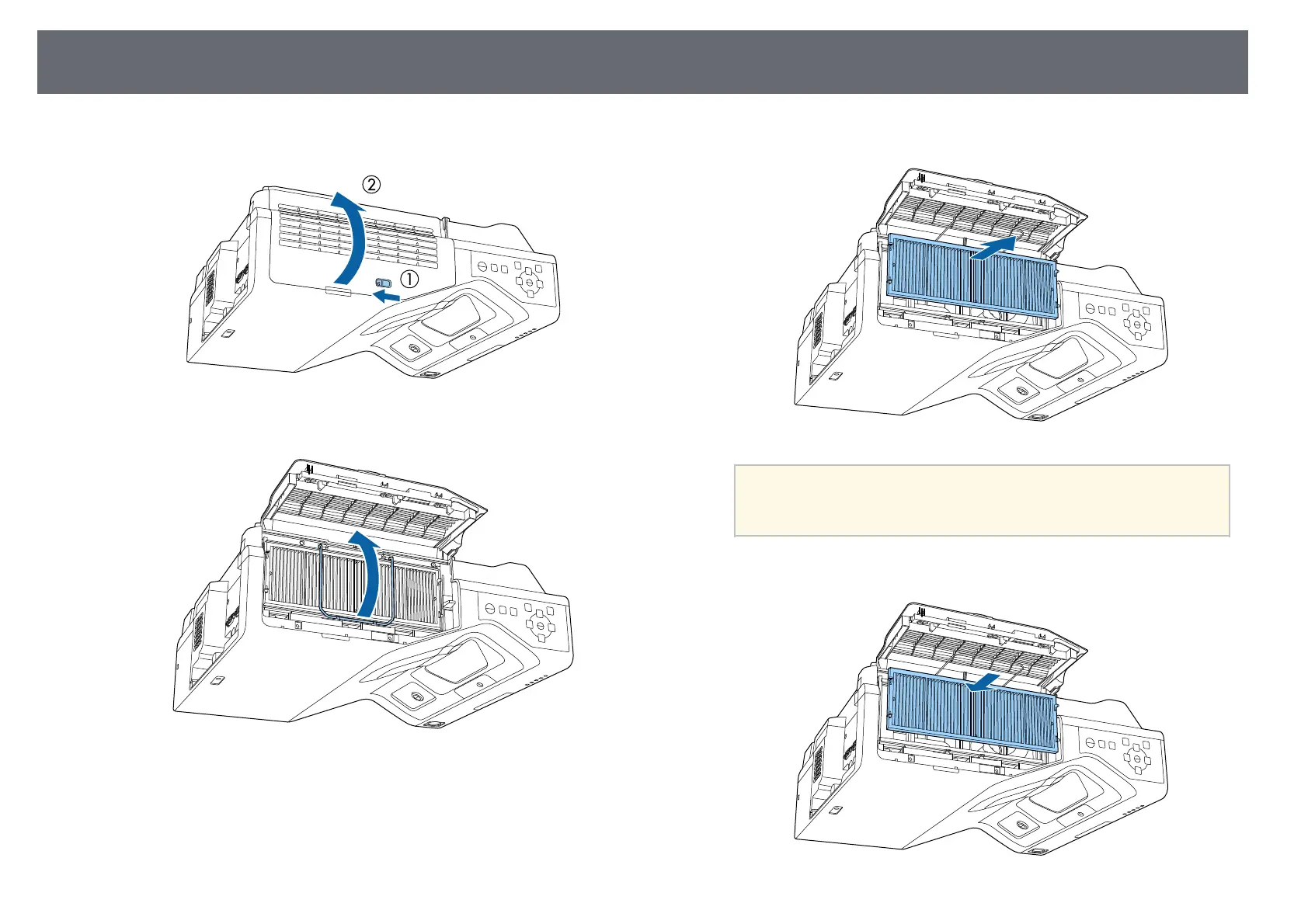

Air
Filter
and
Vent
Maintenance
257
b
Slide
the
air
filter
cover
latch
and
open
the
air
filter
cover.
c
Open
the
stopper.
d
Pull
the
air
filter
out
of
the
projector.
a
Dispose
of
used
air
filters
according
to
local
regulations.
•
Filter
frame:
Polypropylene
•
Filter:
Polypropylene,
PET
e
Place
the
new
air
filter
in
the
projector
as
shown.
