SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 153
Confidential
3.4.5.15 CIRCULATION PUMP ASSY
1. Perform the Ink eject.
2. Remove the PRINTER COVER. (p72)
3. Remove the RIGHT HOUSING PLATE. (p74)
4. Remove the RIGHT COVER ASSY. (p88)
5. Remove the LEFT HOUSING PLATE. (p73)
6. Remove the LEFT COVER ASSY. (p86)
7. Remove the REAR COVER SUB ASSY. (p77)
8. Remove the REAR COVER. (p79)
9. Remove the two screws, and remove the TUBE ASSY.
A) Silver M2.5x16 Bind machine screw (Bit No.1): 2 pcs
10. Remove the two screws, tube of the LEFT INK HOLDER ASSY.
B) Silver M3x10 Bind machine screw: 2 pcs
11. Release the cables from the clamp.

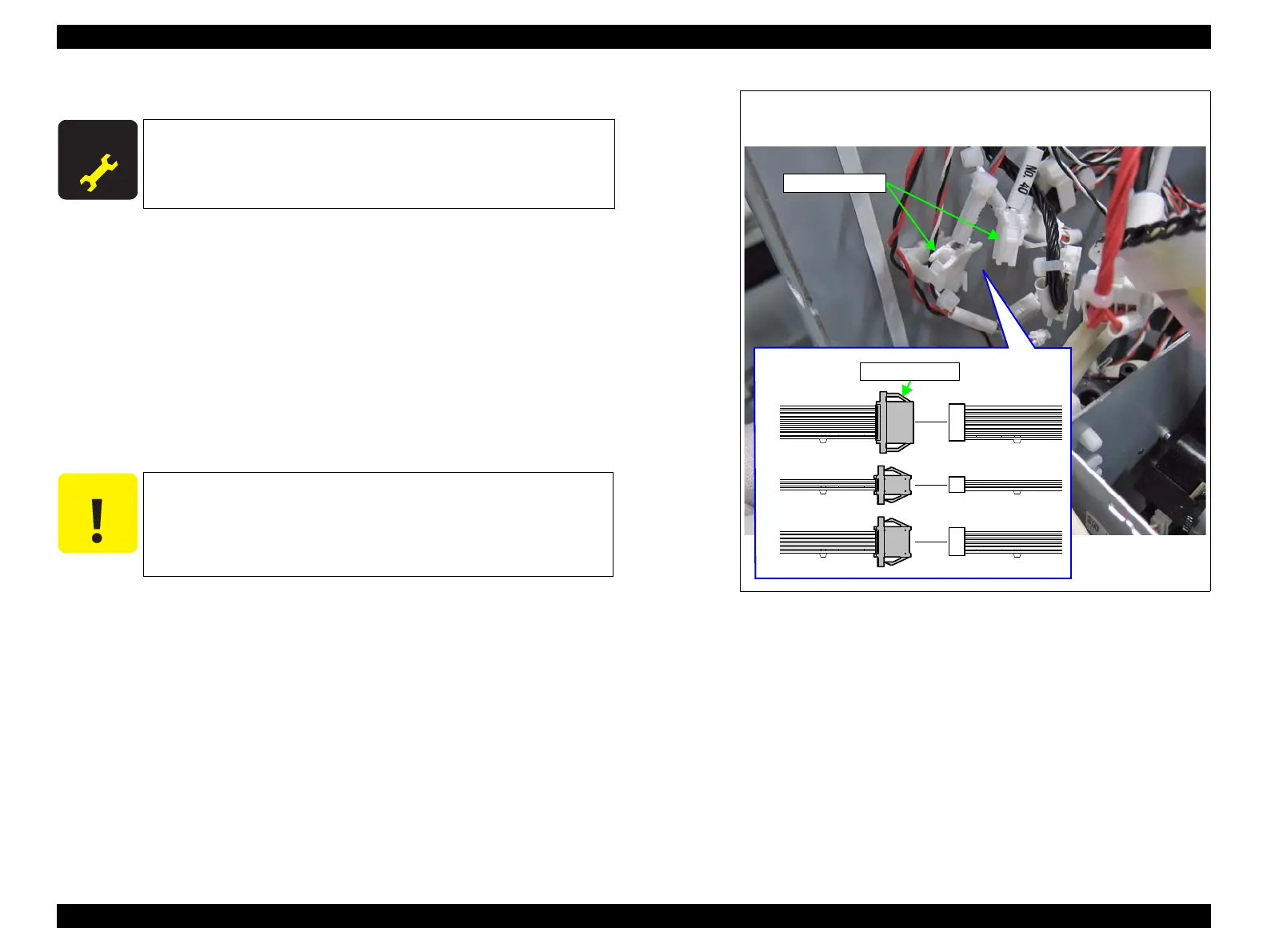

12. Disconnect the cables from the relay connectors (No.40, No.41).
13. Remove the three screws, and remove the CIRCULATION PUMP ASSY.
C) Silver M3x6 Cup S-tite screw: 3 pcs
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p194) and make sure to
perform the specified operations including required adjustment.
When the tubes is removed at the following step, ink may drip
off from the tubes. Prepare a waste cloth or the like in advance
and be careful not to contaminate the surroundings.
When replacing the CIRCULATION PUMP ASSY, keep the
joints of the tubes up. Otherwise ink may leak.
Do not remove the relay connectors together with the cables
because they are not regarded as ASP.
To Next Page
