1.7 Printable Area
<ANK/Multilingual model>
79.5
±
0.5 mm
3 mm
512 dots
0.141 mm
72.2 mm (dot #1
∼
#512)
4.3 mm
<80 mm {3.15"} paper width model>
384 dots
59.5
±
0.5 mm
3 mm
0.141 mm
54.1 mm (dot #1
∼
#384)
2.4 mm
<60 mm {2.36"} paper width model>
360 dots
57.5
±
0.5 mm
3 mm
0.141 mm
50.8 mm (dot #1
∼
#360)
3.7 mm
<58 mm {2.28"} paper width model>

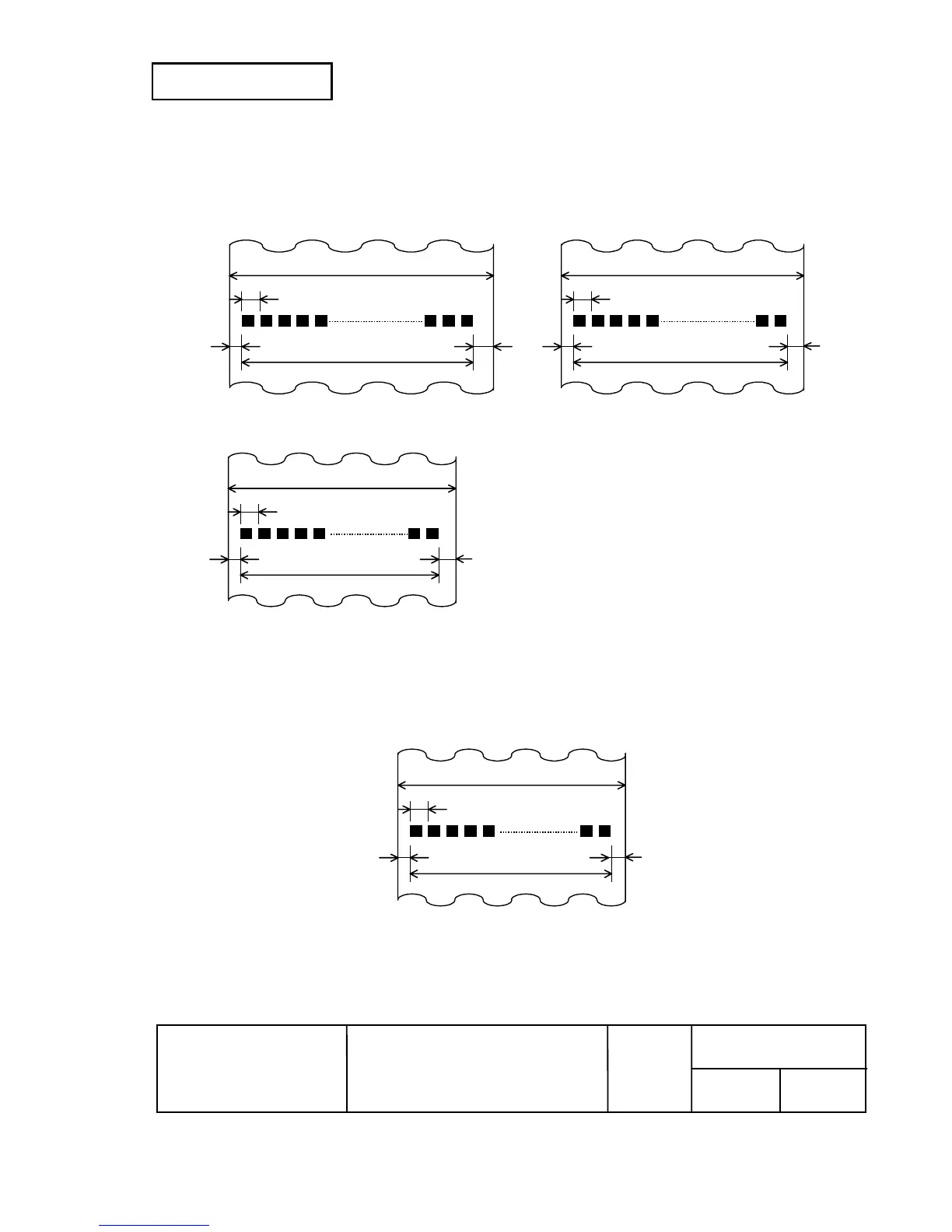

Figure 1.7.1 Printable Area for ANK/Multilingual Model
<Japanese model for default setting>
420 dots
57.5
±
0.5 mm
2.65 mm
0.125 mm
52.5 mm (dot #1
∼
#420)
2.35 mm
<58 mm {2.28"} paper width model>
Figure 1.7.2 Printable Area for Japanese Model (for Default Setting)
