Epson TM-T90 - Printing and Cutting Positions

Confidential
EPSON
TITLE SHEET
REVISION
NO.
SHEET NEXT
F
TM-T90
Specification
(STANDARD)
11 10
<Japanese model when the paper width is changed>
79.5
±
0.5 mm
2.65 mm
576 dots
0.125 mm
72 mm (dot #1 ~ #576).
4.85 mm
<80 mm {3.15"} paper width model>
436 dots
59.5
±
0.5 mm
2.65 mm
0.125 mm
54.5 mm (dot #1 ~ #436)
2.35 mm
<60 mm {2.36"} paper width model>

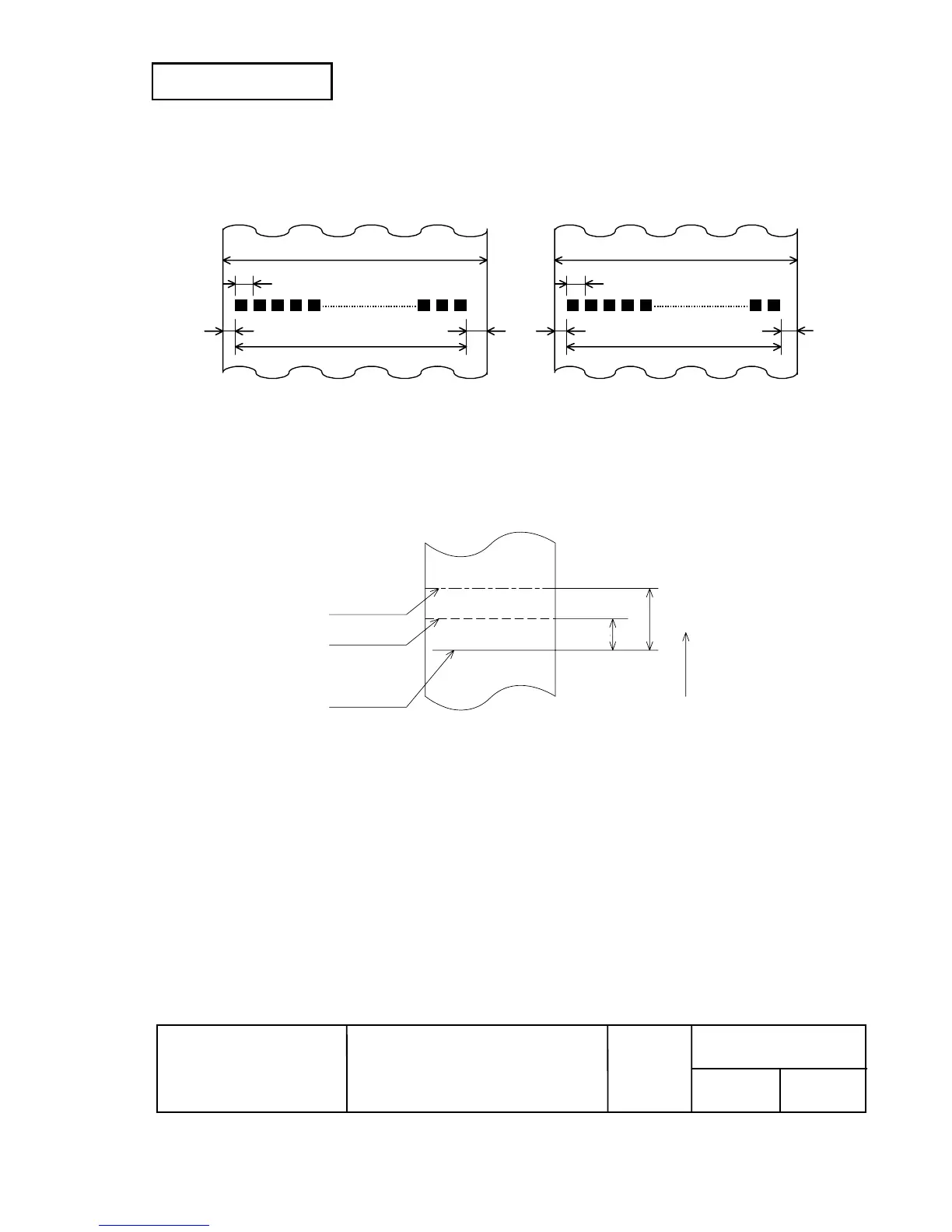

Figure 1.7.3 Printable Area for Japanese Model (When the Paper Width Is Changed)
NOTE: The numeric values used here are center values to be used in designing. The printable area
may be out of alignment by 2 mm maximum to the left or right, due to the paper position or
tolerance of parts.
1.8 Printing and Cutting Positions
Paper feed direction
[ Units: mm (All the numeric values are typical.) ]
Center of the print dotline
Auto-cutter blade position
Manual-cutter position
14.8
26.3
Figure 1.8.1 Printing and Cutting Positions
NOTE: Numeric values used here are center values to be used in designing. The values may vary
slightly as a result of paper slack or variations in the paper. Take this into account when
setting the cutting position of the autocutter.
Approx. 29
Approx. 14
