2.2 Connectors
2.2.1 Interface Connectors
Refer to Section 2.1, Interfaces.
2.2.2 Power Supply Connector
This connector is used to connect the printer to an external power source.
1) Pin assignments: Refer to Table 2.2.1.
Table 2.2.1 Power Supply Connector Pin Assignments
Pin Number Signal Name
1 +24 V
2 GND
3 NC
SHELL Frame GND
SHELL

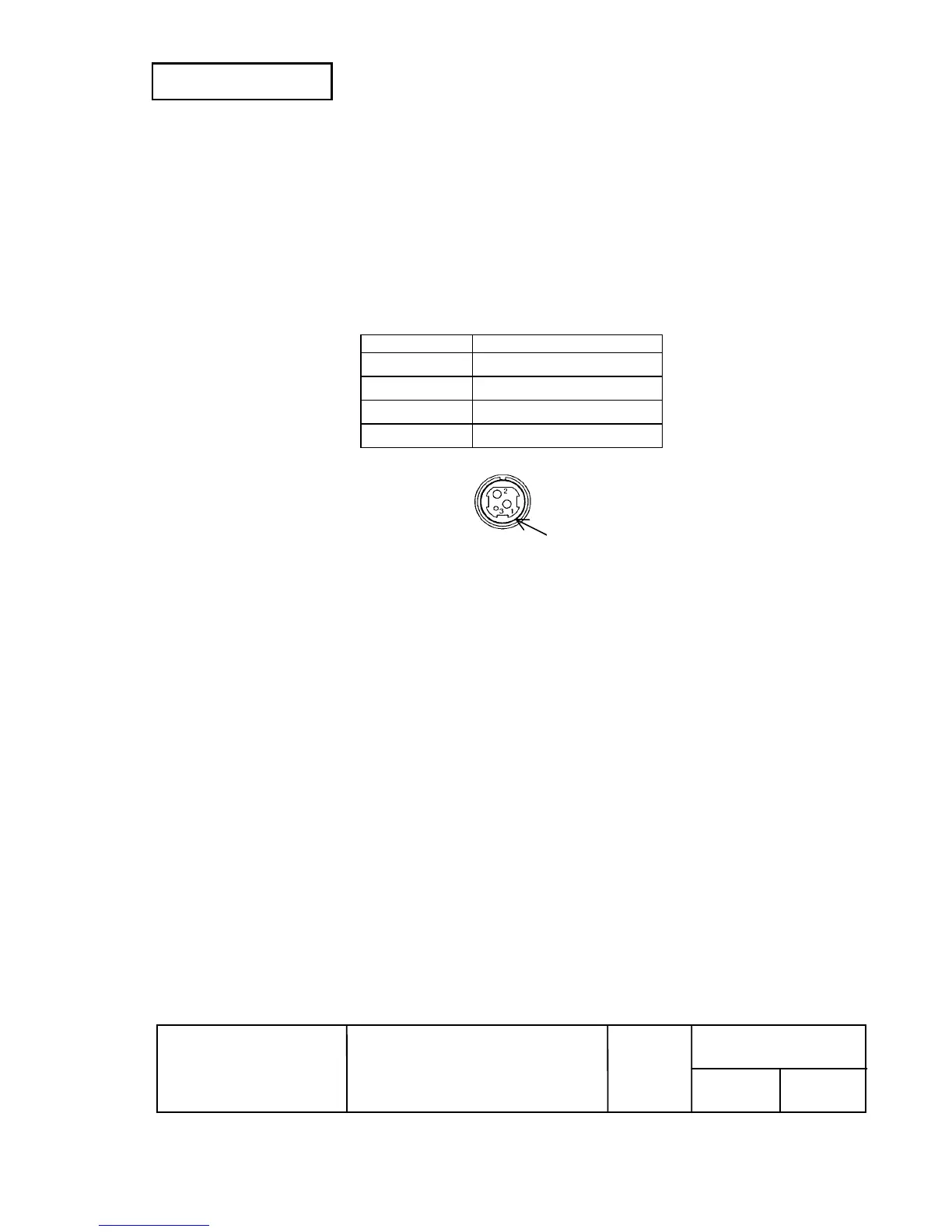

Figure 2.2.1 Power Supply Connector
NOTE: Be sure to ground the metal of the interface using the hole for the frame ground.
2) Connector model: Printer side: Hosiden TCS7960-532010 or equivalent
User side: Hosiden TCP8927-631100 or equivalent
Hosiden TCP8927-531100 or equivalent
