5-32

Assembly

Step

Assembly ProcedurePart Name

Main Assembly 9 Paper Guide (Upper) Attachment

1 Paper guide (upper)

CCS-tite (M2.5 x 4) x 1

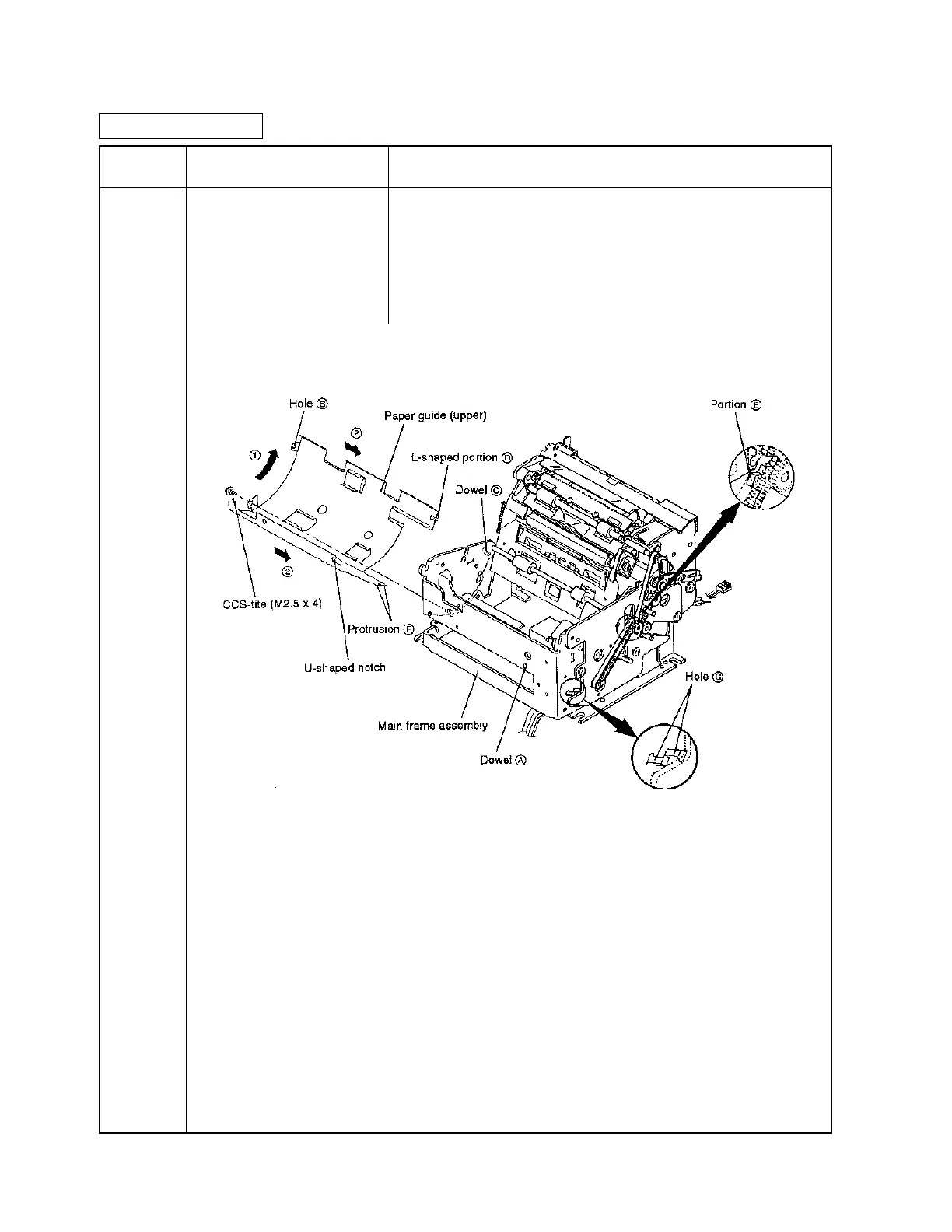

• Insert the Paper guide (upper) from the front of the Main frame

assembly (➡ 1 direction). Move the paper guide in ➡ 2 direction, and

align the U-shaped notch with dowel A, hole B with dowel C, L-shaped

portion D with portion E, and protrusions F with holes G; then tighten

the screw.
