5-57
Assembly
Step
Assembly ProcedurePart Name

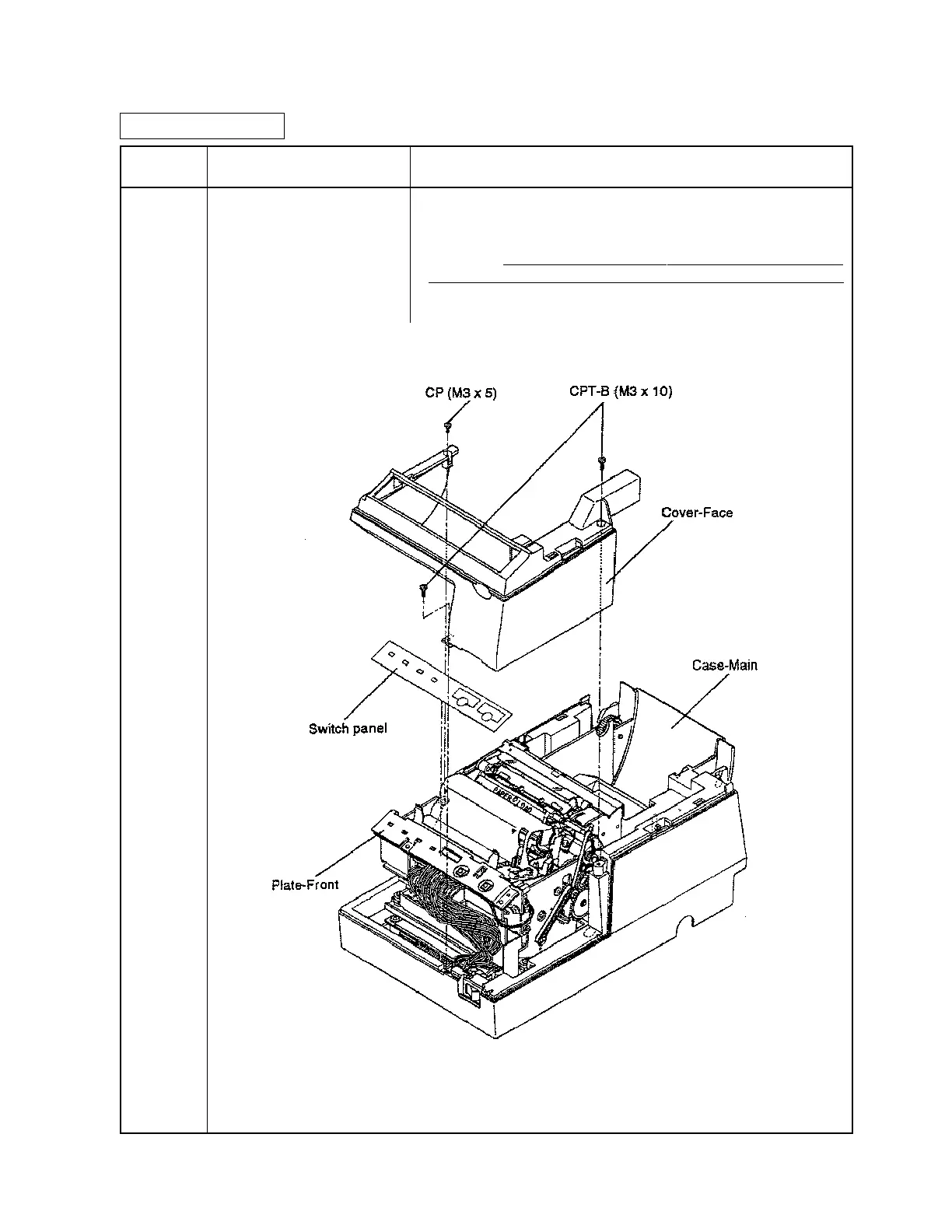

Main Assembly 9 Switch Panel and Cover-Face Attachment
1
2
Switch panel
Cover-Face
CPT-B (M3 x 10) x 2
CP (M3 x 5) x 1
• Remove any dust or dirt from the Switch panel's mounting surface on
the Plate-Front; then paste the panel along the edge of the plate.
• Attach the Cover-Face to the Case-Main, and secure the cover with
the screws.
Hold the curved side of the Cover-Face and Plate-Front
with your hand not to push them down when tightening the CP screw.
CONFIDENTIAL
To Next Page
