5-59
Assembly
Step
Assembly ProcedurePart Name

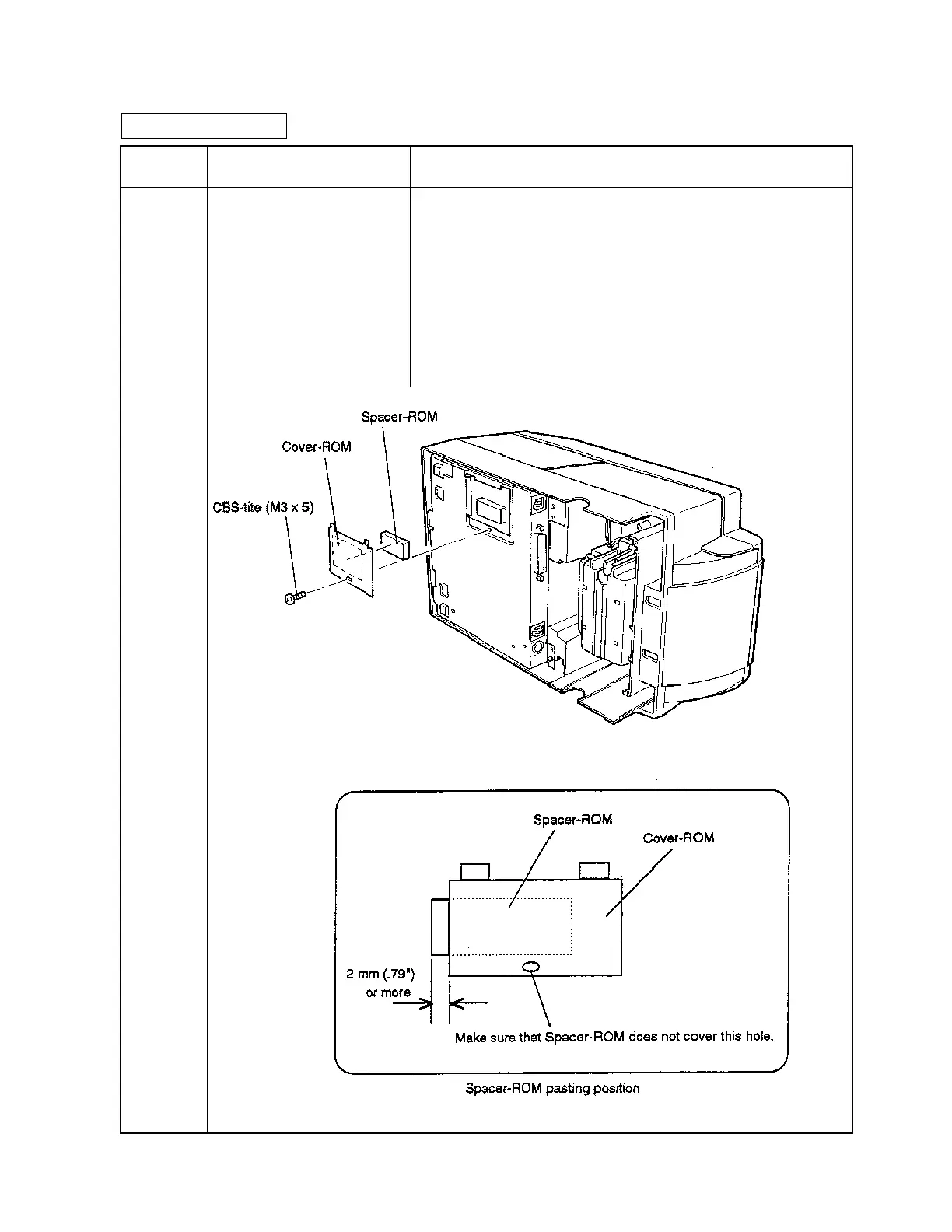

Main Assembly 11 Cover-ROM Attachment
1
2
★
Spacer-ROM
Cover-ROM
CBS-tite (M3 x 5) x 1
• Remove any dust or dirt from the Spacer-ROM mounting location on
the Cover-ROM.
• Paste the Spacer-ROM in place as shown in the extended illustration.
• Move the Cover-ROM fully to the ➡ direction, and secure the Cover-
ROM on the bottom of the printer with the screw.
<Checkpoint>
• Make sure to move the Cover-ROM fully to the ➡ direction.
CONFIDENTIAL
To Next Page
