EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 346
Confidential

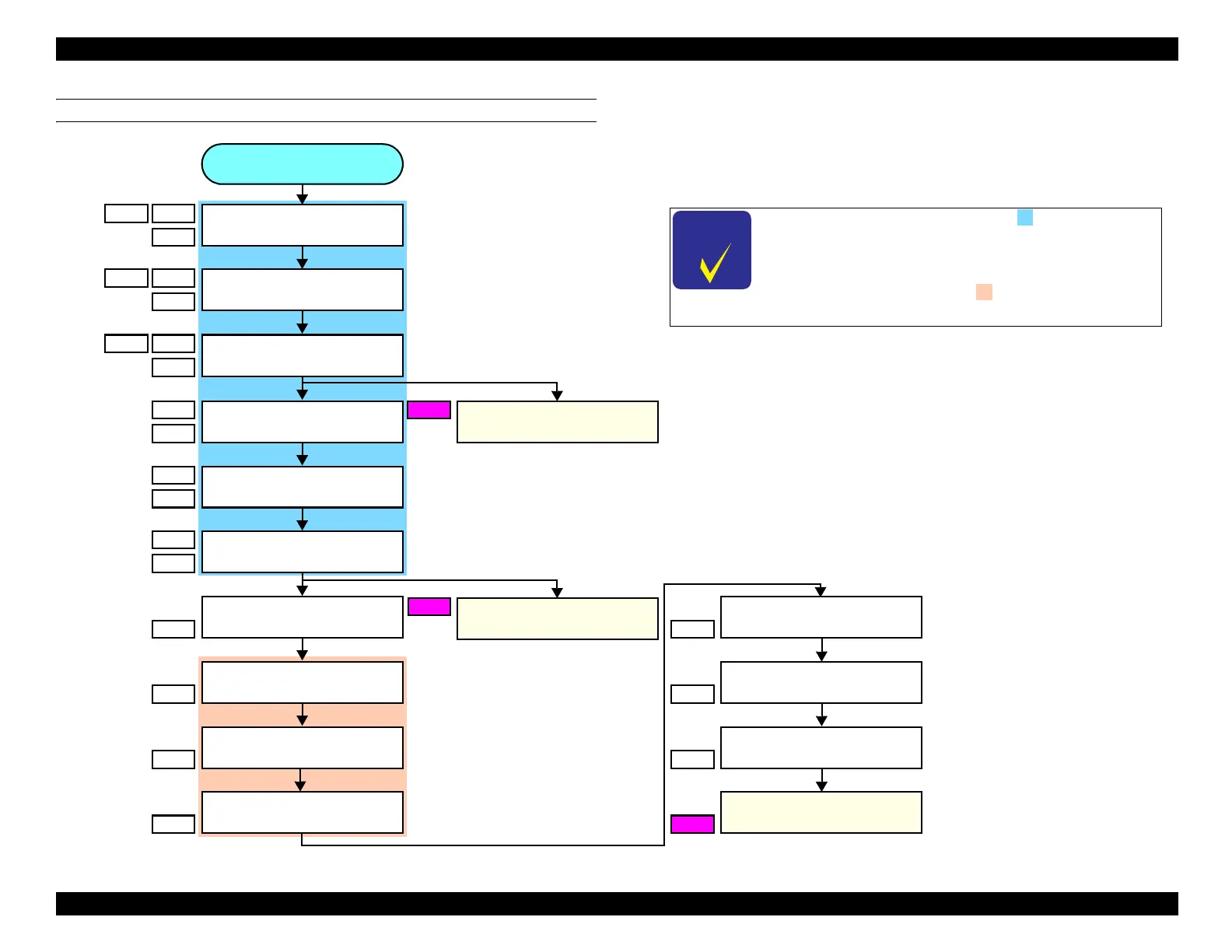

DISASSEMBLY FLOWCHART
Rear Cover (Back)
(→P. 347)
A1
C1
B1
Start
Start
ASF Front Cover
(→P. 347)
Housing Left
(→P. 348)
Ink Eject Cover
(→P. 350)
Housing Right
(→P. 350)
Cable Guide
(→P. 352)
Housing Upper
(→P. 351)
ADF/SCN Unit
(→P. 353)
Hinge Assy
(→P. 354)
Hinge Lower Cover
(→P. 354)
Relay Board Assy
(→P. 348)
A4
A2
C2
B2
A3
C3
B3
C4
B4
C5
B5
C6
B6
C8
C9
C10
Speaker Assy
(→P. 351)
B7
Rear ASF Assy
(→P. 355)
PS Ground Plate
(→P. 356)
Rear ASF Upper Guide
Assy (→P. 356)
C12
C13
C11
Power Supply Assy
(→P. 357)
C14
C H E C K
P O I N T
 As for the procedure indicated by , refer to 6.2.4.4
Housing (WF-C5200 Series) (2) (p. 254) in the case of
the WF-C5200 Series, and remove the parts from the
Rear Back Cover to the Housing Top.
 The procedure indicated by is applicable only in the
WF-C5700 Series/ET-8700.
C7

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
