7.18.1. Channel 1
7.18.1.1. Source X

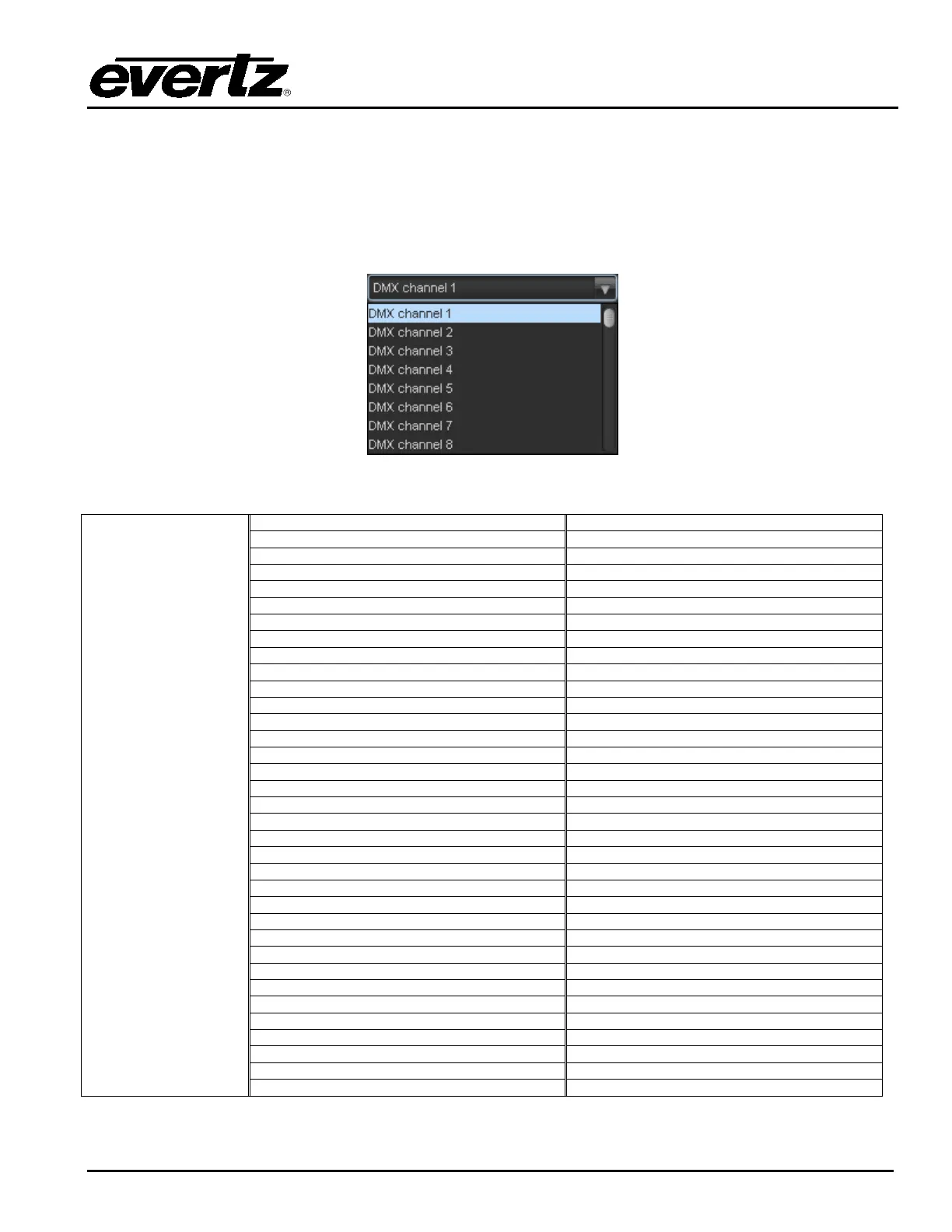

The Source X control enables the user to route one of the 16 internally processed input audio channels to
the X input of the Channel mixer. The user can select the channel source by selecting the desired
channels from the Source X drop down menu as shown below.
The full set of available channel options is listed below.
Source X Input
Mute
Mono mix DMX channels 1 and 2
DMX Channel 1
Mono mix DMX channels 3 and 4
DMX Channel 2
Mono mix DMX channels 5 and 6
DMX Channel 3
Mono mix DMX channels 7 and 8
DMX Channel 4
Mono mix DMX channels 9 and 10
DMX Channel 5
Mono mix DMX channels 11 and 12
DMX Channel 6
Mono mix DMX channels 13 and 14
DMX Channel 7
Mono mix DMX channels 15 and 16
DMX Channel 8
Down Mix L
DMX Channel 9
Down Mix R
DMX Channel 10
Down Mix Mono
DMX Channel 11
Up Mix L Front
DMX Channel 12
Up Mix R Front
DMX Channel 13
Up Mix Center
DMX Channel 14
Up Mix LFE
DMX Channel 15
Up Mix L Surround
DMX Channel 16
Up Mix R Surround
AES 1.A
Up Mix Stereo Pass L
AES 1.B
Up Mix Stereo Pass R
AES 2.A
IntelliGain 1 Channel 1
AES 2.B
IntelliGain 1 Channel 2
AES 3.A
IntelliGain 1 Channel 3
AES 3.B
IntelliGain 1 Channel 4
AES 4.A
IntelliGain 1 Channel 5
AES 4.B
IntelliGain 1 Channel 6
AES 5.A
IntelliGain 1 Channel 7
AES 5.B
IntelliGain 1 Channel 8
AES 6.A
IntelliGain 2 Channel 1
AES 6.B
IntelliGain 2 Channel 2
AES 7.A
IntelliGain 2 Channel 3
AES 7.B
IntelliGain 2 Channel 4
AES 8.A
IntelliGain 2 Channel 5
AES 8.B
IntelliGain 2 Channel 6
IntelliGain 2 Channel 7
IntelliGain 2 Channel 8
