evertz MultiFrame 7814 Series - Program Configuration Control; Figure 7-34: Program 1 Configuration View

7800/7700 MultiFrame Manual
7814 Series Dual HDTV Up/Down/Cross Converters
Revision 1.1.3 Page - 121

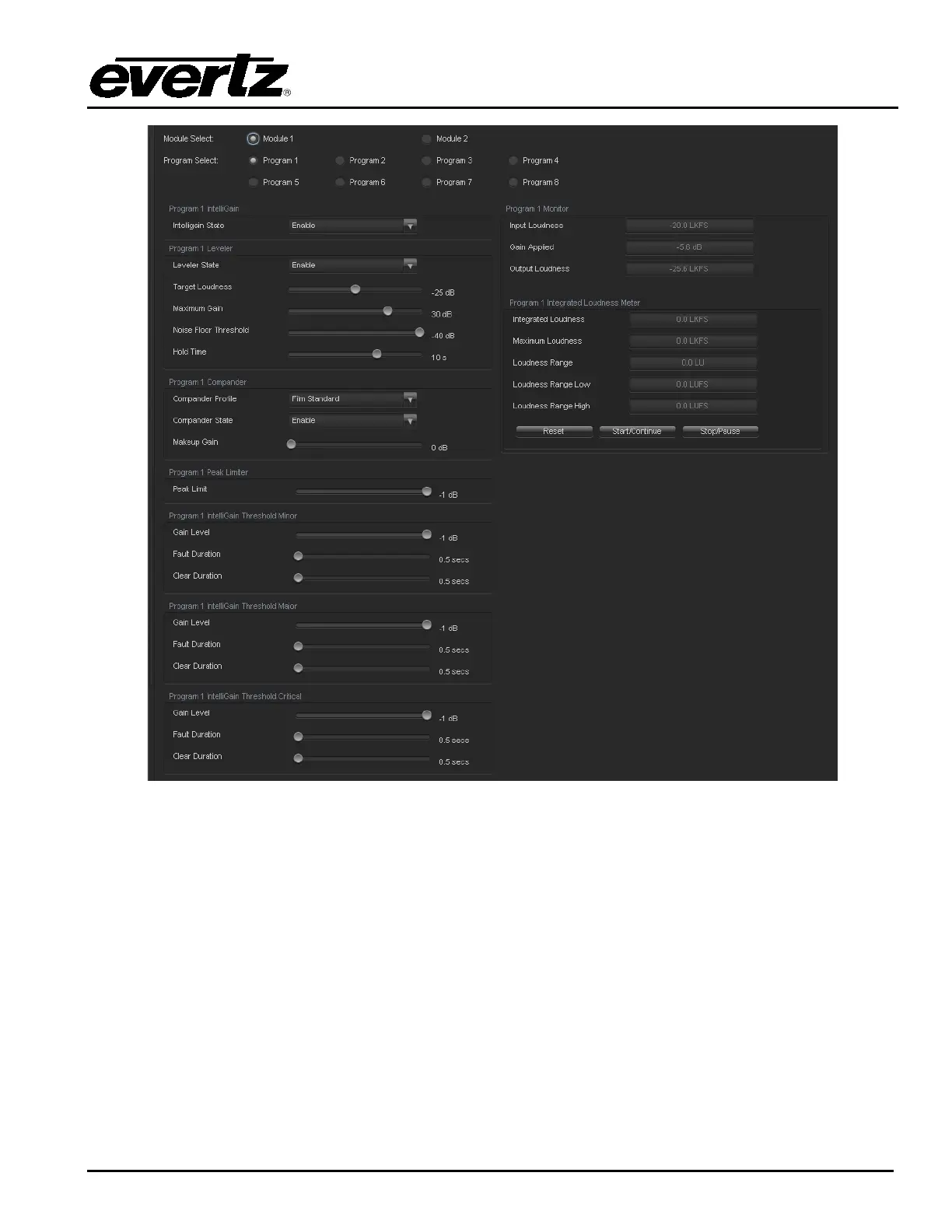

Figure 7-34: Program 1 Configuration View
7.26.1. Program Configuration Control
As IntelliGain detects valid audio programs, the VistaLINK
®
program configuration tabs will become
activated. The user interface and program configuration tabs are identical.
Sections 7.26.2 to 7.26.7.3 provide detailed explanations for each control available in the Program
Configuration tab. Since each program configuration interface is identical, only Program 1 will be
described.
