evertz MultiFrame 7814 Series - Figure 7-20: Pictorial Representation

7800/7700 MultiFrame Manual
7814 Series Dual HDTV Up/Down/Cross Converters
Revision 1.1.3 Page - 73
7.12.4.1. AFD Stamp
The AFD Stamp control allows the user to specify the AFD signal that will be stamped on the output
signal when the AFD Stamp Source control (within the AFD Control tab) is set to User AFD Stamp. It is
possible to stamp the following AFD values.
16:9 frame, code ‘0010’
AFD code 16:9 frame, code ‘0010’ will be inserted into the outgoing video.
16:9 frame, code ‘0011’
AFD code 16:9 frame, code ‘0011’ will be inserted into the outgoing video.
16:9 frame, code ‘0100’
AFD code 16:9 frame, code ‘0100’ will be inserted into the outgoing video.
16:9 frame, code ‘1000’
AFD code 16:9 frame, code ‘1000’ will be inserted into the outgoing video.
16:9 frame, code ‘1001’
AFD code 16:9 frame, code ‘1001’ will be inserted into the outgoing video.
16:9 frame, code ‘1010’
AFD code 16:9 frame, code ‘1010’ will be inserted into the outgoing video.
16:9 frame, code ‘1011’
AFD code 16:9 frame, code ‘1011’ will be inserted into the outgoing video.
16:9 frame, code ‘1101’
AFD code 16:9 frame, code ‘1101’ will be inserted into the outgoing video.
16:9 frame, code ‘1110’
AFD code 16:9 frame, code ‘1110’ will be inserted into the outgoing video.
16:9 frame code ‘1111’
AFD code 16:9 frame code ‘1111’ will be inserted into the outgoing video.
4:3 frame, code ‘0010’
AFD code 4:3 frame, code ‘0010’ will be inserted into the outgoing video.
4:3 frame, code ‘0011’
AFD code 4:3 frame, code ‘0011’ will be inserted into the outgoing video.
4:3 frame, code ‘0100’
AFD code 4:3 frame, code ‘0100’ will be inserted into the outgoing video.
4:3 frame, code ‘1000’
AFD code 4:3 frame, code ‘1000’ will be inserted into the outgoing video.
4:3 frame, code ‘1001’
AFD code 4:3 frame, code ‘1001’ will be inserted into the outgoing video.
4:3 frame, code ‘1010’
AFD code 4:3 frame, code ‘1010’ will be inserted into the outgoing video.
4:3 frame, code ‘1011’
AFD code 4:3 frame, code ‘1011’ will be inserted into the outgoing video.
4:3 frame code ‘1101’
AFD code 4:3 frame, code ‘1101’ will be inserted into the outgoing video.
4:3 frame code ‘1110’
AFD code 4:3 frame code ‘1110’ will be inserted into the outgoing video.
4:3 frame code ‘1111’
AFD code 4:3 frame code ‘1111’ will be inserted into the outgoing video.

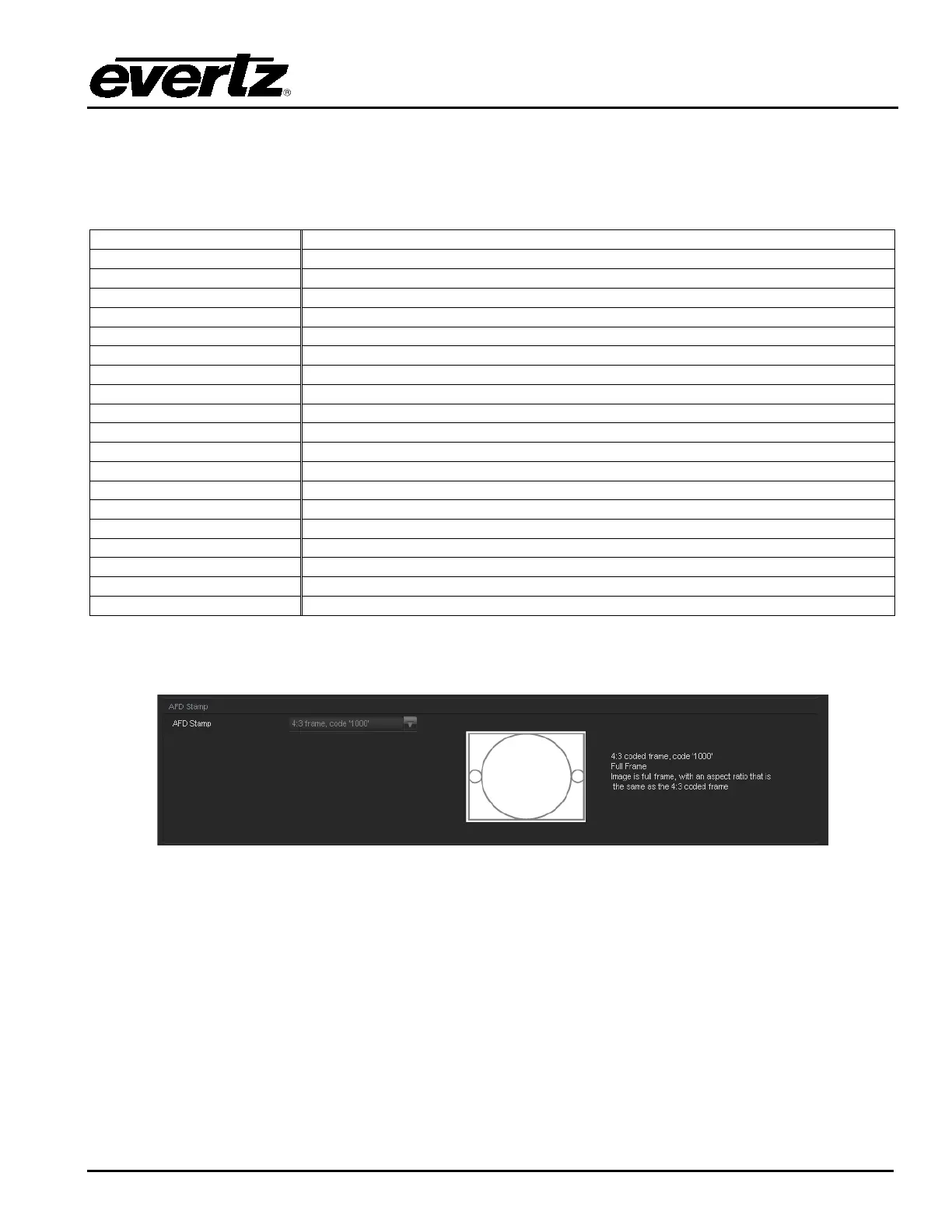

When each AFD code is selected, a pictorial representation of what the code is intended to mean (see
Figure 7-20)
Figure 7-20: Pictorial Representation
