7.2. VIDEO PROCESSING TAB
The Video Proc control menu as shown in Figure 7-3 is used to configure parameters associated with the
video processing functions of the converter. Sections 7.2.1 to 7.2.1.8 provide detailed information about
each of the menu items.

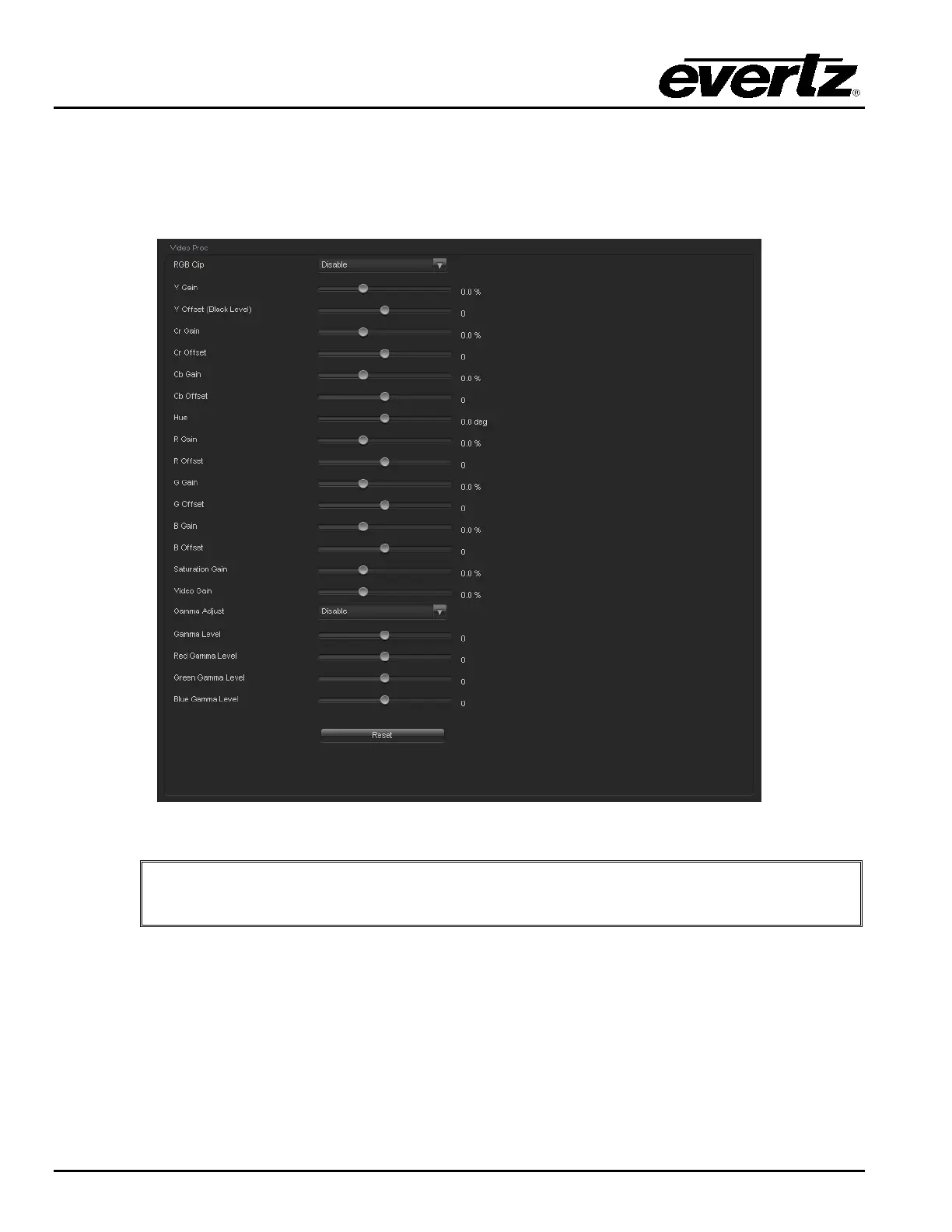

Figure 7-3: Video Proc Tab

ALL of these parameters affect the video in real time. H&V frequency bands will
cause hits to the video while a new filter is loaded.
