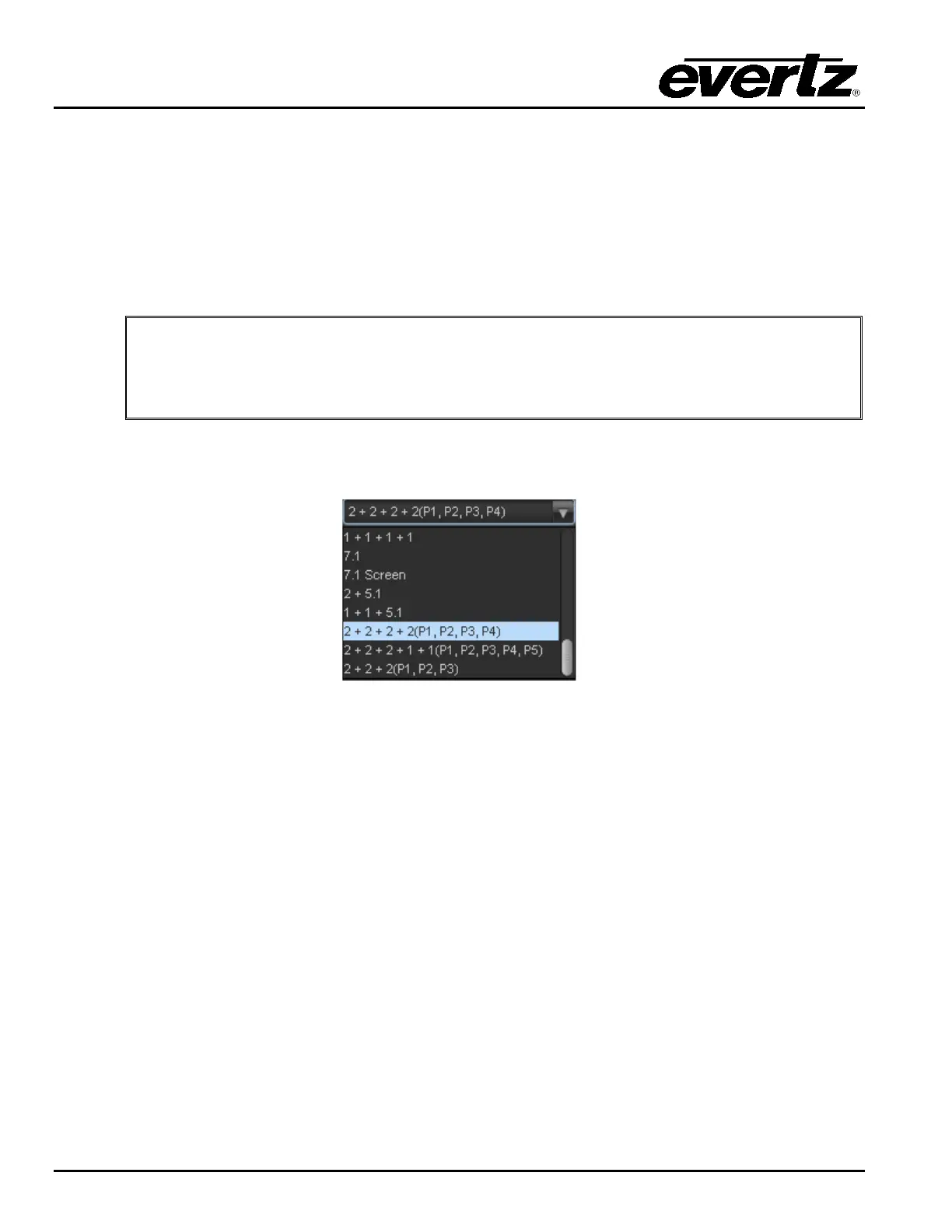

7.25.1. Configuration
7.25.1.1. Program Configuration Source
This parameter defines how the audio channels are grouped together. Up to eight channels can be
grouped together in individual programs, where each program contains its own metadata. IntelliGain
uses this parameter to configure multiple internal settings.
This control must be set to define the audio program provided as the input to IntelliGain.
Note: It is important to follow the program to channel mapping guidelines, which are provided
in Table 7-3. For example, Program Configuration Source 2 + 2 + 2 + 2 defines audio program
1 mapped to AES 1, audio program 2 mapped to AES 4, audio program 3 mapped to AES 2
and audio program 4 mapped to AES 3. Program Configuration Source 2 + 2 + 2 + 2 (p1, p2,
p3, p4) has the audio program mapped sequentially.
If the audio program configuration is defined to be of this type, it is recommended to use this Program
Configuration Source.
