evertz MultiFrame 7814 Series - Source Select Controls

7800/7700 MultiFrame Manual
7814 Series Dual HDTV Up/Down/Cross Converters
Revision 1.1.3 Page - 97
7.20.1. Source Select Controls
The Source Select section enables the user to assign a particular channel to be used as a particular audio
source in the down mix. There are six sources of audio that feeds the down-mixing process: L Source, R
Source, C Source, LFE Source, Ls Source, and Rs Source. Each of these sources can be assigned a
specific channel of audio using the appropriate drop down menu. For sake of brevity, only the L Source
selection process is shown.
7.20.1.1. Source X

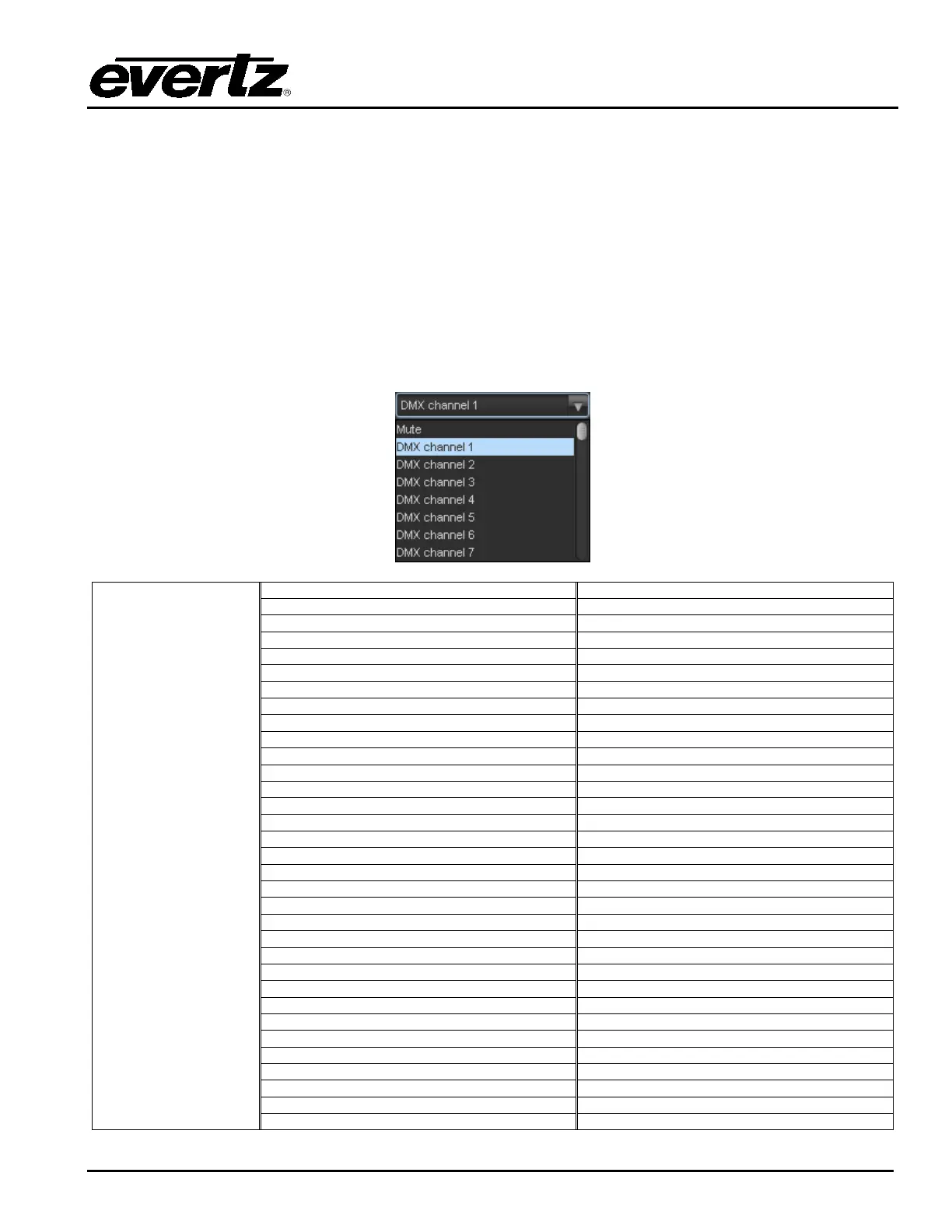

The Source X control enables the user to route one of the 16 internally processed input audio channels to
the X input of the channel mixer. The user can select the channel source by selecting the desired channel
from the Source X drop down menu as shown below.
L Source X
Mute
Mono mix channels 1 and 2
Channel 1
Mono mix channels 3 and 4
Channel 2
Mono mix channels 5 and 6
Channel 3
Mono mix channels 7 and 8
Channel 4
Mono mix channels 9 and 10
Channel 5
Mono mix channels 11 and 12
Channel 6
Mono mix channels 13 and 14
Channel 7
Mono mix channels 15 and 16
Channel 8
Up Mix L Front
Channel 9
Up Mix R Front
Channel 10
Up Mix Center
Channel 11
Up Mix LFE
Channel 12
Up Mix L Surround
Channel 13
Up Mix R Surround
Channel 14
Up Mix Stereo Pass L
Channel 15
Up Mix Stereo Pass R
Channel 16
IntelliGain 1 Channel 1
AES 1.A
IntelliGain 1 Channel 2
AES 1.B
IntelliGain 1 Channel 3
AES 2.A
IntelliGain 1 Channel 4
AES 2.B
IntelliGain 1 Channel 5
AES 3.A
IntelliGain 1 Channel 6
AES 3.B
IntelliGain 1 Channel 7
AES 4.A
IntelliGain 1 Channel 8
AES 4.B
IntelliGain 2 Channel 1
AES 5.A
IntelliGain 2 Channel 2
AES 5.B
IntelliGain 2 Channel 3
AES 6.A
IntelliGain 2 Channel 4
AES 6.B
IntelliGain 2 Channel 5
AES 7.A
IntelliGain 2 Channel 6
AES 7.B
IntelliGain 2 Channel 7
AES 8.A
IntelliGain 2 Channel 8
AES 8.B
