7800/7700 MultiFrame Manual
7814 Series Dual HDTV Up/Down/Cross Converters
Revision 1.1.3 Page - 67
7.11.2. AFD Stamp
These controls enable the user to specify the type of AFD stamp and outgoing AFD code. Depending on
the type of AFD, being used there will be a variety of selected AFD stamp codes. The AFD Stamp control
is enabled only when the AFD Stamp Source is set to User AFD Stamp. Use the AFD Stamp drop down
menu to select the appropriate out-bound AFD code. There are 20 SMPTE2016-1 AFD codes to choose
from. As each AFD code is selected, a pictorial representation of what that AFD code means is shown in
the right hand side of the screen.

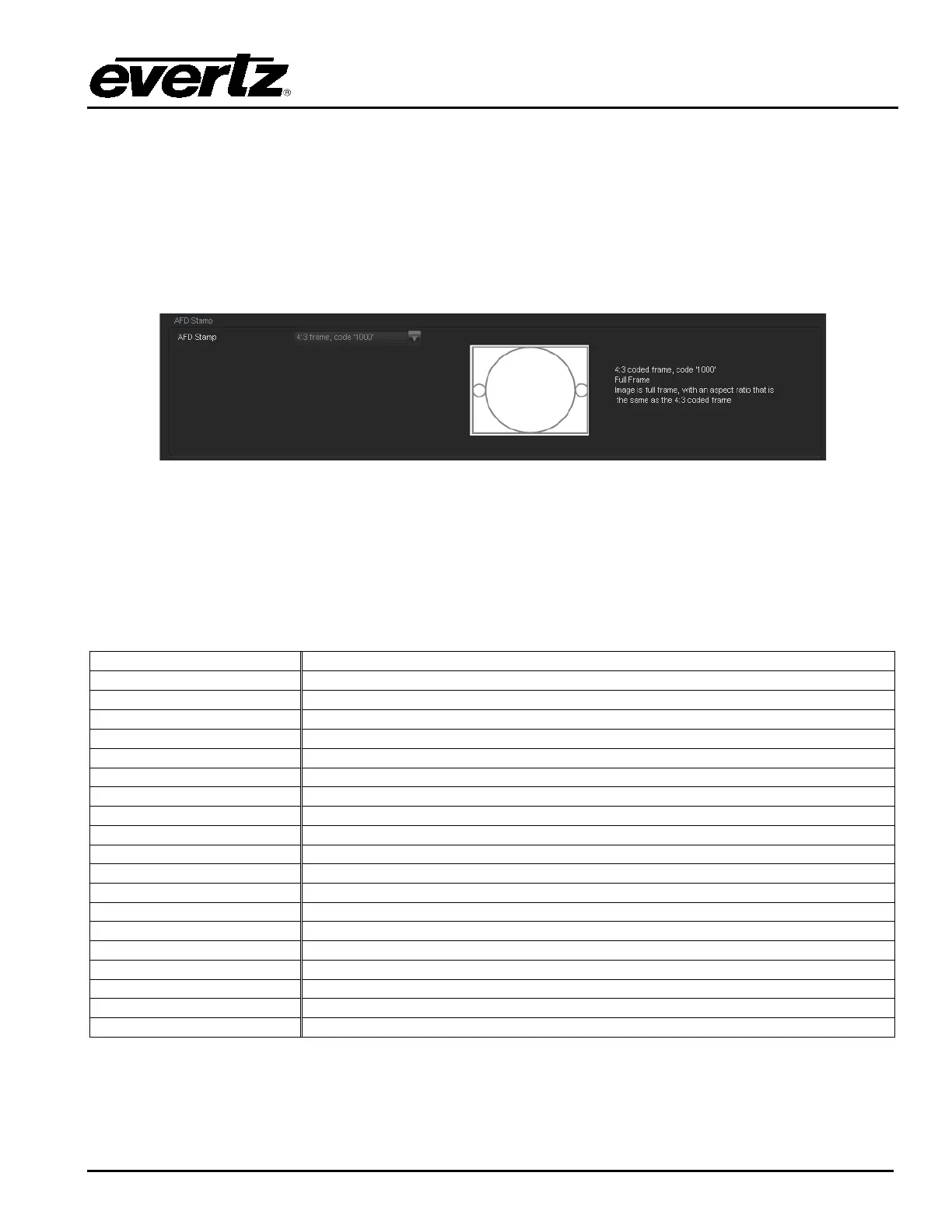

Figure 7-16: AFD Code Description
7.11.3. AFD Stamp Settings
7.11.3.1. AFD Stamp
The AFD Stamp control allows the user to specify the AFD signal that will be stamped on the output
signal when the AFD Stamp Source control (within the AFD Control tab) is set to User AFD Stamp. It is
possible to stamp the following AFD values.
16:9 frame, code ‘0010’
AFD code 16:9 frame, code ‘0010’ will be inserted into the outgoing video.
16:9 frame, code ‘0011’
AFD code 16:9 frame, code ‘0011’ will be inserted into the outgoing video.
16:9 frame, code ‘0100’
AFD code 16:9 frame, code ‘0100’ will be inserted into the outgoing video.
16:9 frame, code ‘1000’
AFD code 16:9 frame, code ‘1000’ will be inserted into the outgoing video.
16:9 frame, code ‘1001’
AFD code 16:9 frame, code ‘1001’ will be inserted into the outgoing video.
16:9 frame, code ‘1010’
AFD code 16:9 frame, code ‘1010’ will be inserted into the outgoing video.
16:9 frame, code ‘1011’
AFD code 16:9 frame, code ‘1011’ will be inserted into the outgoing video.
16:9 frame, code ‘1101’
AFD code 16:9 frame, code ‘1101’ will be inserted into the outgoing video.
16:9 frame, code ‘1110’
AFD code 16:9 frame, code ‘1110’ will be inserted into the outgoing video.
16:9 frame code ‘1111’
AFD code 16:9 frame code ‘1111’ will be inserted into the outgoing video.
4:3 frame, code ‘0010’
AFD code 4:3 frame, code ‘0010’ will be inserted into the outgoing video.
4:3 frame, code ‘0011’
AFD code 4:3 frame, code ‘0011’ will be inserted into the outgoing video.
4:3 frame, code ‘0100’
AFD code 4:3 frame, code ‘0100’ will be inserted into the outgoing video.
4:3 frame, code ‘1000’
AFD code 4:3 frame, code ‘1000’ will be inserted into the outgoing video.
4:3 frame, code ‘1001’
AFD code 4:3 frame, code ‘1001’ will be inserted into the outgoing video.
4:3 frame, code ‘1010’
AFD code 4:3 frame, code ‘1010’ will be inserted into the outgoing video.
4:3 frame, code ‘1011’
AFD code 4:3 frame, code ‘1011’ will be inserted into the outgoing video.
4:3 frame code ‘1101’
AFD code 4:3 frame, code ‘1101’ will be inserted into the outgoing video.
4:3 frame code ‘1110’
AFD code 4:3 frame code ‘1110’ will be inserted into the outgoing video.
4:3 frame code ‘1111’
AFD code 4:3 frame code ‘1111’ will be inserted into the outgoing video.
When each AFD code is selected, a pictorial representation of what the code is intended to mean (see
Figure 7-20)
