2.5. AES OUTPUTS
The –AES8 versions of 7814 series modules support 8x AES outputs per path and are interfaced using a
Multi-path Module Conversion breakout (MMX breakout) connector and a breakout cable. The part
number for the cable is # WP/1M/MMX-AUDIO. One MMX audio breakout cable is included when the –
AES8 option is ordered. The pin-out of MMX connector is shown in Table 2-3.
Pin 1 Pin 2
Female
MMX Audio
Breakout
PIN #
Name
Description
49
GND
Ground
50
GND
Ground
51
AES IN1 A
AES Input 1 Path 1 – Unbalanced
52
AES IN2 A
AES Input 2 Path 1 – Unbalanced
55
GND
Ground
56
GND
Ground
57
AES IN3 A
AES Input 3 Path 1 – Unbalanced
58
AES IN4 A
AES Input 4 Path 1 – Unbalanced
61
GND
Ground
62
GND
Ground
63
AES IN5 A
AES Input 5 Path 1 – Unbalanced
64
AES IN6 A
AES Input 6 Path 1 – Unbalanced
67
GND
Ground
68
GND
Ground
69
AES IN7 A
AES Input 7 Path 1 – Unbalanced
70
AES IN8 A
AES Input 8 Path 1 – Unbalanced
73
GND
Ground
74
GND
Ground
75
AES IN1 B
AES Input 1 Path 2 – Unbalanced
76
AES IN2 B
AES Input 2 Path 2 – Unbalanced
79
GND
Ground
80
GND
Ground
81
AES IN3 B
AES Input 3 Path 2 – Unbalanced
82
AES IN4 B
AES Input 4 Path 2 – Unbalanced
85
GND
Ground
86
GND
Ground
87
AES IN5 B
AES Input 5 Path 2 – Unbalanced
88
AES IN6 B
AES Input 6 Path 2 – Unbalanced
91
GND
Ground
92
GND
Ground
93
AES IN7 B
AES Input 7 Path 2 – Unbalanced
94
AES IN8 B
AES Input 8 Path 2 – Unbalanced

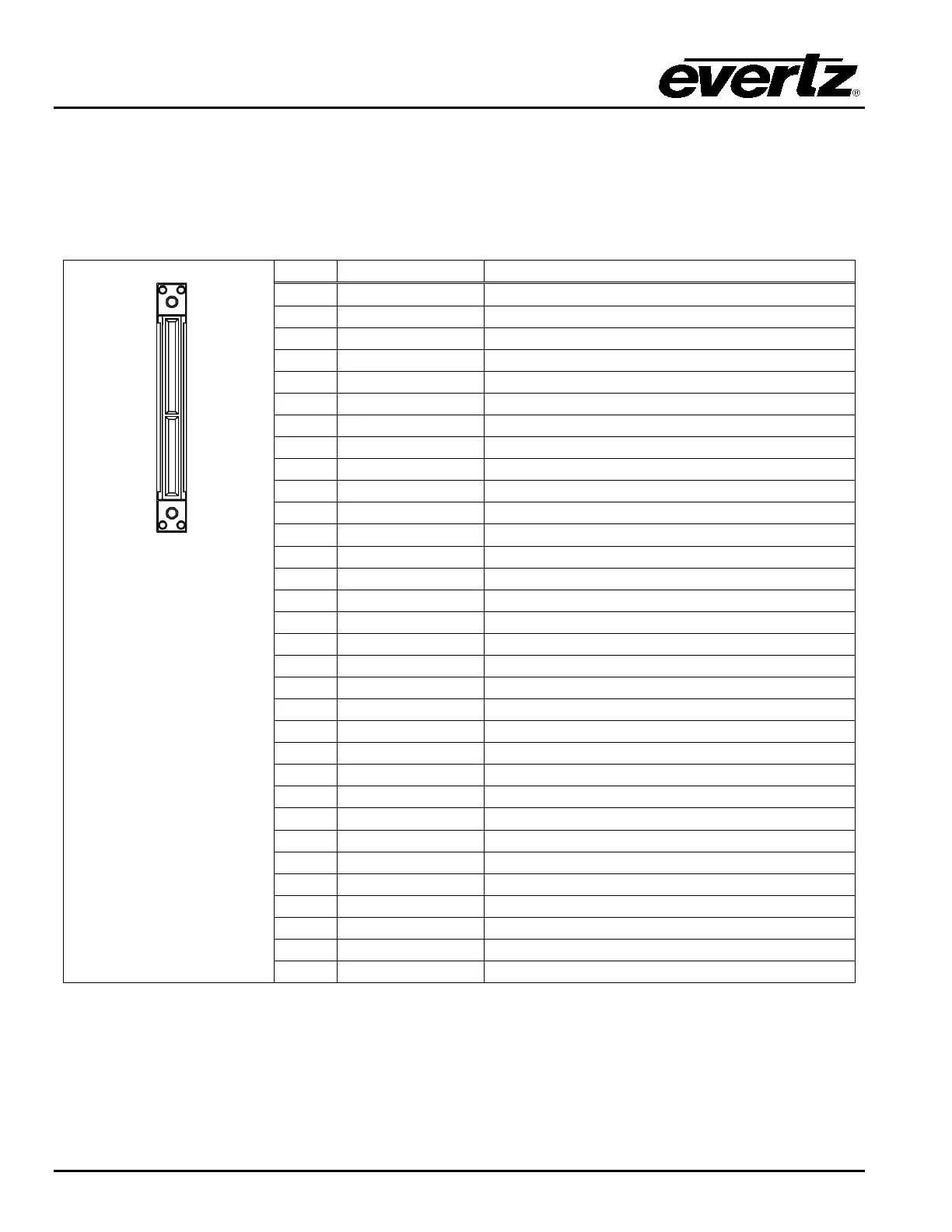

Table 2-3: AES Output Audio Connector Pin out
