7800/7700 MultiFrame Manual
7814 Series Dual HDTV Up/Down/Cross Converters
Revision 1.1.3 Page - 79

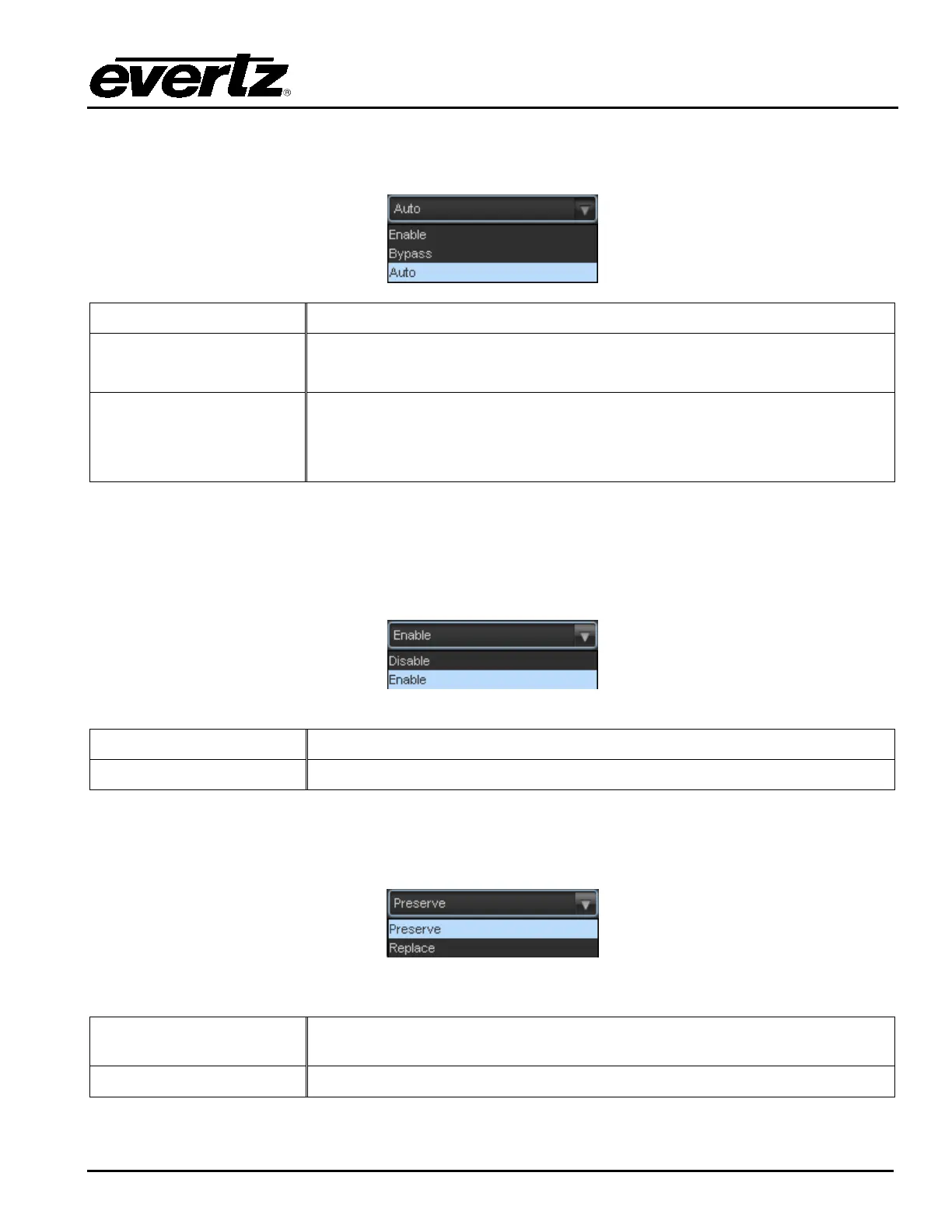

7.14.1.2. SRC Mode Configuration
This control allows the user to adjust the mode for the sample rate converters.
Enable
Enables the sample rate converters for PCM audio.
Bypass
Bypasses the sample rate converters.
This setting should be used for non-PCM audio.
Auto
The module will automatically detect PCM and non-
automatically turn on/off the SRCs as required. Note that all SRCs are set
to bypass as soon as a source of non-PCM audio is detected within any of
the 16 internally processed audio channels
7.14.1.3. Embedded Audio Groups
The module has four audio embedders that each inserts one group of audio into the outgoing serial digital
video. For the sake of brevity, only the control for Audio Embedder 1 is discussed in further detail. Each
embedder has an enable and disable function as shown below.
Disable
Audio embedding for group 1 will be disabled.
Enable
Audio embedding for group 1 will be enabled.
7.14.1.4. C-Bit Control
This control enables the user to set the C-Bit Control.
Using the C-Bit Control drop down menu, the user can select from the following options:
Preserve
This option preserves/passes the C-Bit settings from audio inputs to audio
outputs.
Replace:
This option replaces the C-Bit settings
